PCQ 163610 7033751
Dimensions 160 x 360 x 100.
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and ferritic stainless steel cover screws. Q-versions: Base with screws for mounting plate/DIN-rail. cover with PUR gasket and quick-locking cover screws.
- PC : IP66; IP67; IK07; IK08; EN 62208:2011. IEC 62208:2011,EN 61439-1:2011. IEC 61439-1:2011
Technical data
Product nr: 7033751
Description: Enclosure. PC
Remarks: Opaque cover (quick-locking)
Package: 2
Unit: Piece
EAN: 6418074059048
SSTL number: 3435436
Electric No. Denmark: 8212004155
Electric No. Sweden:
ETIM: EC000261 Enclosure/Switchgear cabinet (empty)
Height (mm): 160
Width (mm): 360
Depth (mm): 100
Height (inch) : 6.3
Width (inch) : 14.17
Depth (inch) : 3.94
Material: Polycarbonate
Gasket material : Polyurethane
Temperature °C (short term) : -40 … 120
Temperature °C (continuous) : -40 … 80
Temperature °F (short term) : -40 … 250
Temperature °F (continuous) : -40 … 175
Ingress Protection (EN 60529) : IP66; IP67;
Impact Resistance (EN 62262) : IK07; IK08;
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : 1
UV resistance : UL 508
Flammability Rating : UL 746C 5"
Glow Wire Test (IEC 60695) : 960 °C
NEMA Class :
/ /
Dimensional Drawings
CAD Files
Certificates and Declarations
Catalogues
Contact
Accessories
PCQ 163610

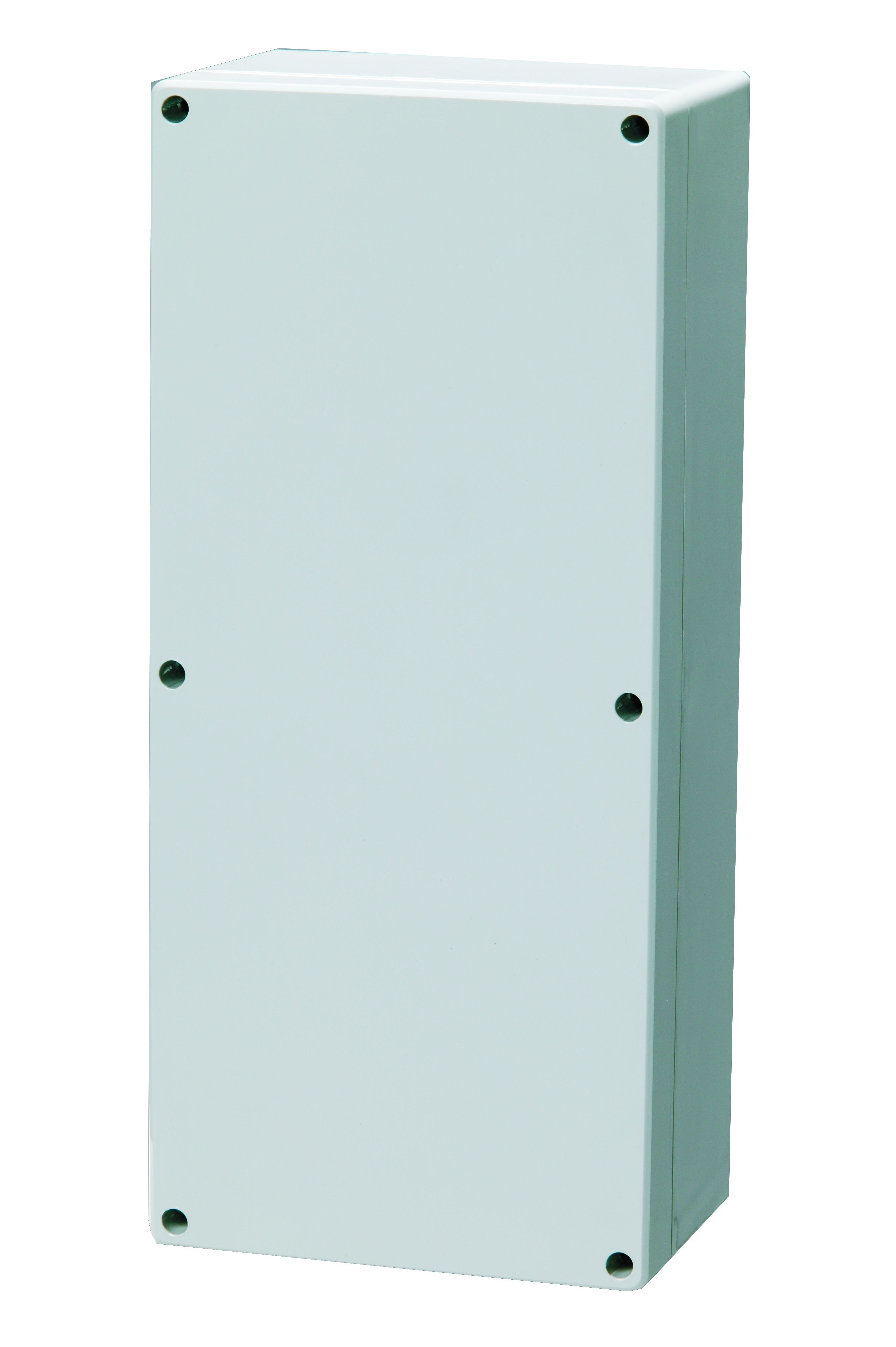

Sample image
Order symbol: PCQ 163610
Product nbr: 7033751
Description: Enclosure. PC
Remarks: Opaque cover (quick-locking)
EAN: 6418074059048
El. number:
- Finland: 3435436
- Denmark: 8212004155
- Sweden:
Including: Base with screws for mounting plate/DIN-rail. cover with PUR gasket and ferritic stainless steel cover screws. Q-versions: Base with screws for mounting plate/DIN-rail. cover with PUR gasket and quick-locking cover screws.
| Dimensions: | Height | Width | Depth |
|---|---|---|---|
| mm: | 160 | 360 | 100 |
| inch: | 6.3 | 14.17 | 3.94 |
| Materials: | |
|---|---|
| Material: | Polycarbonate |
| Base colour: | |
| Cover colour: | |
| Gasket material: | Polyurethane |
| Temperatures: | |
|---|---|
| Temperature °C (short term):: | -40 … 120 |
| Temperature °C (continuous): | -40 … 80 |
| Temperature °F (short term): | -40 … 250 |
| Temperature °F (continuous): | -40 … 175 |
| Accessories: | |
|---|---|
| TF 28037 | Mounting foot kit (4 pcs). for enclosures: |
| ARM 0615 | DIN-15 Mounting rail. for enclosures: (140 x 15 x 1) |
| TM 1636 | Back Panel. for enclosures: (318 x 146 x 1) |
| DH-3 | DIN-35 Mounting rail. for enclosures: (140 x 35 x 1) |
| TH A | Gray plastic hinges (2 pcs) |
| TRH 2036 | DIN-15 Mounting rail. for enclosures: (35 x 340 x 1) |
| Rating: | |
|---|---|
| Ingress protection (EN 60529): | IP66; IP67; |
| Impact Resistance (EN 62262): | IK07; IK08; |
| Electrical insulation: | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815): | 1 |
| UV resistance: | UL 508 |
| Flammability Rating: | UL 746C 5" |
| Glow Wire Test (IEC 695-2-1) °C: | 960 °C |
| NEMA Class | |
| Certificates: | |
|---|---|
| SGSFimko_EURONORD | |
