Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
PC 163610 7032750
Dimensions 160 x 360 x 100
Dimensions 6.3 x 14.17 x 3.94
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
- PC : IP66; IP67; IK07; IK08
Technical data
Product nr : 7032750
Description : Enclosure, PC
Remarks : Grey cover
Package : 2
Unit : Piece
EAN : 6418074058492
SSTL number : 3435378
Electric No. Denmark : 8212003169
Electric No. Sweden : 2536133
ETIM : EC000261
Height (mm) : 160
Width (mm) : 360
Depth (mm) : 100
Height (inch) : 6.3
Width (inch) : 14.17
Depth (inch) : 3.94
Material : Polycarbonate
Base colour : RAL_7035
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Standards EN/IEC 61439-1:2015
Ingress Protection (EN 60529): IP66IP67
Impact Resistance (EN 62262): IK07IK08
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 60695): 960C
Euronord / EURONORD 1636 / PC 163610
Dimensional Drawings
CAD Files
Please note, that we need you permission in order for you to view the CAD files.
Certificates and Declarations
Catalogues
Contact
Accessories
PC 163610

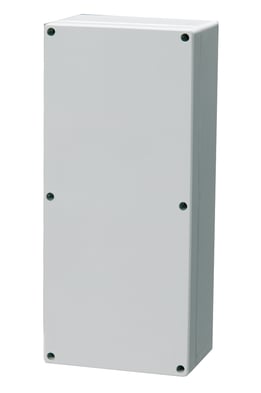

Sample image
Order symbol : PC 163610
Product nr : 7032750
Description : Enclosure, PC
Remarks : Grey cover
EAN : 6418074058492
El. number :
- Finland : 3435378
- Denmark : 8212003169
- Sweden : 2536133
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
Dimensions : | Height | Width | Depth |
---|---|---|---|
mm : | 160 | 360 | 100 |
inch : | 6.3 | 14.17 | 3.94 |
Materials : | |
---|---|
Material : | Polycarbonate |
Base colour : | RAL_7035 |
Cover colour : | RAL 7035 -light grey |
Gasket material : | Polyurethane |
Temperatures : | |
---|---|
Temperature °C (continuous) : | -40 … 80 |
Temperature °F (continuous) : | -40 … 175 |
Accessories : | |
---|---|
TF 28037 | Wall fastening lug (4 pcs), for enclosures: |
ARM 0615 |
DIN-15 Mounting rail, for enclosures:
(140 x 15 x 5.5) |
TM 1636 |
Mounting plate, for enclosures:
(318 x 146 x 1.5) |
DH-3 |
DIN-35 Mounting rail, for enclosures:
(140 x 35 x 7.5) |
TH A |
Grey plastic hinges (2 pcs)
(30 x 20 x 12) |
TRH 2036 |
DIN-35 Mounting rail, for enclosures:
(35 x 340 x 1.5) |
Ratings : | |
---|---|
Ingress protection (EN 60529): | IP66; IP67; |
Impact Resistance (EN 62262): | IK07; IK08; |
electrical_insulation : | Totally insulated |
Halogen free (DIN/VDE 0472, Part 815) : | Yes |
UV resistance : | UL 746C |
Flammability Rating : | UL 94 V0 |
Glow Wire Test (IEC 695-2-1) °C : | 960C |
Certificates : | |
---|---|
SGSFimko_EURONORD |
