PCT 162513 7022861
UL Code : 7032861
UL Name : UL PCT 162513
Dimensions 160 x 250 x 125.

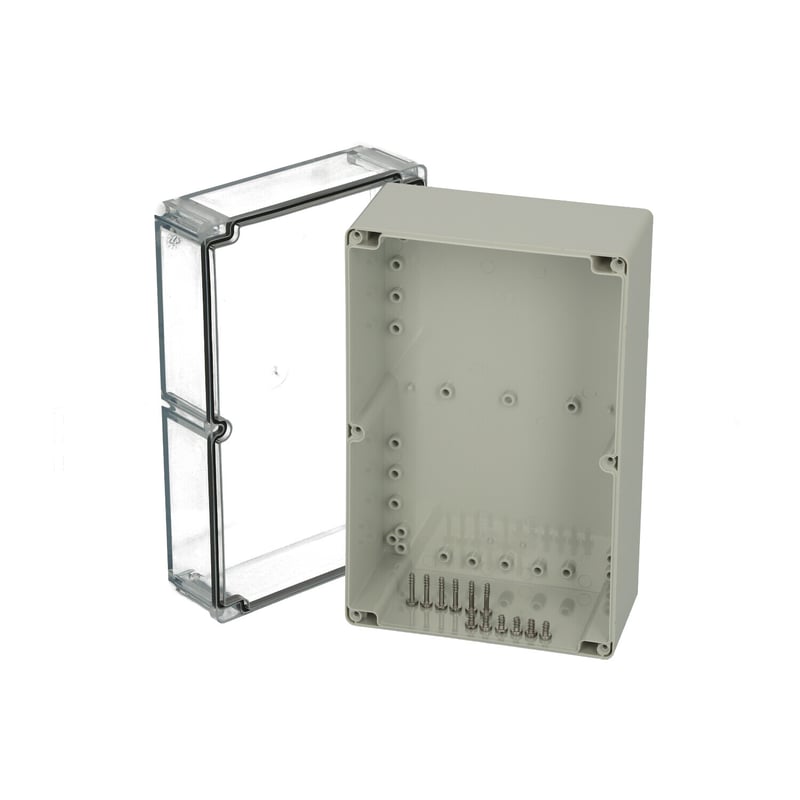

Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
- PC : IP66; IP67; IK07; IK08; EN 62208:2011. IEC 62208:2011,EN 61439-1:2011. IEC 61439-1:2011
Technical data
Product nr: 7022861
Description: Enclosure. PC
Remarks: Clear transparent cover
Package: 4
Unit: Piece
EAN: 6418074003812
SSTL number: 3423542
Electric No. Denmark: 8212002979
Electric No. Sweden:
ETIM: EC000261 Enclosure/Switchgear cabinet (empty)
Height (mm): 160
Width (mm): 250
Depth (mm): 125
Height (inch) : 6.3
Width (inch) : 9.84
Depth (inch) : 4.92
Material: Polycarbonate
Base colour : RAL 7035 -light grey
Cover colour : Clear transparent
Gasket material : Polyurethane
Temperature °C (short term) : -40 … 120
Temperature °C (continuous) : -40 … 80
Temperature °F (short term) : -40 … 250
Temperature °F (continuous) : -40 … 175
Ingress Protection (EN 60529) : IP66; IP67;
Impact Resistance (EN 62262) : IK07; IK08;
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : 1
UV resistance : UL 508
Flammability Rating : UL 746C 5"
Glow Wire Test (IEC 60695) : 960 °C
NEMA Class :
/ /
Dimensional Drawings
CAD Files
Certificates and Declarations
Catalogues
Contact
Accessories

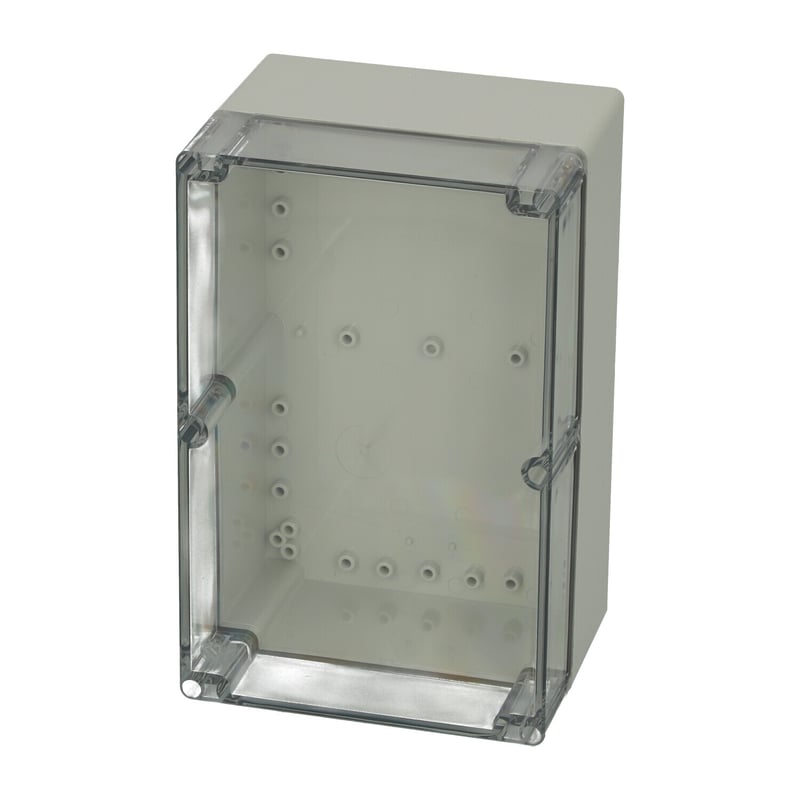

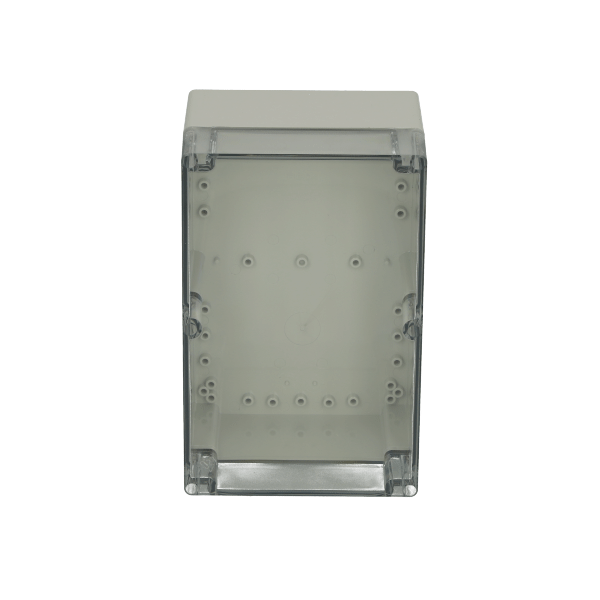

PCT 162513
Sample image
Order symbol: PCT 162513
Product nbr: 7022861
UL Code: 7032861
UL Name: UL PCT 162513
Description: Enclosure. PC
Remarks: Clear transparent cover
EAN: 6418074003812
El. number:
- Finland: 3423542
- Denmark: 8212002979
- Sweden:
Including: Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
| Dimensions: | Height | Width | Depth |
|---|---|---|---|
| mm: | 160 | 250 | 125 |
| inch: | 6.3 | 9.84 | 4.92 |
| Materials: | |
|---|---|
| Material: | Polycarbonate |
| Base colour: | RAL 7035 -light grey |
| Cover colour: | Clear transparent |
| Gasket material: | Polyurethane |
| Temperatures: | |
|---|---|
| Temperature °C (short term):: | -40 … 120 |
| Temperature °C (continuous): | -40 … 80 |
| Temperature °F (short term): | -40 … 250 |
| Temperature °F (continuous): | -40 … 175 |
| Accessories: | |
|---|---|
| TM 1625 | Back Panel. for enclosures: (151 x 214 x 1) |
| TRH 24 | DIN-15 Mounting rail. for enclosures: (226 x 35 x 1) |
| TF 28037 | Mounting foot kit (4 pcs). for enclosures: |
| TRH 1216 | DIN-15 Mounting rail. for enclosures: (146 x 35 x 1) |
| TRM 0816 | DIN-15 Mounting rail. for enclosures: (146 x 15 x 1) |
| TH A | Gray plastic hinges (2 pcs) |
| Rating: | |
|---|---|
| Ingress protection (EN 60529): | IP66; IP67; |
| Impact Resistance (EN 62262): | IK07; IK08; |
| Electrical insulation: | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815): | 1 |
| UV resistance: | UL 508 |
| Flammability Rating: | UL 746C 5" |
| Glow Wire Test (IEC 695-2-1) °C: | 960 °C |
| NEMA Class | |
| Certificates: | |
|---|---|
| SGSFimko_EURONORD | |
