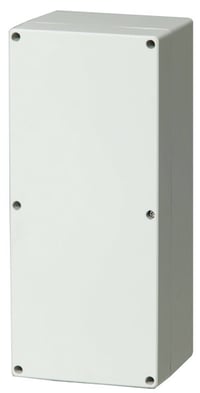

PC 153412 7032710
Dimensions 150 x 340 x 120
Dimensions 5.91 x 13.39 x 4.72
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
- PC : IP66; IP67; IK07; IK08
Technical data
Product nr : 7032710
Description : Enclosure, PC
Remarks : Grey cover
Package : 4
Unit : Piece
EAN : 6418074058454
SSTL number : 3435370
Electric No. Denmark : 8212004375
Electric No. Sweden : 2536142
ETIM : EC000261 Enclosure/Switchgear cabinet (empty)
Height (mm) : 150
Width (mm) : 340
Depth (mm) : 120
Height (inch) : 5.91
Width (inch) : 13.39
Depth (inch) : 4.72
Material : Polycarbonate
Base colour : RAL 7035 -light grey
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperature °C (short term) : -40 … 120
Temperature °C (continuous) : -40 … 80
Temperature °F (short term) : -40 … 250
Temperature °F (continuous) : -40 … 175
Standards EN 62208:2011. IEC 62208:2011,EN 61439-1:2011. IEC 61439-1:2011
Ingress Protection (EN 60529): IP66IP67
Impact Resistance (EN 62262): IK07IK08
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 508
Flammability Rating : UL 746C 5"
Glow Wire Test (IEC 60695): 960 °C
/ /
Dimensional Drawings
CAD Files
Please note, that we need your permission in order for you to view the CAD files.
Certificates and Declarations
Catalogues
Contact
PC 153412

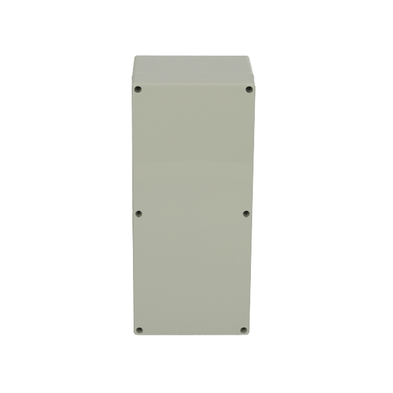

Sample image
Order symbol : PC 153412
Product nr : 7032710
Description : Enclosure, PC
Remarks : Grey cover
EAN : 6418074058454
El. number :
- Finland : 3435370
- Denmark : 8212004375
- Sweden : 2536142
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 150 | 340 | 120 |
| inch : | 5.91 | 13.39 | 4.72 |
| Materials : | |
|---|---|
| Material : | Polycarbonate |
| Base colour : | RAL 7035 -light grey |
| Cover colour : | RAL 7035 -light grey |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (short term) : | -40 … 120 |
| Temperature °C (continuous) : | -40 … 80 |
| Temperature °F (short term) : | -40 … 250 |
| Temperature °F (continuous) : | -40 … 175 |
| Accessories : | |
|---|---|
| TRH 34 |
DIN-35 Mounting rail, for enclosures:
(307 x 35 x 1) |
| TF 28037 | Wall fastening lug (4 pcs), for enclosures: |
| TRH 15 |
DIN-35 Mounting rail, for enclosures:
(122 x 35 x 1) |
| TM 1534 |
Mounting plate, for enclosures:
(303 x 136 x 1) |
| TH A | Grey plastic hinges (2 pcs) |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP66; IP67; |
| Impact Resistance (EN 62262): | IK07; IK08; |
| electrical_insulation : | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | UL 508 |
| Flammability Rating : | UL 746C 5" |
| Glow Wire Test (IEC 695-2-1) °C : | 960 °C |
| Certificates : | |
|---|---|
| SGSFimko_EURONORD | |
