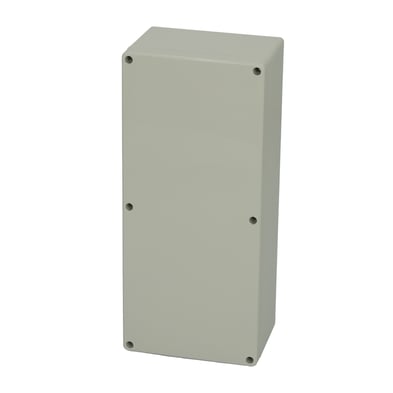

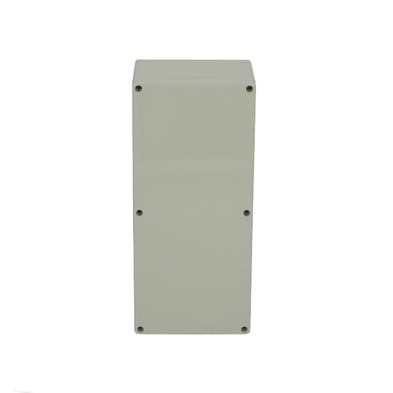

Euronord / EURONORD 1534 / PC 153410

PC 153410 7032700

UL Code : 7042700

UL Name : UL PC 153410

Dimensions 150 x 340 x 100.

Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.

  • PC : IP66; IP67; IK07; IK08; EN 62208:2011. IEC 62208:2011,EN 61439-1:2011. IEC 61439-1:2011
Technical data
Product:

Product nr : 7032700

Description : Enclosure, PC

Remarks : Grey cover

Package : 4

Unit : Piece

EAN : 6418074058447

SSTL number : 3435368

Electric No. Denmark : 8212004359

Electric No. Sweden : 2536141

ETIM : EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions :

Height (mm) : 150

Width (mm) : 340

Depth (mm) : 100

Height (inch) : 5.91

Width (inch) : 13.39

Depth (inch) : 3.94

Materials :

Material : Polycarbonate

Base colour : RAL 7035 -light grey

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C (short term) : -40 … 120

Temperature °C (continuous) : -40 … 80

Temperature °F (short term) : -40 … 250

Temperature °F (continuous) : -40 … 175

Ratings :

Ingress Protection (EN 60529): IP66; IP67;

Impact Resistance (EN 62262): IK07; IK08;

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : 1

UV resistance : UL 508

Flammability Rating : UL 746C 5"

Glow Wire Test (IEC 60695): 960 °C

NEMA Class :

Product is connected to following catalogues :

Euronord / EURONORD 1534 / PC 153410

PC 153410

Fibox

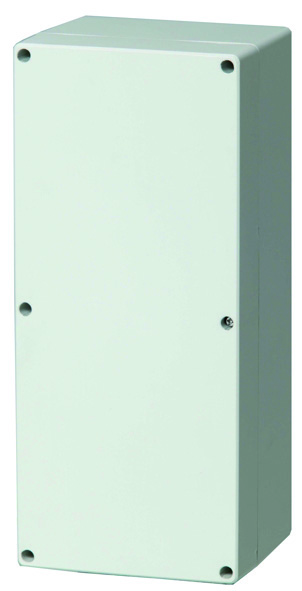

PC_153412

Sample image

Order symbol : PC 153410

Product nr : 7032700

UL Code : 7042700

UL Name : UL PC 153410

Description : Enclosure, PC

Remarks : Grey cover

EAN : 6418074058447

El. number :

  • Finland : 3435368
  • Denmark : 8212004359
  • Sweden : 2536141

Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.

EURO153410-12
Dimensions : Height Width Depth
mm : 150 340 100
inch : 5.91 13.39 3.94
Materials :
Material : Polycarbonate
Base colour : RAL 7035 -light grey
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperatures :
Temperature °C (short term) : -40 … 120
Temperature °C (continuous) : -40 … 80
Temperature °F (short term) : -40 … 250
Temperature °F (continuous) : -40 … 175
Accessories :
TRH 34 DIN-35 Mounting rail, for enclosures:
(307 x 35 x 1)
TF 28037 Wall fastening lug (4 pcs), for enclosures:
TRH 15 DIN-35 Mounting rail, for enclosures:
(122 x 35 x 1)
TM 1534 Mounting plate, for enclosures:
(303 x 136 x 1)
TH A Grey plastic hinges (2 pcs)
Rating :
Ingress protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK07; IK08;
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance : UL 508
Flammability Rating : UL 746C 5"
Glow Wire Test (IEC 695-2-1) °C : 960 °C
NEMA Class
Certificates :
SGSFimko_EURONORD
