Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.

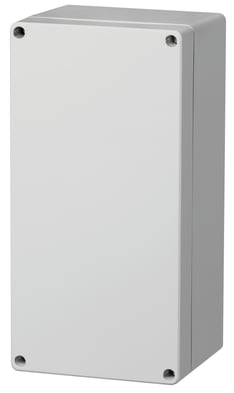

PC 122410 7032780
Dimensions 124 x 244 x 102
Dimensions 4.88 x 9.61 x 4.02
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
- PC : IP66; IP67; IK07; IK08
Technical data
Product nr : 7032780
Description : Enclosure, PC
Remarks : Grey cover
Package : 4
Unit : Piece
EAN : 6418074058430
SSTL number : 3435366
Electric No. Denmark : 8212002908
Electric No. Sweden : 2536140
ETIM : EC000261
Height (mm) : 124
Width (mm) : 244
Depth (mm) : 102
Height (inch) : 4.88
Width (inch) : 9.61
Depth (inch) : 4.02
Material : Polycarbonate
Base colour : RAL_7035
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Standards EN_62208:2011__IEC_62208:2011, EN_61439-1:2011__IEC_61439-1:2011
Ingress Protection (EN 60529): IP66IP67
Impact Resistance (EN 62262): IK07IK08
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 60695): 960C
Euronord / EURONORD 1224 / PC 122410
Dimensional Drawings
CAD Files
Please note, that we need you permission in order for you to view the CAD files.
Certificates and Declarations
Catalogues
Contact
Accessories
PC 122410

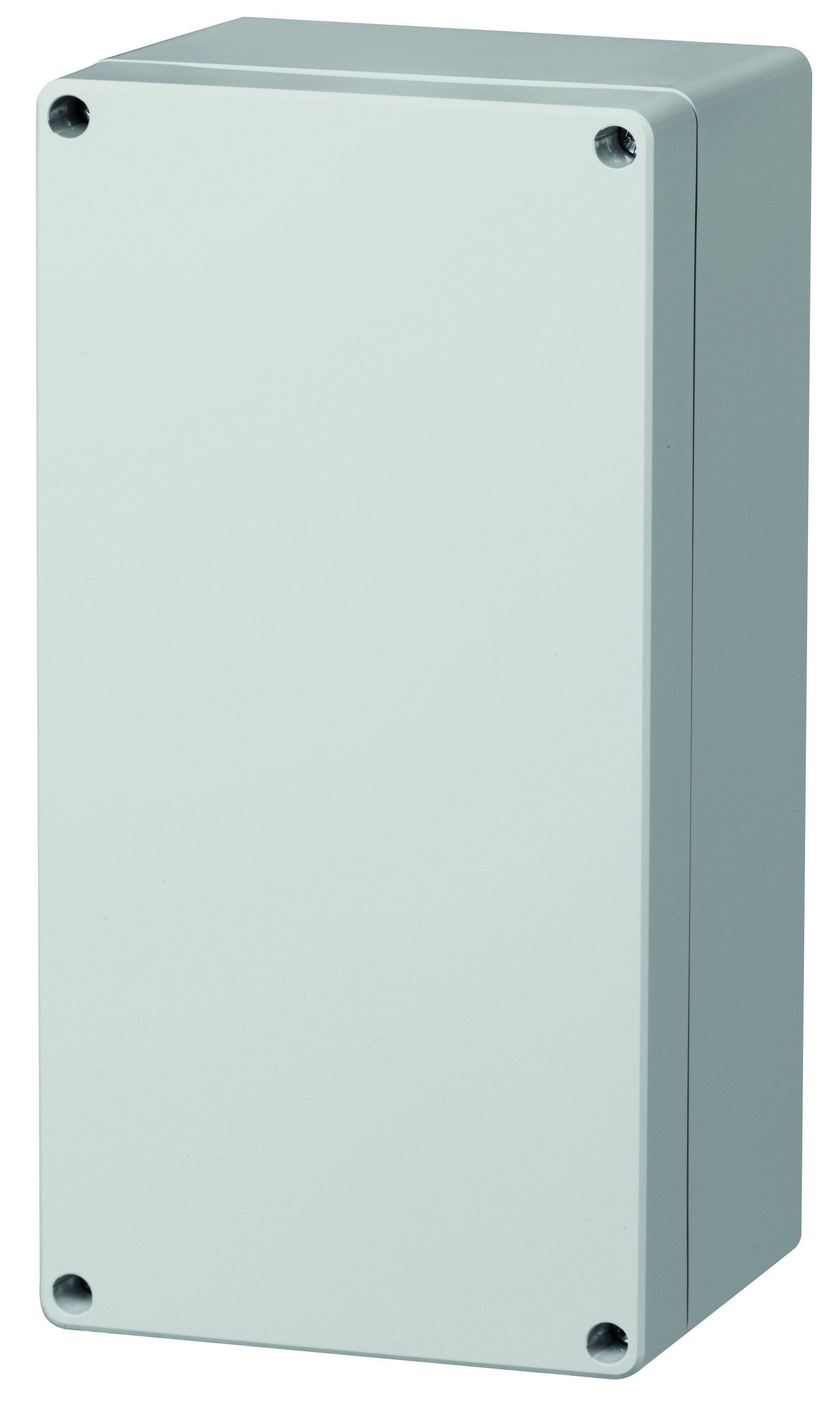

Sample image
Order symbol : PC 122410
Product nr : 7032780
Description : Enclosure, PC
Remarks : Grey cover
EAN : 6418074058430
El. number :
- Finland : 3435366
- Denmark : 8212002908
- Sweden : 2536140
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
Dimensions : | Height | Width | Depth |
---|---|---|---|
mm : | 124 | 244 | 102 |
inch : | 4.88 | 9.61 | 4.02 |
Materials : | |
---|---|
Material : | Polycarbonate |
Base colour : | RAL_7035 |
Cover colour : | RAL 7035 -light grey |
Gasket material : | Polyurethane |
Temperatures : | |
---|---|
Temperature °C (continuous) : | -40 … 80 |
Temperature °F (continuous) : | -40 … 175 |
Accessories : | |
---|---|
TRH 1212 |
DIN-35 Mounting rail, for enclosures:
(110 x 35 x 7.5) |
TRH 24 |
DIN-35 Mounting rail, for enclosures:
(226 x 35 x 7.5) |
TRM 0812 |
DIN-15 Mounting rail, for enclosures:
(106 x 15 x 5.5) |
TF 28037 | Wall fastening lug (4 pcs), for enclosures: |
MIN 20 |
DIN-15 Mounting rail, for enclosures:
(225 x 15 x 1) |
TH A |
Grey plastic hinges (2 pcs)
(30 x 20 x 12) |
TM 1224 |
Mounting plate, for enclosures:
(111 x 216 x 1.5) |
Ratings : | |
---|---|
Ingress protection (EN 60529): | IP66; IP67; |
Impact Resistance (EN 62262): | IK07; IK08; |
electrical_insulation : | Totally insulated |
Halogen free (DIN/VDE 0472, Part 815) : | Yes |
UV resistance : | UL 746C |
Flammability Rating : | UL 94 V0 |
Glow Wire Test (IEC 695-2-1) °C : | 960C |
Certificates : | |
---|---|
SGSFimko_EURONORD |
