Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
![PCT 122009 product image 1](https://www.fibox.com/hs-fs/hubfs/assets/7022771_PCT_122009_1_72dpi.jpg?length=393&name=7022771_PCT_122009_1_72dpi.jpg)
![PCT 122009 product image 2](https://www.fibox.com/hs-fs/hubfs/assets/7022771_PCT_122009_2_72dpi.jpg?length=393&name=7022771_PCT_122009_2_72dpi.jpg)
![PCT 122009 product image 1](https://www.fibox.com/hs-fs/hubfs/assets/7022771_PCT_122009%20360_ANIMA_SMALL.gif?length=393&name=7022771_PCT_122009%20360_ANIMA_SMALL.gif)
![PCT 122009 thumbnail image 1](https://www.fibox.com/hs-fs/hubfs/assets/7022771_PCT_122009_1_72dpi.jpg?length=52&name=7022771_PCT_122009_1_72dpi.jpg)
![PCT 122009 thumbnail image 2](https://www.fibox.com/hs-fs/hubfs/assets/7022771_PCT_122009_2_72dpi.jpg?length=52&name=7022771_PCT_122009_2_72dpi.jpg)
![PCT 122009 thumbnail image 1](https://www.fibox.com/hs-fs/hubfs/assets/7022771_PCT_122009%20360_ANIMA_SMALL.gif?length=52&name=7022771_PCT_122009%20360_ANIMA_SMALL.gif)

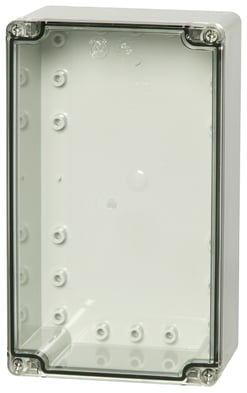

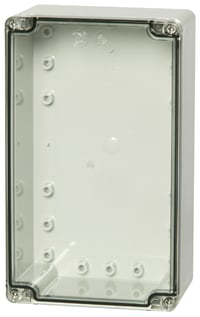

Euronord / EURONORD 1220 / PCT 122009
PCT 122009 7022771
Dimensions 120 x 200 x 90
Dimensions 4.72 x 7.87 x 3.54
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
- PC : IP66; IP67; IK07; IK08
Technical data
Product nr : 7022771
Description : Enclosure, PC
Remarks : Clear transparent cover
Package : 4
Unit : Piece
EAN : 6418074058638
SSTL number : 3435406
Electric No. Denmark : 8212003156
ETIM : EC000261
Height (mm) : 120
Width (mm) : 200
Depth (mm) : 90
Height (inch) : 4.72
Width (inch) : 7.87
Depth (inch) : 3.54
Material : Polycarbonate
Base colour : RAL_7035
Cover colour : Clear transparent
Gasket material : Polyurethane
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Standards EN/IEC 61439-1:2015
Ingress Protection (EN 60529): IP66IP67
Impact Resistance (EN 62262): IK07IK08
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 60695): 960C
Euronord / EURONORD 1220 / PCT 122009
Dimensional Drawings
CAD Files
Please note, that we need you permission in order for you to view the CAD files.
Certificates and Declarations
Catalogues
Contact
PCT 122009
![Fibox Fibox](https://www.fibox.com/hs-fs/hubfs/fibox-2021/logo/eclosing/png/fibox_enclosing-logo-2021-rgb-07.png?width=250&name=fibox_enclosing-logo-2021-rgb-07.png)
![7022771_PCT_122009_1_72dpi](https://www.fibox.com/hs-fs/hubfs/assets/7022771_PCT_122009_1_72dpi.jpg?width=200&name=7022771_PCT_122009_1_72dpi.jpg)
Sample image
Order symbol : PCT 122009
Product nr : 7022771
Description : Enclosure, PC
Remarks : Clear transparent cover
EAN : 6418074058638
El. number :
- Finland : 3435406
- Denmark : 8212003156
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
![EURO122008-09](https://www.fibox.com/hubfs/assets/EURO122008-09.gif)
Dimensions : | Height | Width | Depth |
---|---|---|---|
mm : | 120 | 200 | 90 |
inch : | 4.72 | 7.87 | 3.54 |
Materials : | |
---|---|
Material : | Polycarbonate |
Base colour : | RAL_7035 |
Cover colour : | Clear transparent |
Gasket material : | Polyurethane |
Temperatures : | |
---|---|
Temperature °C (continuous) : | -40 … 80 |
Temperature °F (continuous) : | -40 … 175 |
Accessories : | |
---|---|
MIV 10 |
DIN-35 Mounting rail, for enclosures:
(100 x 35 x 7) |
TF 28037 | Wall fastening lug (4 pcs), for enclosures: |
TRH 1220 |
DIN-35 Mounting rail, for enclosures:
(186 x 35 x 7) |
TM 1220 |
Mounting plate, for enclosures:
(111 x 174 x 1) |
TH A | Grey plastic hinges (2 pcs) |
Ratings : | |
---|---|
Ingress protection (EN 60529): | IP66; IP67; |
Impact Resistance (EN 62262): | IK07; IK08; |
electrical_insulation : | Totally insulated |
Halogen free (DIN/VDE 0472, Part 815) : | Yes |
UV resistance : | UL 746C |
Flammability Rating : | UL 94 V0 |
Glow Wire Test (IEC 695-2-1) °C : | 960C |
Certificates : | |
---|---|
SGSFimko_EURONORD |
