Euronord / EURONORD 0816 / PC 081607

PC 081607 7032620

UL Code : 7042620

UL Name : UL PC 081607

Dimensions 80 x 160 x 65.

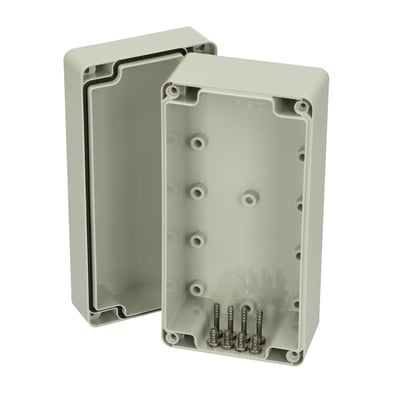

Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.

  • PC : IP66; IP67; IK07; IK08; EN 62208:2011. IEC 62208:2011,EN 61439-1:2011. IEC 61439-1:2011
Technical data
Product:

Product nr : 7032620

Description : Enclosure, PC

Remarks : Grey cover

Package : 8

Unit : Piece

EAN : 6418074003638

SSTL number : 3423430

Electric No. Denmark : 8212002665

Electric No. Sweden : 2536113

ETIM : EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions :

Height (mm) : 80

Width (mm) : 160

Depth (mm) : 65

Height (inch) : 3.15

Width (inch) : 6.3

Depth (inch) : 2.56

Materials :

Material : Polycarbonate

Base colour : RAL 7035 -light grey

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C (short term) : -40 … 120

Temperature °C (continuous) : -40 … 80

Temperature °F (short term) : -40 … 250

Temperature °F (continuous) : -40 … 175

Ratings :

Ingress Protection (EN 60529): IP66; IP67;

Impact Resistance (EN 62262): IK07; IK08;

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : 1

UV resistance : UL 508

Flammability Rating : UL 746C 5"

Glow Wire Test (IEC 60695): 960 °C

NEMA Class :

Product is connected to following catalogues :

Euronord / EURONORD 0816 / PC 081607

PC 081607

Fibox

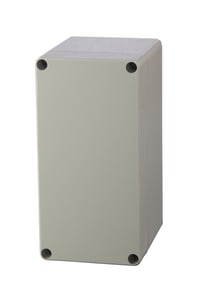

PC_081610

Sample image

Order symbol : PC 081607

Product nr : 7032620

UL Code : 7042620

UL Name : UL PC 081607

Description : Enclosure, PC

Remarks : Grey cover

EAN : 6418074003638

El. number :

  • Finland : 3423430
  • Denmark : 8212002665
  • Sweden : 2536113

Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.

EURO081606-10
Dimensions : Height Width Depth
mm : 80 160 65
inch : 3.15 6.3 2.56
Materials :
Material : Polycarbonate
Base colour : RAL 7035 -light grey
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperatures :
Temperature °C (short term) : -40 … 120
Temperature °C (continuous) : -40 … 80
Temperature °F (short term) : -40 … 250
Temperature °F (continuous) : -40 … 175
Accessories :
TF 28037 Wall fastening lug (4 pcs), for enclosures:
TRH 1216 DIN-35 Mounting rail, for enclosures:
(146 x 35 x 1)
TRM 0816 DIN-15 Mounting rail, for enclosures:
(146 x 15 x 1)
TM 0816 Mounting plate, for enclosures:
(71 x 134 x 1)
TH A Grey plastic hinges (2 pcs)
TRM 0808 DIN-15 Mounting rail, for enclosures:
(68 x 15 x 1)
Rating :
Ingress protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK07; IK08;
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance : UL 508
Flammability Rating : UL 746C 5"
Glow Wire Test (IEC 695-2-1) °C : 960 °C
NEMA Class
Certificates :
SGSFimko_EURONORD
