Euronord / EURONORD 0812 / AB 081209H
AB 081209H 7083610
Dimensions 80 x 120 x 90.
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
- PC : IP66; IP67; IK07; EN 62208:2011. IEC 62208:2011,EN 61439-1:2011. IEC 61439-1:2011
Technical data
Product nr : 7083610
Description : Enclosure, ABS
Remarks : Grey cover
Package : 8
Unit : Piece
EAN : 6418074058782
SSTL number : 3435468
Electric No. Denmark : 8212003334
Electric No. Sweden : 7083610
ETIM : EC000261 Enclosure/Switchgear cabinet (empty)
Height (mm) : 80
Width (mm) : 120
Depth (mm) : 90
Height (inch) : 3.15
Width (inch) : 4.72
Depth (inch) : 3.54
Material : ABS
Base colour : RAL 7035 -light grey
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperature °C (short term) : -40 … 80
Temperature °C (continuous) : -40 … 60
Temperature °F (short term) : -40 … 175
Temperature °F (continuous) : -40 … 140
Ingress Protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK07;
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : 1
UV resistance : -
Flammability Rating : UL 94 HB
Glow Wire Test (IEC 60695): 650 °C
NEMA Class :
Euronord / EURONORD 0812 / AB 081209H
Dimensional Drawings
CAD Files
Please note, that we need your permission in order for you to view the CAD files.
Certificates and Declarations
Catalogues
Contact
AB 081209H

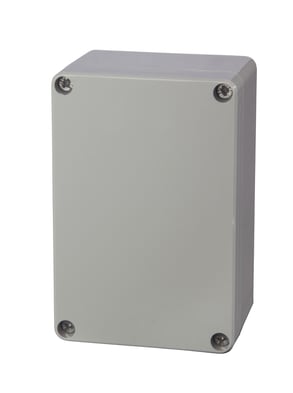

Sample image
Order symbol : AB 081209H
Product nr : 7083610
Description : Enclosure, ABS
Remarks : Grey cover
EAN : 6418074058782
El. number :
- Finland : 3435468
- Denmark : 8212003334
- Sweden : 7083610
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.

Dimensions : | Height | Width | Depth |
---|---|---|---|
mm : | 80 | 120 | 90 |
inch : | 3.15 | 4.72 | 3.54 |
Materials : | |
---|---|
Material : | ABS |
Base colour : | RAL 7035 -light grey |
Cover colour : | RAL 7035 -light grey |
Gasket material : | Polyurethane |
Temperatures : | |
---|---|
Temperature °C (short term) : | -40 … 80 |
Temperature °C (continuous) : | -40 … 60 |
Temperature °F (short term) : | -40 … 175 |
Temperature °F (continuous) : | -40 … 140 |
Accessories : | |
---|---|
TRM 0812 | DIN-15 Mounting rail, for enclosures: (106 x 15 x 1) |
TF 28037 | Wall fastening lug (4 pcs), for enclosures: |
TM 0812 | Mounting plate, for enclosures: (71 x 94 x 1) |
ARH 12 | DIN-35 Mounting rail, for enclosures: (105 x 35 x 1) |
TH A | Grey plastic hinges (2 pcs) |
TRM 0808 | DIN-15 Mounting rail, for enclosures: (68 x 15 x 1) |
Rating : | |
---|---|
Ingress protection (EN 60529): | IP66; IP67; |
Impact Resistance (EN 62262): | IK07; |
Electrical insulation : | Totally insulated |
Halogen free (DIN/VDE 0472, Part 815): | 1 |
UV resistance : | - |
Flammability Rating : | UL 94 HB |
Glow Wire Test (IEC 695-2-1) °C : | 650 °C |
NEMA Class |
Certificates : | |
---|---|
SGSFimko_EURONORD |
