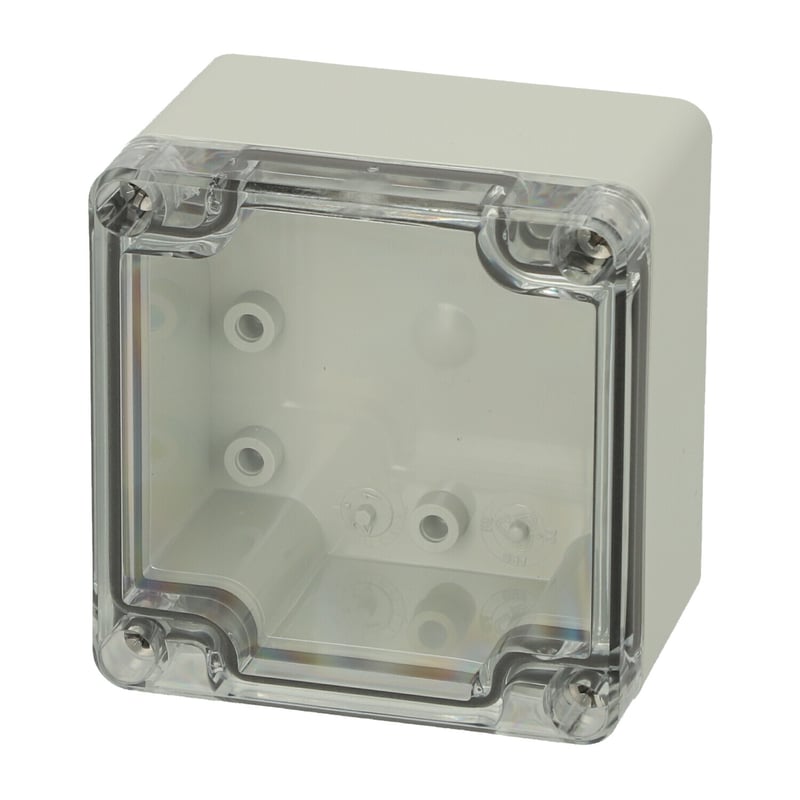

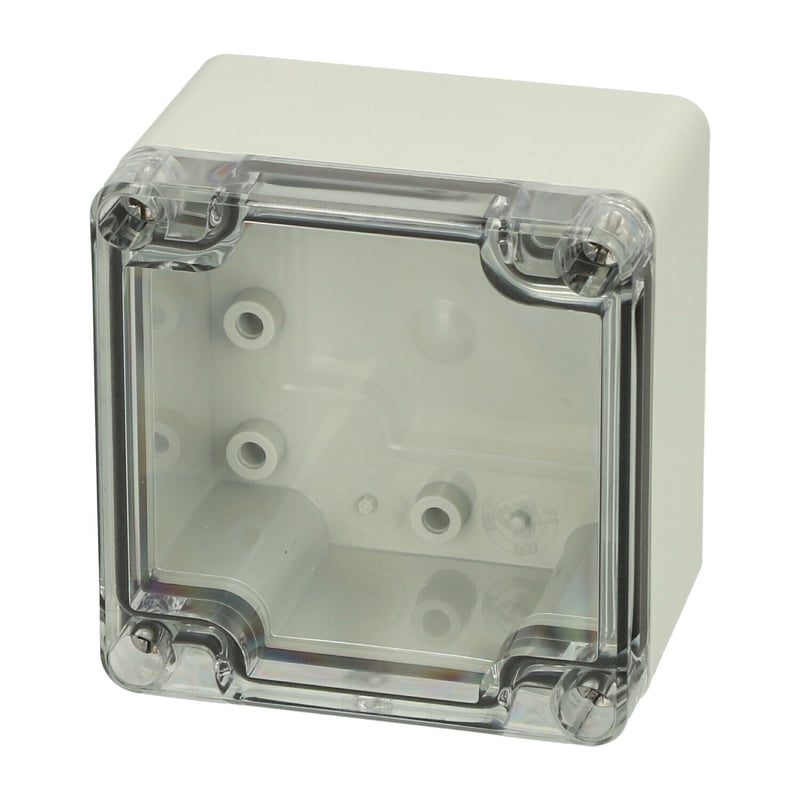

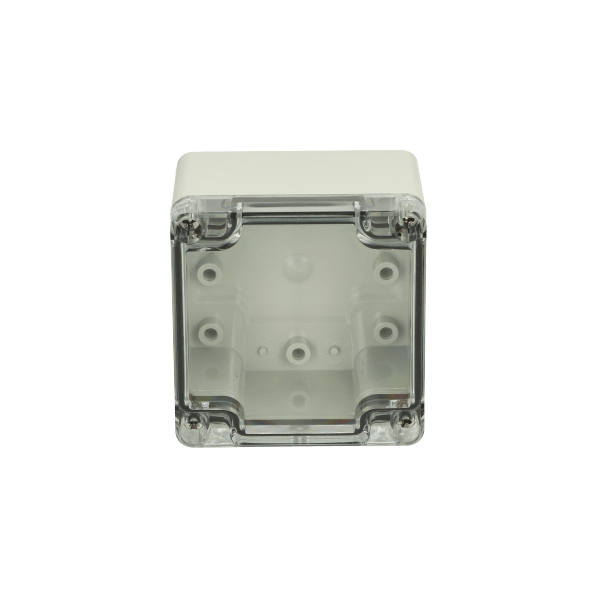

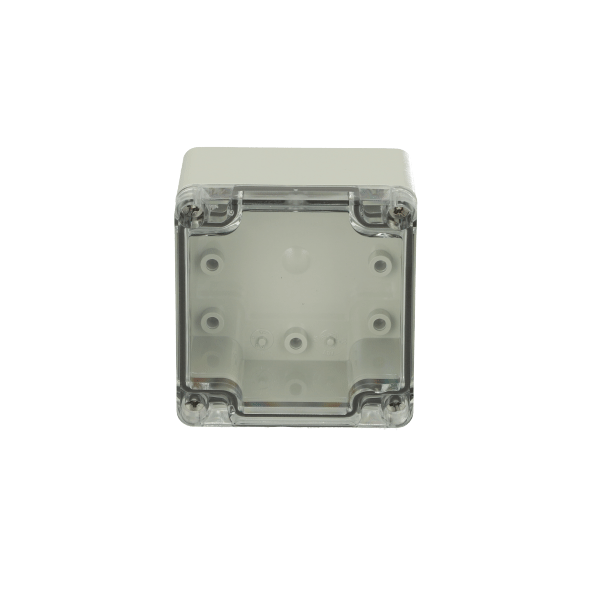

Euronord / EURONORD 0808 / PCT 080806

PCT 080806 7022541

Dimensions 80 x 82 x 55.

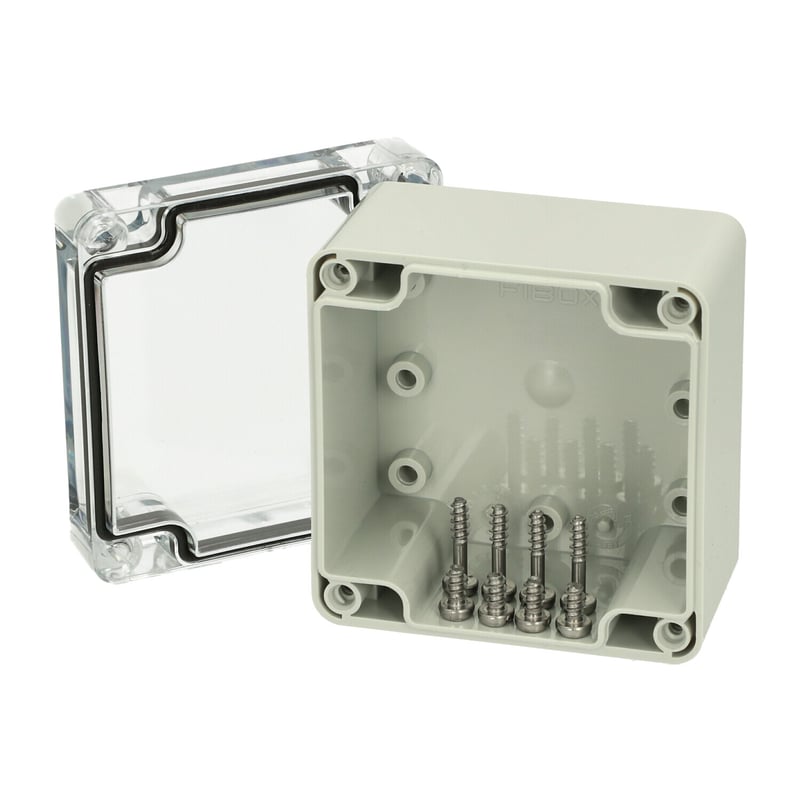

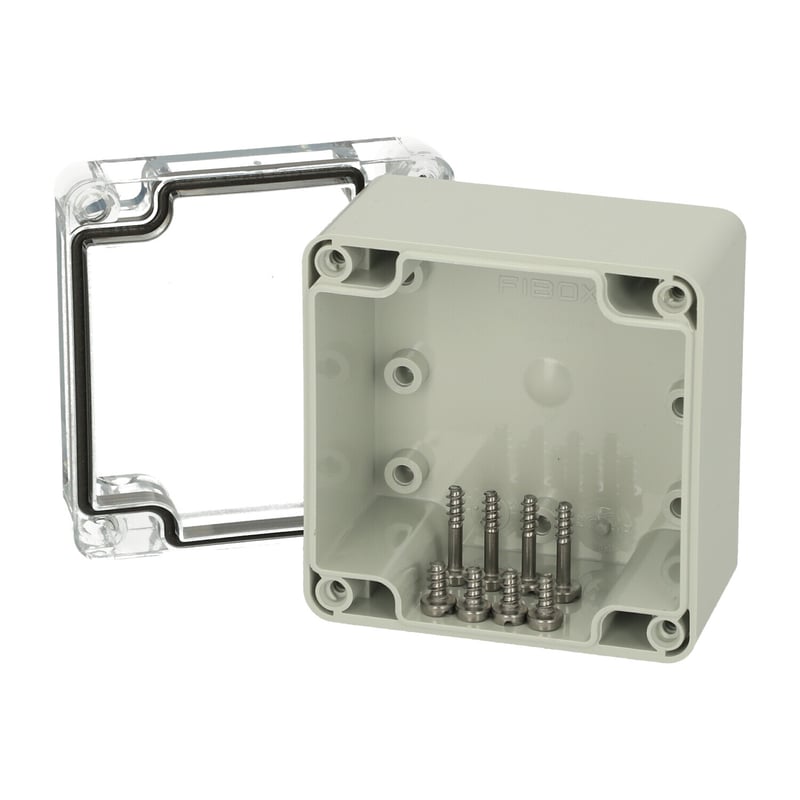

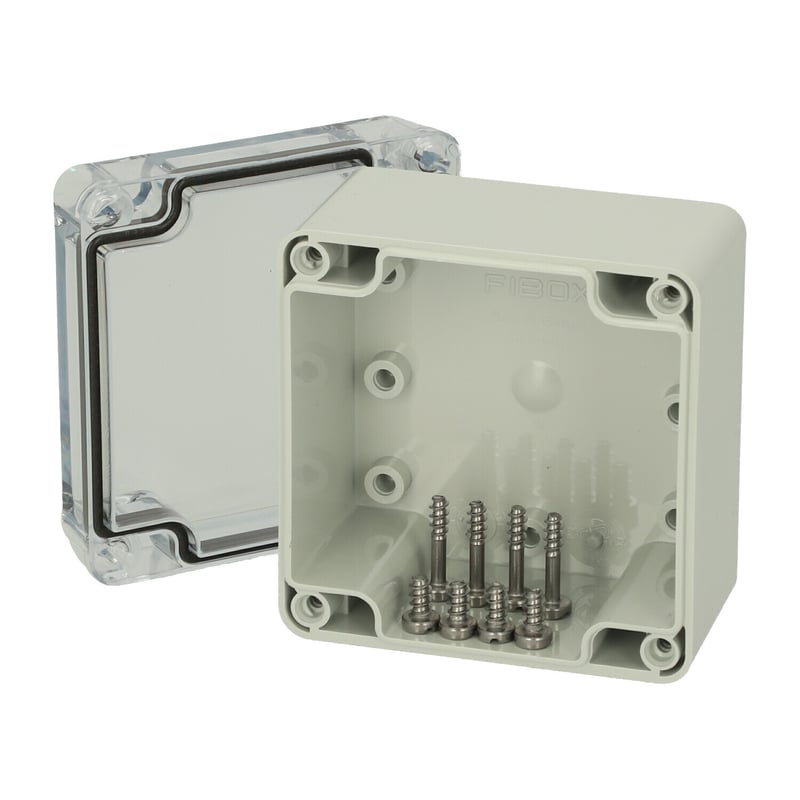

Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.

PC : IP66; IP67; IK07; IK08; EN 62208:2011. IEC 62208:2011,EN 61439-1:2011. IEC 61439-1:2011

Product number : 7022541 Download product card

Technical data

Product:

Product nr: 7022541

Description: Enclosure. PC

Remarks: Clear transparent cover

Package: 8

Unit: Piece

EAN: 6418074058522

SSTL number: 3435384

Electric No. Denmark: 8212002571

Electric No. Sweden:

ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions :

Height (mm): 80

Width (mm): 82

Depth (mm): 55

Height (inch) : 3.15

Width (inch) : 3.23

Depth (inch) : 2.17

Materials :

Material: Polycarbonate

Base colour : RAL 7035 -light grey

Cover colour : Clear transparent

Gasket material : Polyurethane

Temperatures:

Temperature °C (short term) : -40 … 120

Temperature °C (continuous) : -40 … 80

Temperature °F (short term) : -40 … 250

Temperature °F (continuous) : -40 … 175

Ratings :

Ingress Protection (EN 60529) : IP66; IP67;

Impact Resistance (EN 62262) : IK07; IK08;

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : 1

UV resistance : UL 508

Flammability Rating : UL 746C 5"

Glow Wire Test (IEC 60695) : 960 °C

NEMA Class :

Product is connected to following catalogs :

Euronord / EURONORD 0808 / PCT 080806

Dimensional Drawings

CAD Files

Contact

Accessories

TF 28037

Mounting foot kit (4 pcs). for enclosures:

TM 0808

Back Panel. for enclosures:
(56 x 71 x 1)

TH A

Gray plastic hinges (2 pcs)

TRM 0808

DIN-15 Mounting rail. for enclosures:
(68 x 15 x 1)

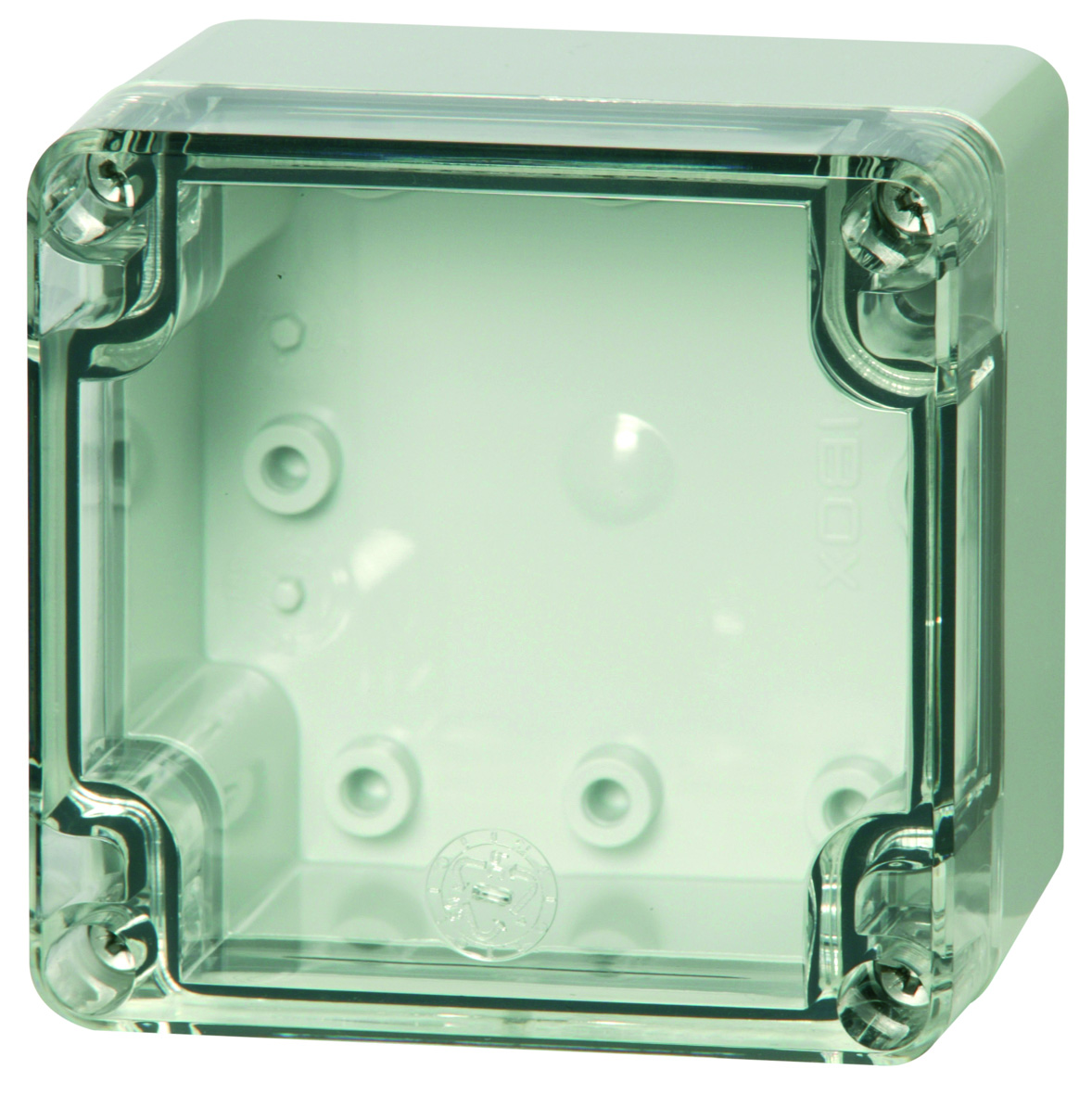

Sample image

Order symbol: PCT 080806

Product nbr: 7022541

Description: Enclosure. PC

Remarks: Clear transparent cover

EAN: 6418074058522

El. number:

Finland: 3435384
Denmark: 8212002571
Sweden:

Including: Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.

Dimensions:	Height	Width	Depth
mm:	80	82	55
inch:	3.15	3.23	2.17

Materials:
Material:	Polycarbonate
Base colour:	RAL 7035 -light grey
Cover colour:	Clear transparent
Gasket material:	Polyurethane

Temperatures:
Temperature °C (short term)::	-40 … 120
Temperature °C (continuous):	-40 … 80
Temperature °F (short term):	-40 … 250
Temperature °F (continuous):	-40 … 175

Accessories:
TF 28037	Mounting foot kit (4 pcs). for enclosures:
TM 0808	Back Panel. for enclosures: (56 x 71 x 1)
TH A	Gray plastic hinges (2 pcs)
TRM 0808	DIN-15 Mounting rail. for enclosures: (68 x 15 x 1)

Rating:
Ingress protection (EN 60529):	IP66; IP67;
Impact Resistance (EN 62262):	IK07; IK08;
Electrical insulation:	Totally insulated
Halogen free (DIN/VDE 0472, Part 815):	1
UV resistance:	UL 508
Flammability Rating:	UL 746C 5"
Glow Wire Test (IEC 695-2-1) °C:	960 °C
NEMA Class

Certificates:
SGSFimko_EURONORD
