Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.

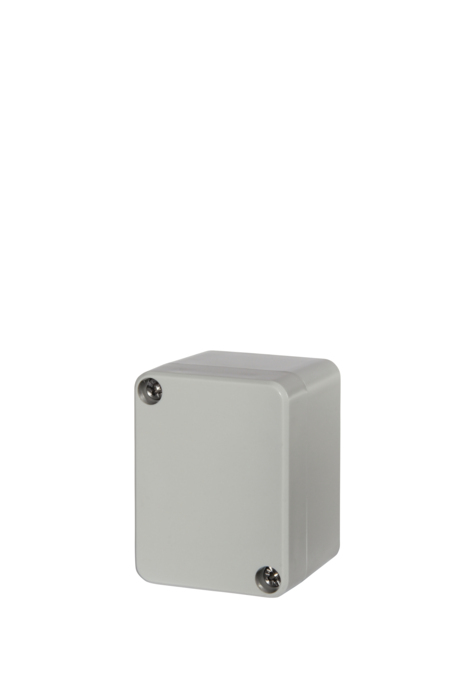

![AB 050705 product image 1](https://www.fibox.com/hs-fs/hubfs/assets/7083520_AB_050705_2_72dpi.jpg?length=393&name=7083520_AB_050705_2_72dpi.jpg)
![AB 050705 product image 2](https://www.fibox.com/hs-fs/hubfs/assets/7083520_AB_050705_1_72dpi.jpg?length=393&name=7083520_AB_050705_1_72dpi.jpg)
![AB 050705 product image 2](https://www.fibox.com/hs-fs/hubfs/assets/7083520_AB_050705%20360_ANIMA_SMALL.gif?length=393&name=7083520_AB_050705%20360_ANIMA_SMALL.gif)
![AB 050705 thumbnail image 1](https://www.fibox.com/hs-fs/hubfs/assets/7083520_AB_050705_2_72dpi.jpg?length=52&name=7083520_AB_050705_2_72dpi.jpg)
![AB 050705 thumbnail image 2](https://www.fibox.com/hs-fs/hubfs/assets/7083520_AB_050705_1_72dpi.jpg?length=52&name=7083520_AB_050705_1_72dpi.jpg)
![AB 050705 thumbnail image 2](https://www.fibox.com/hs-fs/hubfs/assets/7083520_AB_050705%20360_ANIMA_SMALL.gif?length=52&name=7083520_AB_050705%20360_ANIMA_SMALL.gif)
Euronord / EURONORD 0507 / AB 050705
AB 050705 7083520
Dimensions 50 x 65 x 45
Dimensions 1.97 x 2.56 x 1.77
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
- PC : IP66; IP67; IK07
Technical data
Product nr : 7083520
Description : Enclosure, ABS
Remarks : Grey cover
Package : 8
Unit : Piece
EAN : 6418074003485
SSTL number : 3423474
Electric No. Denmark : 8212003208
Electric No. Sweden : 7083520
ETIM : EC000261
Height (mm) : 50
Width (mm) : 65
Depth (mm) : 45
Height (inch) : 1.97
Width (inch) : 2.56
Depth (inch) : 1.77
Material : ABS
Base colour : RAL_7035
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperature °C : -40 … 60
Temperature °F : -40 … 140
Standards EN_62208:2011__IEC_62208:2011, EN_61439-1:2011__IEC_61439-1:2011
Ingress Protection (EN 60529): IP66IP67
Impact Resistance (EN 62262): IK07
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
Flammability Rating : UL 94 HB
Glow Wire Test (IEC 60695): 650C
Euronord / EURONORD 0507 / AB 050705
Dimensional Drawings
CAD Files
Please note, that we need you permission in order for you to view the CAD files.
Certificates and Declarations
Catalogues
Contact
AB 050705
![Fibox Fibox](https://www.fibox.com/hs-fs/hubfs/fibox-2021/logo/eclosing/png/fibox_enclosing-logo-2021-rgb-07.png?width=250&name=fibox_enclosing-logo-2021-rgb-07.png)

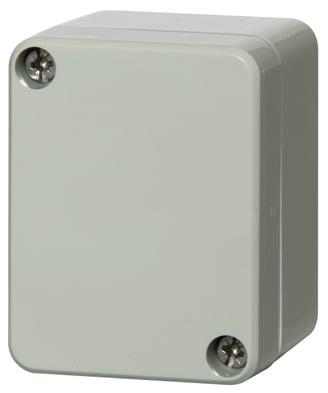

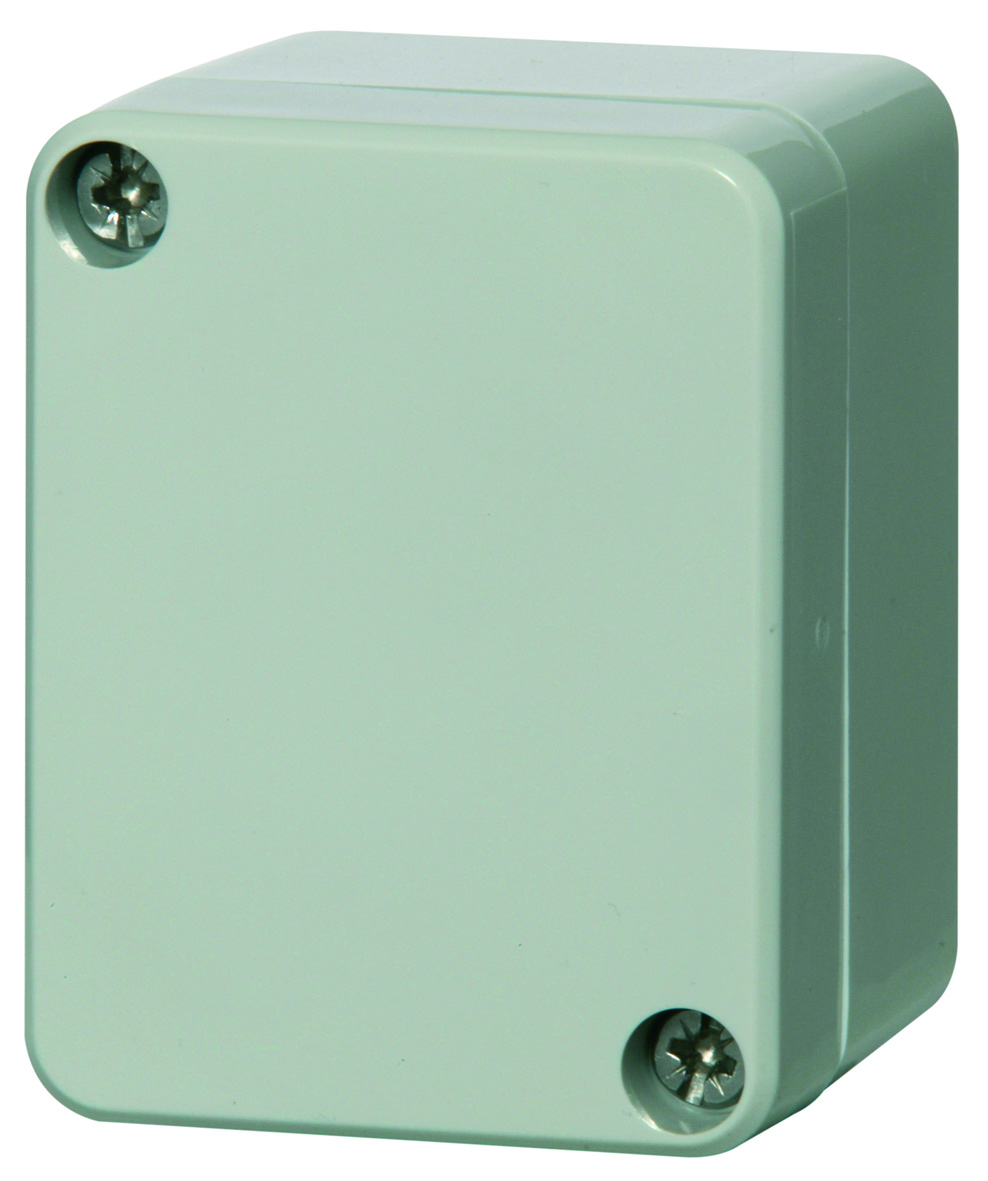

![7083520_AB_050705_2_72dpi](https://www.fibox.com/hs-fs/hubfs/assets/7083520_AB_050705_2_72dpi.jpg?width=200&name=7083520_AB_050705_2_72dpi.jpg)
Sample image
Order symbol : AB 050705
Product nr : 7083520
Description : Enclosure, ABS
Remarks : Grey cover
EAN : 6418074003485
El. number :
- Finland : 3423474
- Denmark : 8212003208
- Sweden : 7083520
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
![EURO050705](https://www.fibox.com/hubfs/assets/EURO050705.gif)
Dimensions : | Height | Width | Depth |
---|---|---|---|
mm : | 50 | 65 | 45 |
inch : | 1.97 | 2.56 | 1.77 |
Materials : | |
---|---|
Material : | ABS |
Base colour : | RAL_7035 |
Cover colour : | RAL 7035 -light grey |
Gasket material : | Polyurethane |
Temperatures : | |
---|---|
Temperature °C (continuous) : | -40 … 60 |
Temperature °F (continuous) : | -40 … 140 |
Accessories : | |
---|---|
TF 28037 | Wall fastening lug (4 pcs), for enclosures: |
TM 0507 |
Mounting plate, for enclosures:
(26 x 57 x 1) |
TRM 0507 |
DIN-15 Mounting rail, for enclosures:
(48 x 15 x 1) |
TM 0505 |
Mounting plate, for enclosures:
(26 x 48 x 1) |
TH A | Grey plastic hinges (2 pcs) |
Ratings : | |
---|---|
Ingress protection (EN 60529): | IP66; IP67; |
Impact Resistance (EN 62262): | IK07; |
electrical_insulation : | Totally insulated |
Halogen free (DIN/VDE 0472, Part 815) : | Yes |
UV resistance : | - |
Flammability Rating : | UL 94 HB |
Glow Wire Test (IEC 695-2-1) °C : | 650C |
Certificates : | |
---|---|
SGSFimko_EURONORD |
