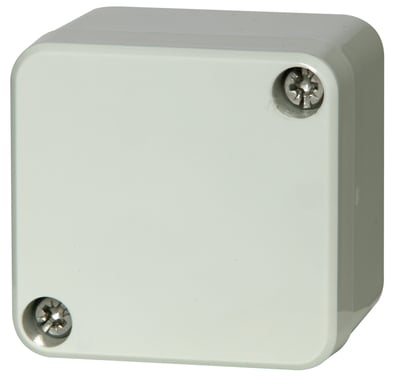

PC 050504 7032500
UL Code : 7042500
UL Name : UL PC 050504
Dimensions 52 x 50 x 40
Dimensions 2.05 x 1.97 x 1.57
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
- PC : IP66; IP67; IK07; IK08
Technical data
Product nr : 7032500
Description : Enclosure, PC
Remarks : Grey cover
Package : 8
Unit : Piece
EAN : 6418074010629
SSTL number : 3423422
Electric No. Denmark : 8212002500
Electric No. Sweden : 2536103
ETIM : EC000261 Enclosure/Switchgear cabinet (empty)
Height (mm) : 52
Width (mm) : 50
Depth (mm) : 40
Height (inch) : 2.05
Width (inch) : 1.97
Depth (inch) : 1.57
Material : Polycarbonate
Base colour : RAL 7035 -light grey
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperature °C (short term) : -40 … 120
Temperature °C (continuous) : -40 … 80
Temperature °F (short term) : -40 … 250
Temperature °F (continuous) : -40 … 175
Standards EN 62208:2011. IEC 62208:2011,EN 61439-1:2011. IEC 61439-1:2011
Ingress Protection (EN 60529): IP66IP67
Impact Resistance (EN 62262): IK07IK08
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 508
Flammability Rating : UL 746C 5"
Glow Wire Test (IEC 60695): 960 °C
/ /
Dimensional Drawings
CAD Files
Please note, that we need your permission in order for you to view the CAD files.
Certificates and Declarations
Catalogues
Contact
PC 050504

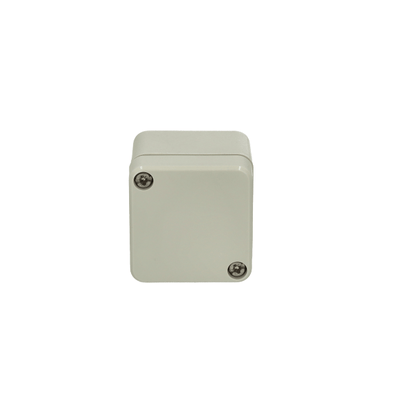

Sample image
Order symbol : PC 050504
Product nr : 7032500
UL Code : 7042500
UL Name : UL PC 050504
Description : Enclosure, PC
Remarks : Grey cover
EAN : 6418074010629
El. number :
- Finland : 3423422
- Denmark : 8212002500
- Sweden : 2536103
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 52 | 50 | 40 |
| inch : | 2.05 | 1.97 | 1.57 |
| Materials : | |
|---|---|
| Material : | Polycarbonate |
| Base colour : | RAL 7035 -light grey |
| Cover colour : | RAL 7035 -light grey |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (short term) : | -40 … 120 |
| Temperature °C (continuous) : | -40 … 80 |
| Temperature °F (short term) : | -40 … 250 |
| Temperature °F (continuous) : | -40 … 175 |
| Accessories : | |
|---|---|
| TF 28037 | Wall fastening lug (4 pcs), for enclosures: |
| TM 0505 |
Mounting plate, for enclosures:
(26 x 48 x 1) |
| TH A | Grey plastic hinges (2 pcs) |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP66; IP67; |
| Impact Resistance (EN 62262): | IK07; IK08; |
| electrical_insulation : | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | UL 508 |
| Flammability Rating : | UL 746C 5" |
| Glow Wire Test (IEC 695-2-1) °C : | 960 °C |
| Certificates : | |
|---|---|
| SGSFimko_EURONORD | |
