Description : Mounting plate, for enclosures:
Remarks : 300x230x87, 300x230x110
Package : 2
Unit : Piece
EAN : 6418074034083
SSTL number : 3423929
Electric No. Denmark : 8212004074
Electric No. Sweden : 2536169
ETIM : EC000213
Height (mm) : 221
Width (mm) : 274
Depth (mm) : 1.5
Height (inch) : 8.7
Width (inch) : 10.79
Depth (inch) : 0.06
Material : Galvanized steel
CAD Drawings
- TM 2330.dwg
- TM 2330.dxf
- TM 2330.step
- TM 2330.x_t
- TM 2330.zip
Please note, that we need you permission in order for you to view the CAD files.
TM 2330

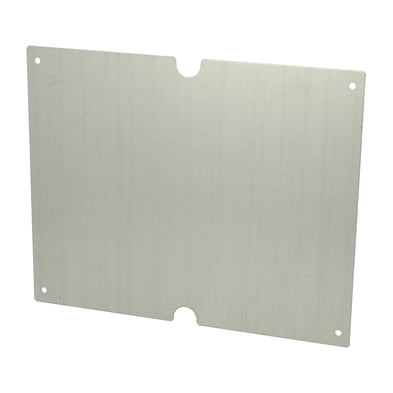

Sample image
Order symbol : TM 2330
Product nr : 9512019
Description : Mounting plate, for enclosures:
Remarks : 300x230x87, 300x230x110
EAN : 6418074034083
El. number :
- Finland : 3423929
- Denmark : 8212004074
- Sweden : 2536169
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 221 | 274 | 1.5 |
| inch : | 8.7 | 10.79 | 0.06 |
| Materials : | |
|---|---|
| Material : | Galvanized steel |
| Ratings : | |
|---|---|
| electrical_insulation : | Not insulated |
| UV resistance : | - |
