ABQ3 364012 7085881
Dimensions 360 x 400 x 120
Dimensions 14.17 x 15.75 x 4.72
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and quick-locking cover screws.
- PC : IP66; IP67; IK07
Technical data
Product nr : 7085881
Description : Enclosure, ABS
Remarks : Grey cover (quick-locking)
Package : 2
Unit : Piece
EAN : 6418074099402
SSTL number : 3424271
Electric No. Denmark : 8212050507
ETIM : EC000261
Height (mm) : 360
Width (mm) : 400
Depth (mm) : 120
Height (inch) : 14.17
Width (inch) : 15.75
Depth (inch) : 4.72
Material : ABS
Base colour : RAL_7035
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperature °C : -40 … 60
Temperature °F : -40 … 140
Standards EN_62208:2011__IEC_62208:2011, EN_61439-1:2011__IEC_61439-1:2011
Ingress Protection (EN 60529): IP66IP67
Impact Resistance (EN 62262): IK07
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
Flammability Rating : UL 94 HB
Glow Wire Test (IEC 60695): 650C
/ /
Dimensional Drawings
CAD Files
Please note, that we need you permission in order for you to view the CAD files.
Certificates and Declarations
Catalogues
Contact
ABQ3 364012

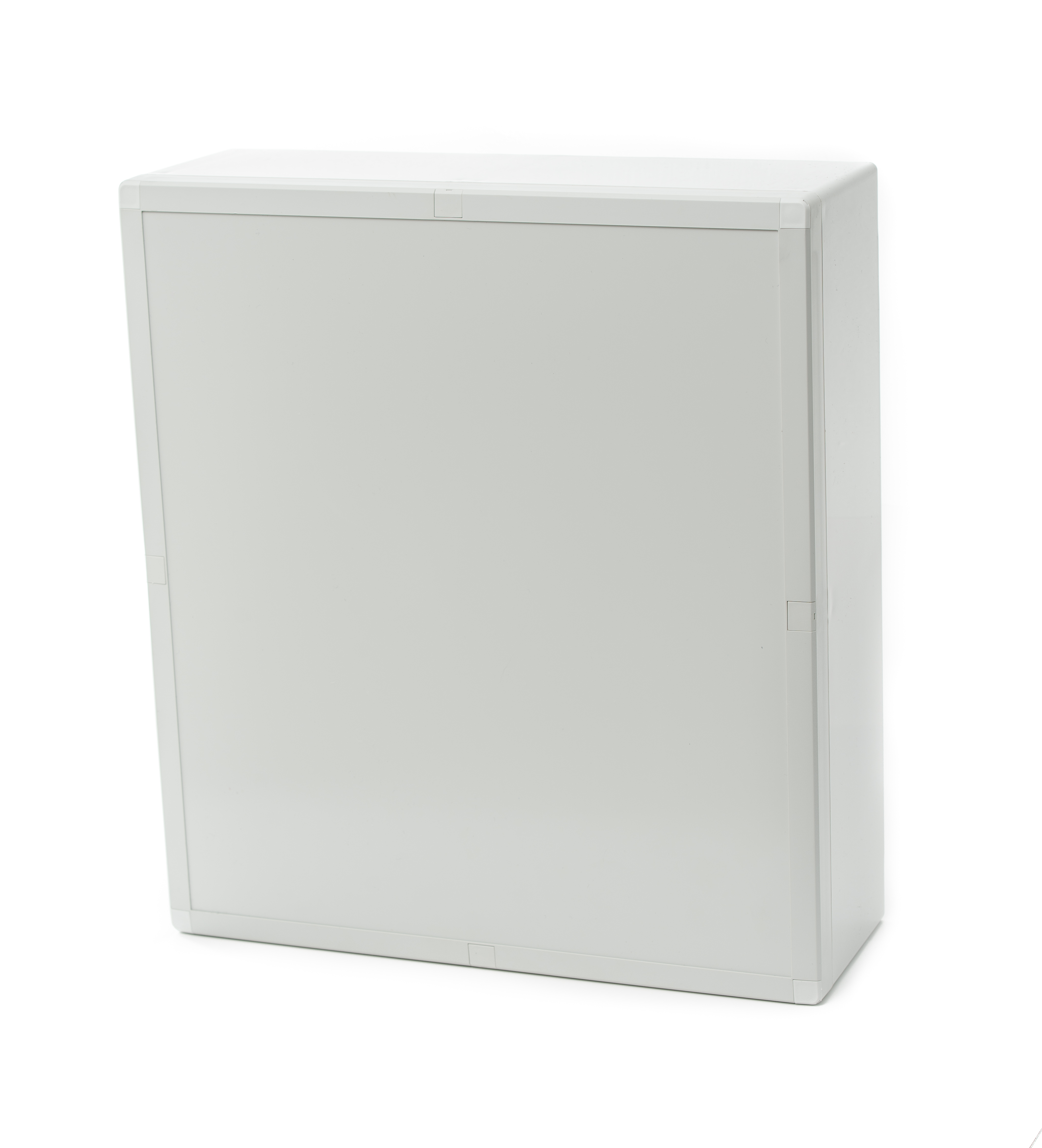

Sample image
Order symbol : ABQ3 364012
Product nr : 7085881
Description : Enclosure, ABS
Remarks : Grey cover (quick-locking)
EAN : 6418074099402
El. number :
- Finland : 3424271
- Denmark : 8212050507
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and quick-locking cover screws.
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 360 | 400 | 120 |
| inch : | 14.17 | 15.75 | 4.72 |
| Materials : | |
|---|---|
| Material : | ABS |
| Base colour : | RAL_7035 |
| Cover colour : | RAL 7035 -light grey |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -40 … 60 |
| Temperature °F (continuous) : | -40 … 140 |
| Accessories : | |
|---|---|
| TRH 40 |
DIN-35 Mounting rail, for enclosures:
(380 x 35 x 1) |
| TF 28037 | Wall fastening lug (4 pcs), for enclosures: |
| TM 3640 |
Mounting plate, for enclosures:
(383 x 315 x 1) |
| TH A | Grey plastic hinges (2 pcs) |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP66; IP67; |
| Impact Resistance (EN 62262): | IK07; |
| electrical_insulation : | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | - |
| Flammability Rating : | UL 94 HB |
| Glow Wire Test (IEC 695-2-1) °C : | 650C |
| Certificates : | |
|---|---|
| SGSFimko_EURONORD | |
