Description : Enclosure, polyester
Remarks : Grey cover
Package : 1
Unit : Piece
EAN : 6418074004390
SSTL number : 3423664
Electric No. Denmark : 8212005662
Electric No. Sweden : 2536221
ETIM : EC000261
Ingress Protection : IP66 | IK08
Height (mm) : 160
Width (mm) : 160
Depth (mm) : 90
Height (inch) : 6.3
Width (inch) : 6.3
Depth (inch) : 3.54
Material : Polyester
Base colour : RAL_7036
Cover colour : RAL 7036
Gasket material : Polyurethane
Temperature °C : -20 ... 95
Temperature °F : -4…203°F
Standards : EN/IEC 60670
Ingress Protection (EN 60529): IP66
Impact Resistance (EN 62262): IK08
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 60695): 960C

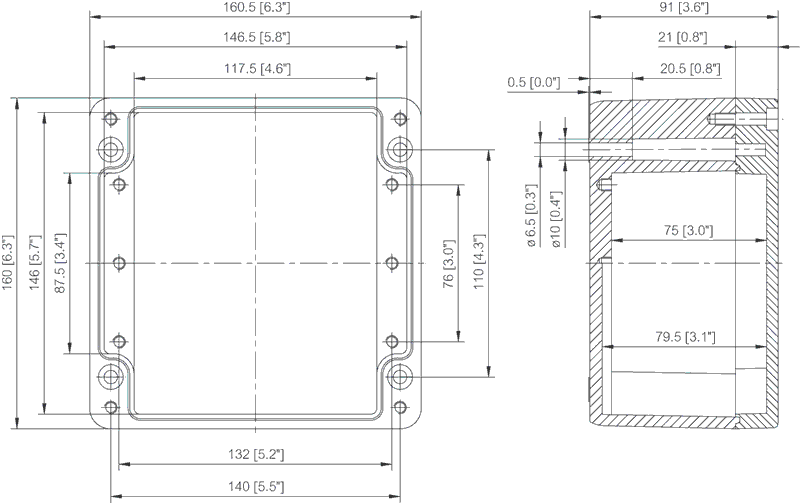

CAD Drawings
- P1616B.dwg
- P1616C.dwg
- P1616B.dxf
- P1616C.dxf
- P1616B.x_t
- P1616C.x_t
- P1616B.zip
- P1616C.zip
Please note, that we need you permission in order for you to view the CAD files.
P 161609

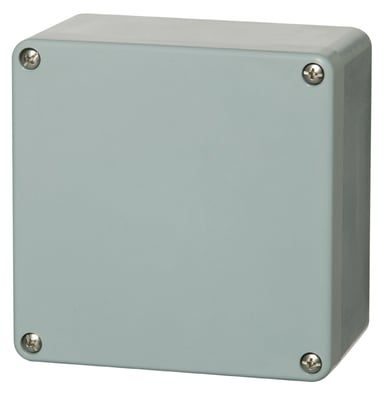

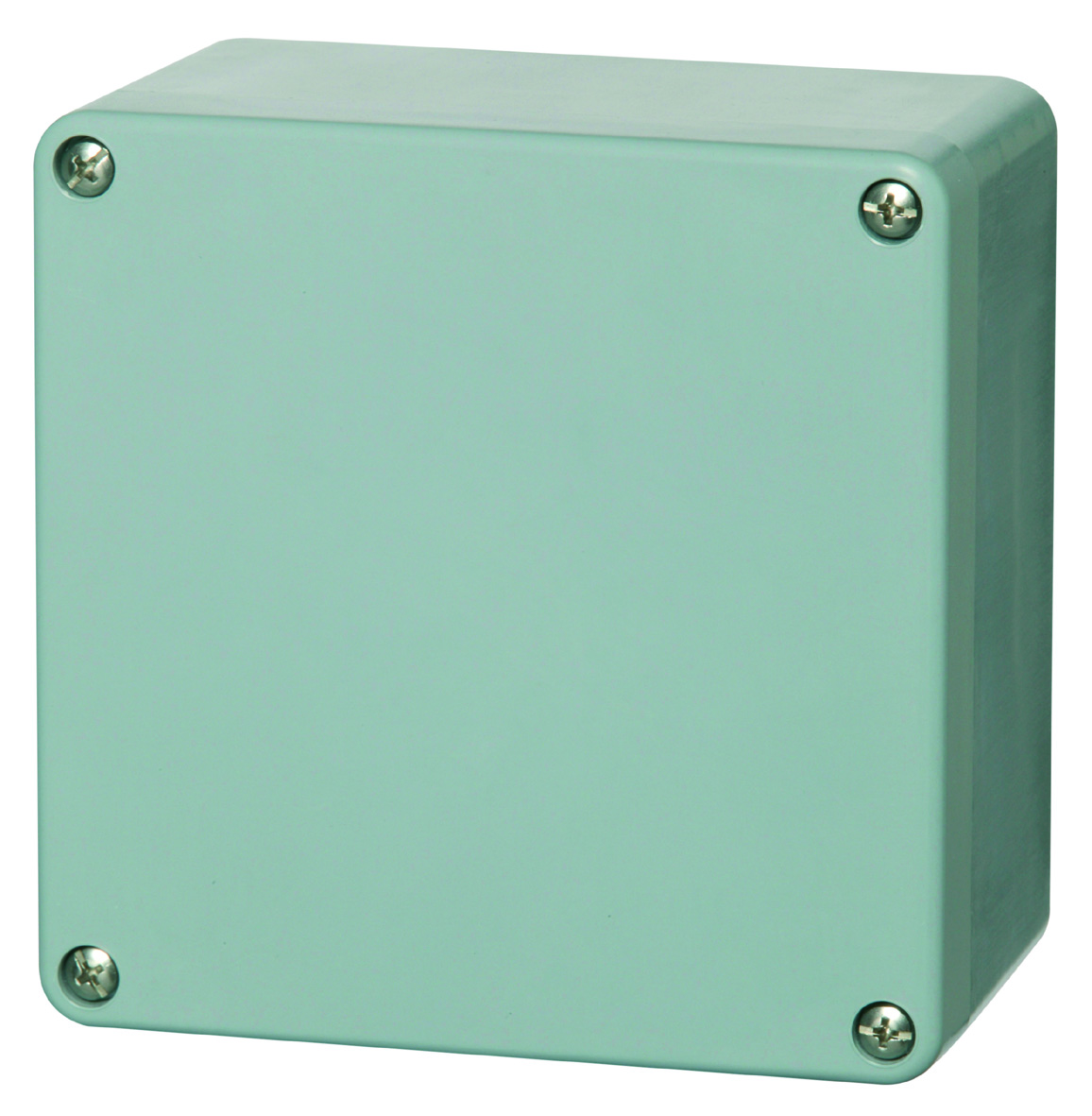

Sample image
Order symbol : P 161609
Product nr : 7094280
Description : Enclosure, polyester
Remarks : Grey cover
EAN : 6418074004390
El. number :
- Finland : 3423664
- Denmark : 8212005662
- Sweden : 2536221
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 160 | 160 | 90 |
| inch : | 6.3 | 6.3 | 3.54 |
| Materials : | |
|---|---|
| Material : | Polyester |
| Base colour : | RAL_7036 |
| Cover colour : | RAL 7036 |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -20 ... 95 |
| Temperature °F (continuous) : | -4…203°F |
| Accessories : | |
|---|---|
| PM 1616 |
Mounting plate, for enclosures:
(146 x 146 x 1.5) |
| ARH 16 |
DIN-35 Mounting rail, for enclosures:
(140 x 35 x 7) |
| ARM 0615 |
DIN-15 Mounting rail, for enclosures:
(140 x 15 x 5) |
| MRS 28541 |
Wall fastening lug (2 pcs), for enclosures:
(15 x 50 x 1) |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP66; |
| Impact Resistance (EN 62262): | IK08; |
| electrical_insulation : | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | UL 746C |
| Flammability Rating : | UL 94 V0 |
| Glow Wire Test (IEC 695-2-1) °C : | 960C |
