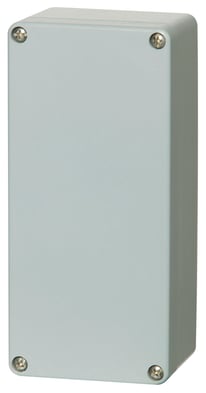

P_081606
Next slide
P_081606

Euronord P / P 0816 / P 081606

P 081606 7094170

Dimensions 75 x 160 x 55.

  • PC: IP66; IK10;
Technical data
Product:

Product nr: 7094170

Description: Fiberglass enclosure

Remarks: Opaque cover

Package: 4

Unit: Piece

EAN: 6418074004352

SSTL number: 3423657

Electric No. Denmark: 8212005620

Electric No. Sweden: 2536209

ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions:

Height (mm): 75

Width (mm): 160

Depth (mm): 55

Height (inch): 2.95

Width (inch): 6.3

Depth (inch): 2.17

Materials:

Material: Polyester

Gasket material: Polyurethane

Temperatures:

Temperature °C (short term): -50 … 120

Temperature °C (continuous): -20 ... 95 °

Temperature °F (short term): -60 … 250

Temperature °F (continuous): -40 … 175

Ratings:

Ingress Protection (EN 60529): IP66;

Impact Resistance (EN 62262): IK10;

Electrical insulation: Totally insulated

Halogen free (DIN/VDE 0472, Part 815): 1

UV resistance: UL 508

Flammability Rating: UL 94 V0

Glow Wire Test (IEC 695-2-1): 960 °C

NEMA Class:

Product is connected to following catalogs:

Euronord P / P 0816 / P 081606

CAD files
Certificates and Declarations
Catalogues
Contact

P 081606

Fibox

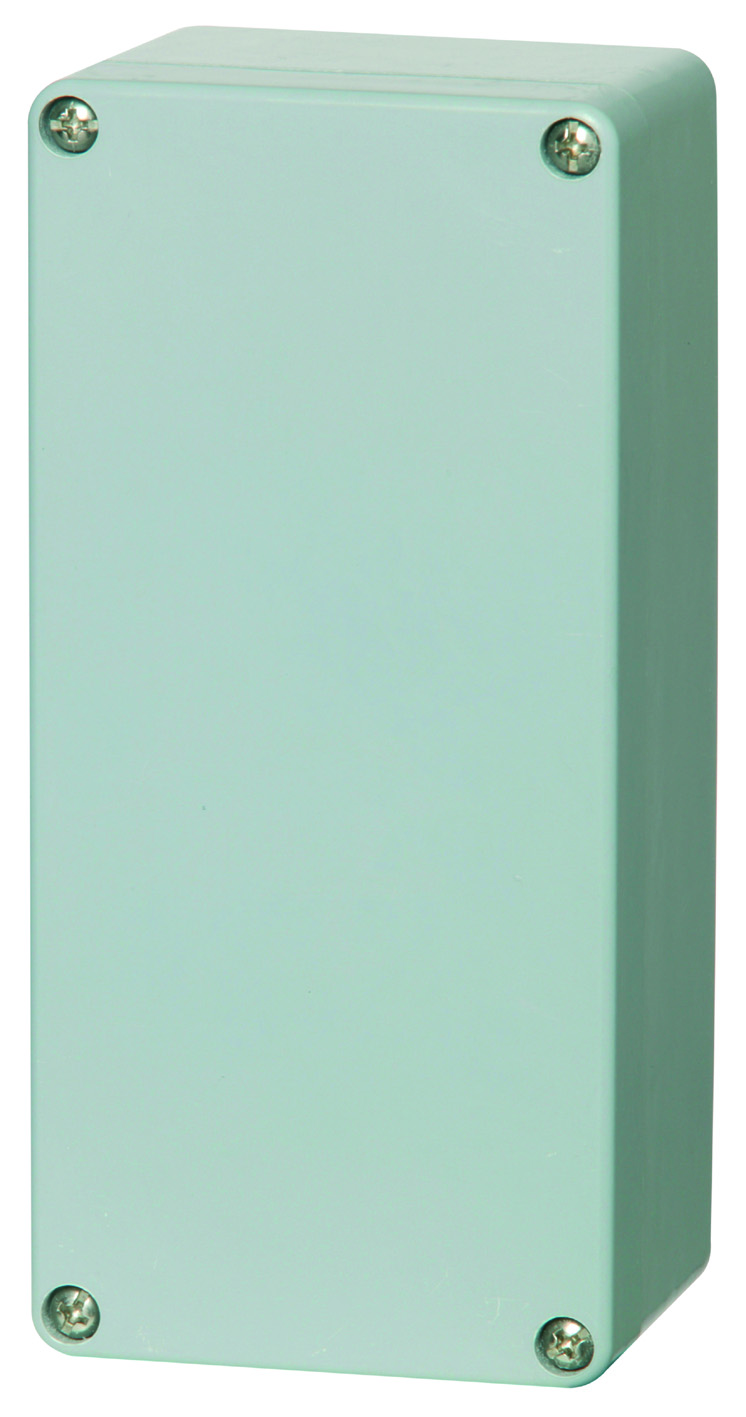

P_081606

Sample image

Order symbol: P 081606

Product nbr: 7094170

Description: Fiberglass enclosure

Remarks: Opaque cover

EAN: 6418074004352

El. number:

  • Finland: 3423657
  • Denmark: 8212005620
  • Sweden: 2536209

Including:

EUROP081606
Dimensions: Height Width Depth
mm: 75 160 55
inch: 2.95 6.3 2.17
Materials:
Material: Polyester
Base colour:
Cover colour:
Gasket material: Polyurethane
Temperatures:
Temperature °C (short term):: -50 … 120
Temperature °C (continuous): -20 ... 95 °
Temperature °F (short term): -60 … 250
Temperature °F (continuous): -40 … 175
Accessories:
PM 0816 Back Panel. for enclosures:
(64 x 149 x 1)
TRH 1216 DIN-15 Mounting rail. for enclosures:
(146 x 35 x 1)
TRM 0816 DIN-15 Mounting rail. for enclosures:
(146 x 15 x 1)
MRS 28540 Mounting foot kit (2 pcs). for enclosures:
(11 x 42 x 1)
PRM 0816 DIN-15 Mounting rail. for enclosures:
(149 x 15 x 1)
Rating:
Ingress protection (EN 60529): IP66;
Impact Resistance (EN 62262): IK10;
Electrical insulation: Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance: UL 508
Flammability Rating: UL 94 V0
Glow Wire Test (IEC 695-2-1) °C: 960 °C
NEMA Class
Certificates:
