Description : Enclosure, polyester
Remarks : Grey cover
Package : 4
Unit : Piece
EAN : 6418074004338
SSTL number : 3423655
Electric No. Denmark : 8212005604
Electric No. Sweden : 2536205
ETIM : EC000261
Ingress Protection : IP66 | IK08
Height (mm) : 75
Width (mm) : 80
Depth (mm) : 55
Height (inch) : 2.95
Width (inch) : 3.15
Depth (inch) : 2.17
Material : Polyester
Base colour : RAL_7036
Cover colour : RAL 7036
Gasket material : Polyurethane
Temperature °C : -20 ... 95
Temperature °F : -4…203°F
Standards : EN/IEC 60670
Ingress Protection (EN 60529): IP66
Impact Resistance (EN 62262): IK08
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 60695): 960C

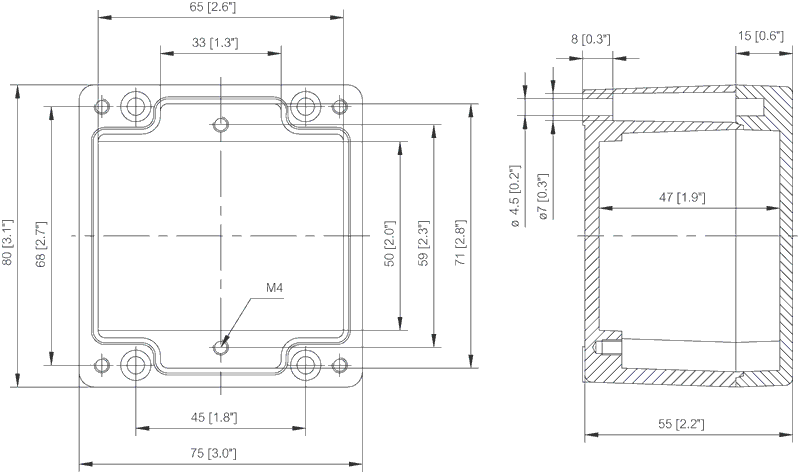

CAD Drawings
- P0808B.dwg
- P0808C.dwg
- P0808B.dxf
- P0808C.dxf
- P0808B.x_t
- P0808C.x_t
- P0808B.zip
- P0808C.zip
Please note, that we need you permission in order for you to view the CAD files.
P 080806

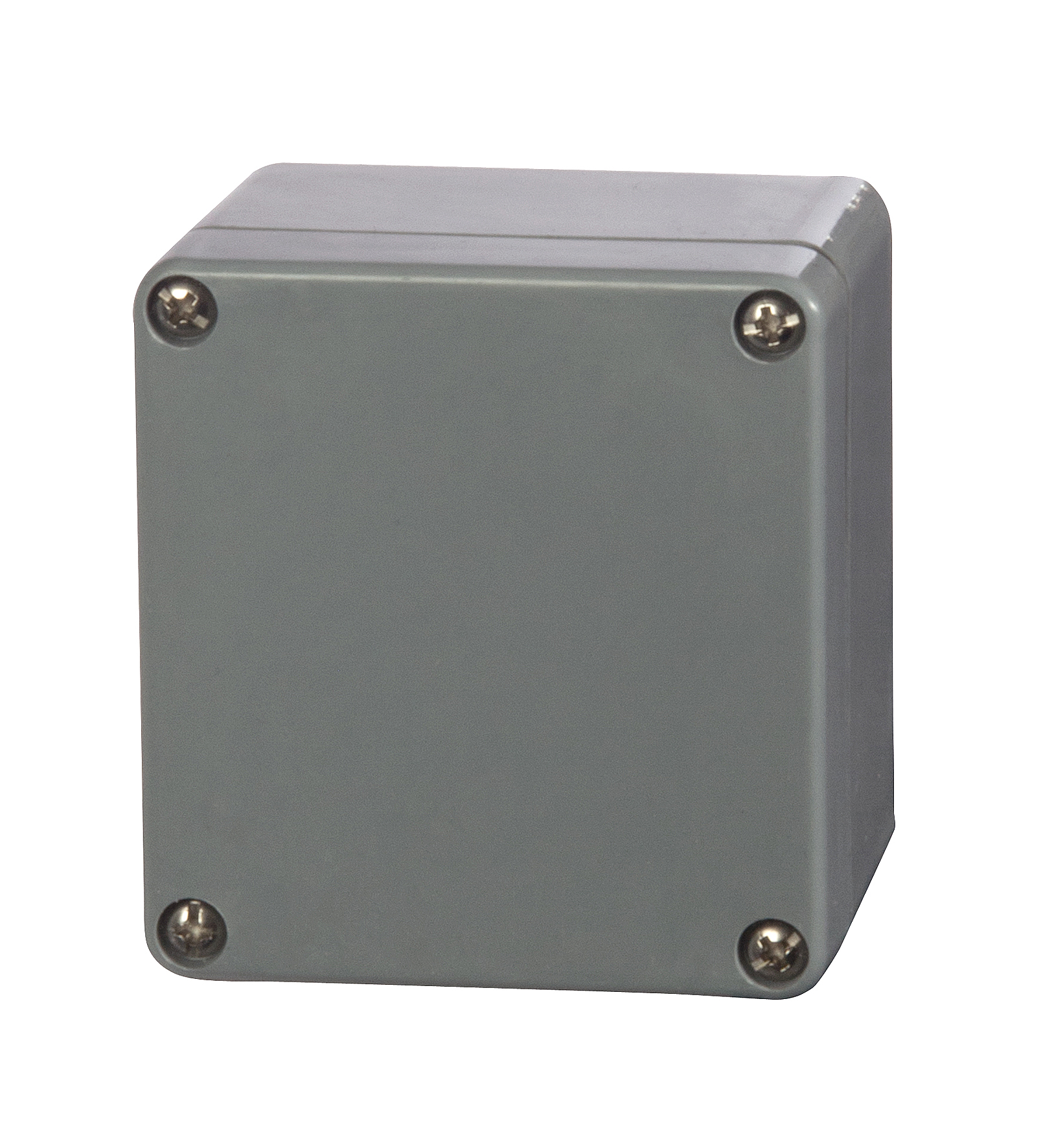

Sample image
Order symbol : P 080806
Product nr : 7094140
Description : Enclosure, polyester
Remarks : Grey cover
EAN : 6418074004338
El. number :
- Finland : 3423655
- Denmark : 8212005604
- Sweden : 2536205
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 75 | 80 | 55 |
| inch : | 2.95 | 3.15 | 2.17 |
| Materials : | |
|---|---|
| Material : | Polyester |
| Base colour : | RAL_7036 |
| Cover colour : | RAL 7036 |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -20 ... 95 |
| Temperature °F (continuous) : | -4…203°F |
| Accessories : | |
|---|---|
| PM 0808 |
Mounting plate, for enclosures:
(64 x 69 x 1.5) |
| TRM 0808 |
DIN-15 Mounting rail, for enclosures:
(68 x 15 x 5) |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP66; |
| Impact Resistance (EN 62262): | IK08; |
| electrical_insulation : | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | UL 746C |
| Flammability Rating : | UL 94 V0 |
| Glow Wire Test (IEC 695-2-1) °C : | 960C |
