EK / EKU / EKU 30-T

EKU 30-T 3720320

Dimensions 560 x 380 x 30.

  • PC :
Technical data
Product:

Product nr: 3720320

Description: Cover

Remarks: Transparent. PC

Package: 2

Unit: Piece

EAN: 6418074000408

SSTL number: 3420180

Electric No. Denmark: 8212007259

Electric No. Sweden: 2537874

ETIM: EC002620 Component for installation (switchgear cabinet)

Dimensions :

Height (mm): 560

Width (mm): 380

Depth (mm): 30

Height (inch) : 22.05

Width (inch) : 14.96

Depth (inch) : 1.18

Materials :

Material:

Temperatures:

Temperature °C (short term) : -40 … 120

Temperature °C (continuous) :

Temperature °F (short term) : -40 … 250

Temperature °F (continuous) : -40 … 175

Ratings :

Ingress Protection (EN 60529) :

Impact Resistance (EN 62262) :

Electrical insulation : Not insulated

Halogen free (DIN/VDE 0472, Part 815) : 0

UV resistance : -

Flammability Rating :

Glow Wire Test (IEC 60695) : C

NEMA Class :

Product is connected to following catalogs :

EK / EKU / EKU 30-T

CAD Files
Certificates and Declarations
Contact

EKU 30-T

Fibox

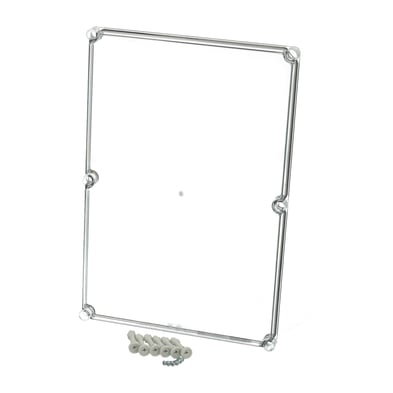

Sample image

Order symbol: EKU 30-T

Product nbr: 3720320

Description: Cover

Remarks: Transparent. PC

EAN: 6418074000408

El. number:

  • Finland: 3420180
  • Denmark: 8212007259
  • Sweden: 2537874

Including:

EKU
Dimensions: Height Width Depth
mm: 560 380 30
inch: 22.05 14.96 1.18
Materials:
Material:
Base colour:
Cover colour:
Gasket material:
Temperatures:
Temperature °C (short term):: -40 … 120
Temperature °C (continuous):
Temperature °F (short term): -40 … 250
Temperature °F (continuous): -40 … 175
Accessories:
EKUVT Back Panel. for enclosures:
(518 x 338 x 1)
EKV 32 DIN-35 Mounting rail. for enclosures:
(335 x 35 x 1)
EKUZR Extension frame. for enclosures:
(560 x 380 x 50)
Rating:
Ingress protection (EN 60529):
Impact Resistance (EN 62262):
Electrical insulation: Not insulated
Halogen free (DIN/VDE 0472, Part 815): 0
UV resistance: -
Flammability Rating:
Glow Wire Test (IEC 695-2-1) °C: C
NEMA Class
Certificates:
SGSFIMKO_EK
