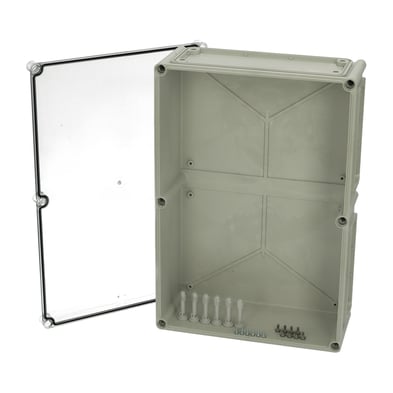

    Flanged Base with screws for mounting plate. cover with PUR gasket and polyamide cover screws.

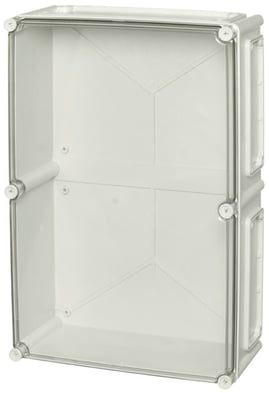

EK / EKU / EKUN 180 T

EKUN 180 T 2538185

Dimensions 560 x 380 x 180

Including : Flanged Base with screws for mounting plate. cover with PUR gasket and polyamide cover screws.

PC : IP66; IP67; IK08

Product number : 2538185 Download product card

Technical data

Product:

Product nr : 2538185

Description : Enclosure, PC

Remarks : Transparent cover

Package : 1

Unit : Piece

EAN : 6418074013965

SSTL number : 3425488

Electric No. Denmark : 8212051111

Electric No. Sweden : 2538185

ETIM : EC000261

Dimensions :

Height (mm) : 560

Width (mm) : 380

Depth (mm) : 180

Materials :

Material : Polycarbonate

Base colour : RAL_7035

Cover colour : Clear transparent

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 80

Temperature °F : -40 … 175

Ratings :

Standards EN_62208:2011__IEC_62208:2011, EN_61439-3:2012__IEC_61439-3:2012, EN_61439-4:2013__IEC_61439-4:2012

Ingress Protection (EN 60529): IP66IP67

Impact Resistance (EN 62262): IK08

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 94 V0

Glow Wire Test (IEC 60695): 960C

Product is connected to following catalogues :

EK / EKU / EKUN 180 T

Dimensional Drawings

CAD Files

Please note, that we need you permission in order for you to view the CAD files.

Contact

Accessories

EKUVT

Mounting plate, for enclosures:
(518 x 338 x 1)

EKV 32

DIN-35 Mounting rail, for enclosures:
(335 x 35 x 1)

EKUZR

Extension frame, for enclosures:
(560 x 380 x 50)

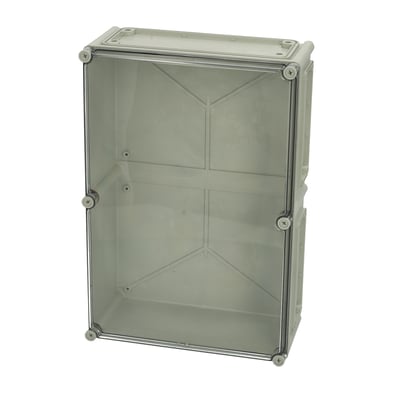

Sample image

Order symbol : EKUN 180 T

Product nr : 2538185

Description : Enclosure, PC

Remarks : Transparent cover

EAN : 6418074013965

El. number :

Finland : 3425488
Denmark : 8212051111
Sweden : 2538185
