EKT 30-G-3FSH
3530144
Dimensions 580 x 280 x 30
Dimensions 22.83 x 11.02 x 1.18
Description : Hinged cover, PC
Remarks : Grey
Package : 4
Unit : Piece
EAN : 6418074010360
SSTL number : 3422726
Electric No. Denmark : 8212012927
Electric No. Sweden : 2538225
ETIM : EC002620
Ingress Protection : IP65
Height (mm) : 580
Width (mm) : 280
Depth (mm) : 30
Height (inch) : 22.83
Width (inch) : 11.02
Depth (inch) : 1.18
Material : Polycarbonate
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Ingress Protection (EN 60529): IP65
Electrical insulation : Totally insulated
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 60695): 960C
CAD Drawings
Lorem Ipsum...
- 3530144_FIBOX_EKT30G_3FSH.step
Please note, that we need you permission in order for you to view the CAD files.
EKT 30-G-3FSH

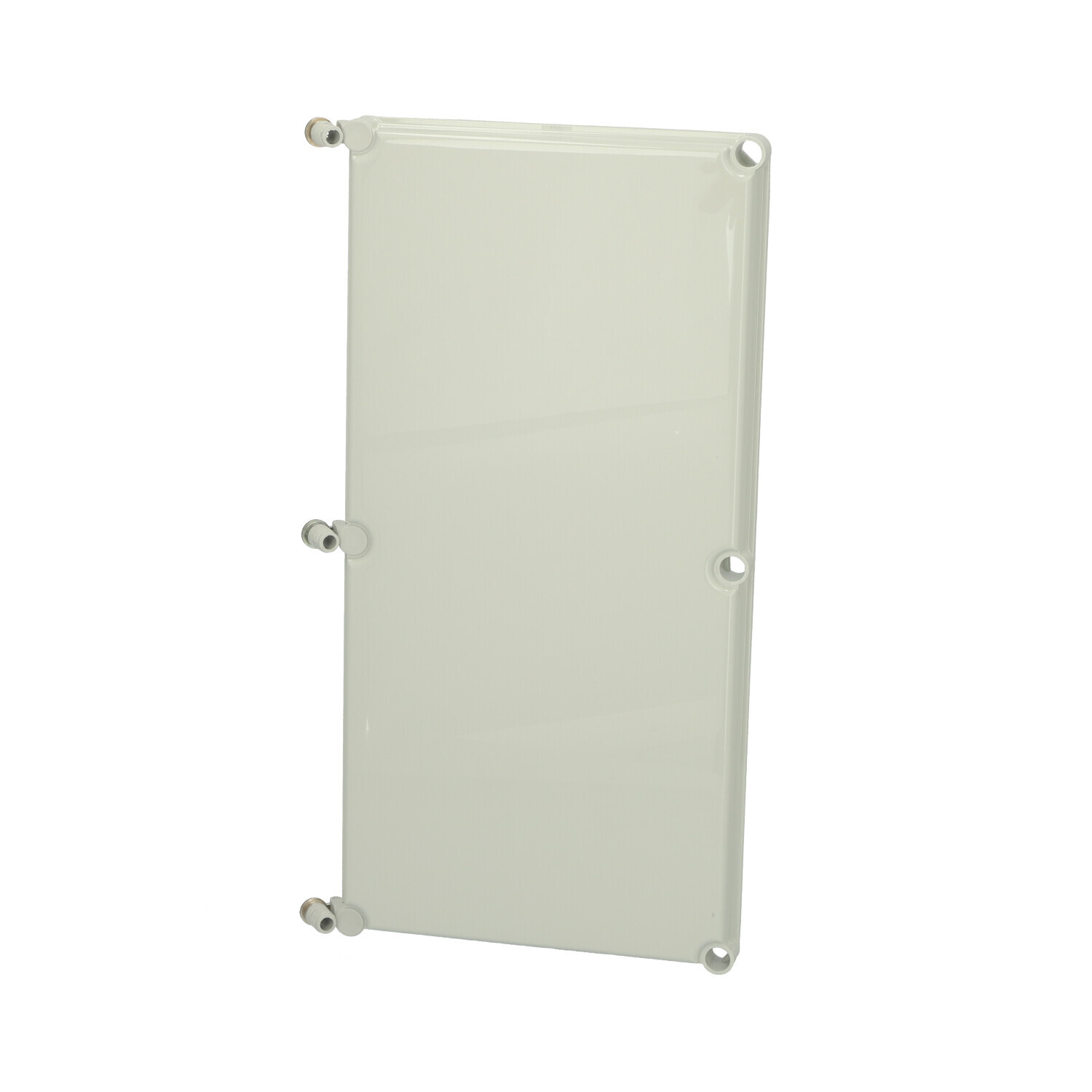

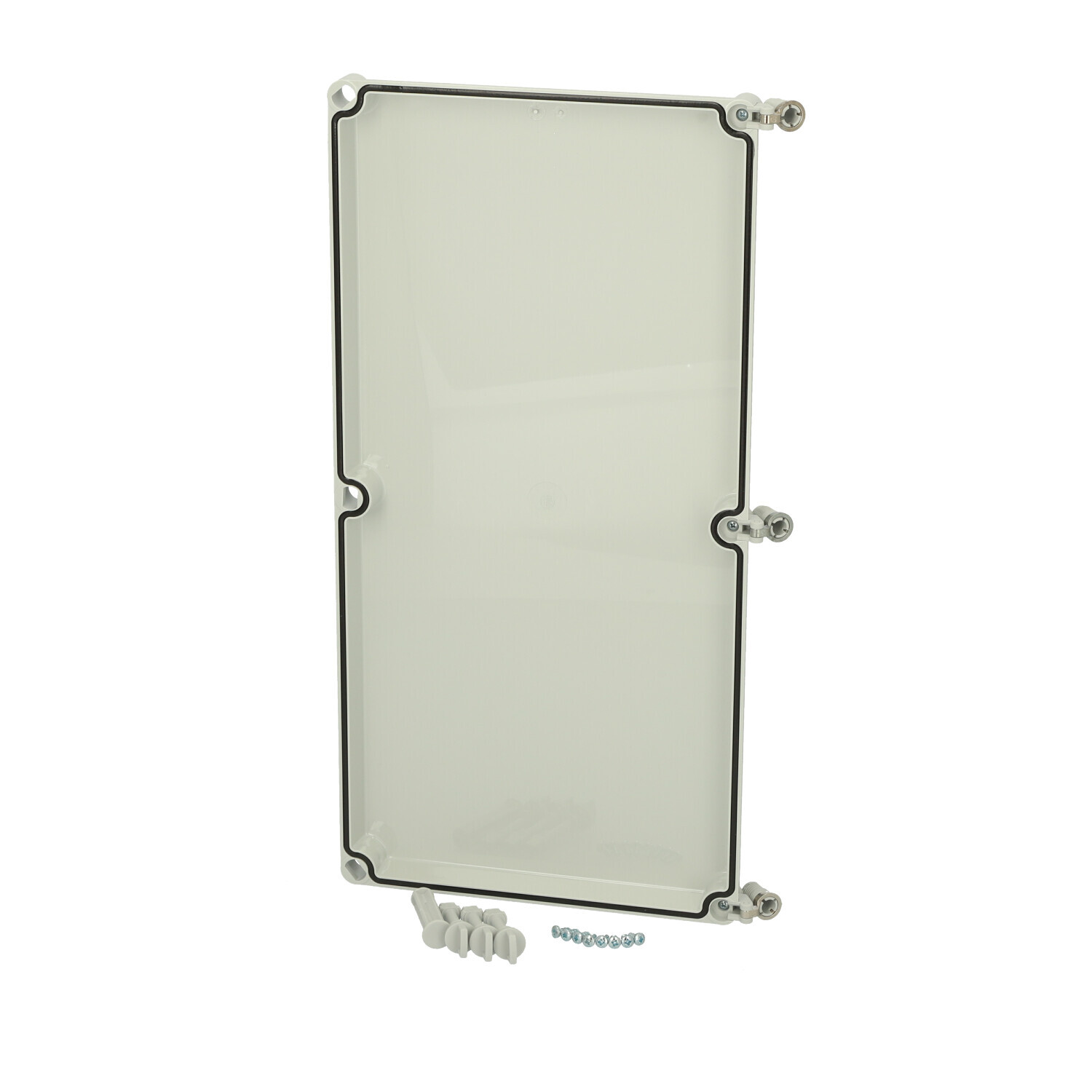

Sample image
Order symbol : EKT 30-G-3FSH
Product nr : 3530144
Description : Hinged cover, PC
Remarks : Grey
EAN : 6418074010360
El. number :
- Finland : 3422726
- Denmark : 8212012927
- Sweden : 2538225
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 580 | 280 | 30 |
| inch : | 22.83 | 11.02 | 1.18 |
| Materials : | |
|---|---|
| Material : | Polycarbonate |
| Cover colour : | RAL 7035 -light grey |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -40 … 80 |
| Temperature °F (continuous) : | -40 … 175 |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP65; |
| electrical_insulation : | Totally insulated |
| UV resistance : | UL 746C |
| Flammability Rating : | UL 94 V0 |
| Glow Wire Test (IEC 695-2-1) °C : | 960C |
