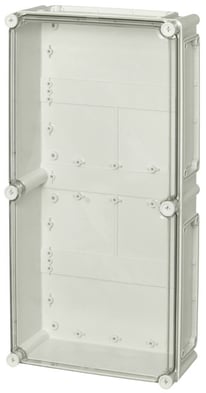

EKTH_130_T
Next slide
EKTH_130_T

EK / EKT / EKTH 130 T

EKTH 130 T 2538167

Dimensions 560 x 280 x 130.

Including : Flanged Base with screws for mounting plate. cover with PUR gasket and polyamide cover screws.

  • PC : IP66; IP67; IK08; EN 62208:2011. IEC 62208:2011,EN 61439-3:2012. IEC 61439-3:2012,EN 61439-4:2013. IEC 61439-4:2012
Technical data
Product:

Product nr : 2538167

Description : Enclosure, PC

Remarks : Transparent cover

Package : 1

Unit : Piece

EAN : 6418074013934

SSTL number : 3425483

Electric No. Denmark :

Electric No. Sweden : 2538167

ETIM : EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions :

Height (mm) : 560

Width (mm) : 280

Depth (mm) : 130

Height (inch) : 22.05

Width (inch) : 11.02

Depth (inch) : 5.12

Materials :

Material : Polycarbonate

Base colour : RAL 7035 -light grey

Cover colour : Clear transparent

Gasket material : Polyurethane

Temperatures :

Temperature °C (short term) : -40 … 120

Temperature °C (continuous) : -40 … 80

Temperature °F (short term) : -40 … 250

Temperature °F (continuous) : -40 … 175

Ratings :

Ingress Protection (EN 60529): IP66; IP67;

Impact Resistance (EN 62262): IK08;

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : 1

UV resistance : UL 508

Flammability Rating : UL 746C 5"

Glow Wire Test (IEC 60695): 960 °C

NEMA Class :

Product is connected to following catalogues :

EK / EKT / EKTH 130 T

CAD Files
Certificates and Declarations
Contact

EKTH 130 T

Fibox

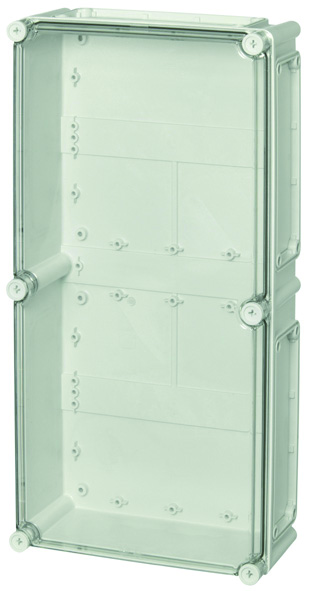

EKTH_130_T

Sample image

Order symbol : EKTH 130 T

Product nr : 2538167

Description : Enclosure, PC

Remarks : Transparent cover

EAN : 6418074013934

El. number :

  • Finland : 3425483
  • Denmark :
  • Sweden : 2538167

Including : Flanged Base with screws for mounting plate. cover with PUR gasket and polyamide cover screws.

EKT
Dimensions : Height Width Depth
mm : 560 280 130
inch : 22.05 11.02 5.12
Materials :
Material : Polycarbonate
Base colour : RAL 7035 -light grey
Cover colour : Clear transparent
Gasket material : Polyurethane
Temperatures :
Temperature °C (short term) : -40 … 120
Temperature °C (continuous) : -40 … 80
Temperature °F (short term) : -40 … 250
Temperature °F (continuous) : -40 … 175
Accessories :
EKTZR Extension frame, for enclosures:
(560 x 280 x 50)
EKTVT Mounting plate, for enclosures:
(518 x 238 x 1)
EKV 22 DIN-35 Mounting rail, for enclosures:
(235 x 35 x 1)
EKV 50 DIN-35 Mounting rail, for enclosures:
(515 x 35 x 1)
Rating :
Ingress protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK08;
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance : UL 508
Flammability Rating : UL 746C 5"
Glow Wire Test (IEC 695-2-1) °C : 960 °C
NEMA Class
Certificates :
SGSFIMKO_EK
