EK / EKH / EKH 80-G

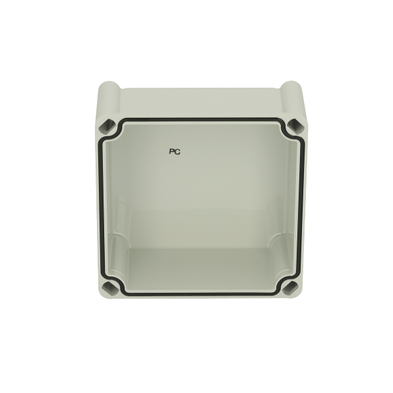

EKH 80-G 3730555

Dimensions 190 x 190 x 80.

  • PC :
Technical data
Product:

Product nr: 3730555

Description: Cover

Remarks: Opaque. PC

Package: 8

Unit: Piece

EAN: 6418074000217

SSTL number: 3420153

Electric No. Denmark: 8212007039

Electric No. Sweden: 2537902

ETIM: EC002620 Component for installation (switchgear cabinet)

Dimensions :

Height (mm): 190

Width (mm): 190

Depth (mm): 80

Height (inch) : 7.48

Width (inch) : 7.48

Depth (inch) : 3.15

Materials :

Material:

Temperatures:

Temperature °C (short term) : -40 … 120

Temperature °C (continuous) :

Temperature °F (short term) : -40 … 250

Temperature °F (continuous) : -40 … 175

Ratings :

Ingress Protection (EN 60529) :

Impact Resistance (EN 62262) :

Electrical insulation : Not insulated

Halogen free (DIN/VDE 0472, Part 815) : 0

UV resistance : -

Flammability Rating :

Glow Wire Test (IEC 60695) : C

NEMA Class :

Product is connected to following catalogs :

EK / EKH / EKH 80-G

CAD Files
Certificates and Declarations
Contact

EKH 80-G

Fibox

Sample image

Order symbol: EKH 80-G

Product nbr: 3730555

Description: Cover

Remarks: Opaque. PC

EAN: 6418074000217

El. number:

  • Finland: 3420153
  • Denmark: 8212007039
  • Sweden: 2537902

Including:

EKH
Dimensions: Height Width Depth
mm: 190 190 80
inch: 7.48 7.48 3.15
Materials:
Material:
Base colour:
Cover colour:
Gasket material:
Temperatures:
Temperature °C (short term):: -40 … 120
Temperature °C (continuous):
Temperature °F (short term): -40 … 250
Temperature °F (continuous): -40 … 175
Accessories:
EKHVT Back Panel. for enclosures:
(148 x 148 x 1)
EKV 12 DIN-35 Mounting rail. for enclosures:
(160 x 35 x 1)
Rating:
Ingress protection (EN 60529):
Impact Resistance (EN 62262):
Electrical insulation: Not insulated
Halogen free (DIN/VDE 0472, Part 815): 0
UV resistance: -
Flammability Rating:
Glow Wire Test (IEC 695-2-1) °C: C
NEMA Class
Certificates:
SGSFIMKO_EK
