Description : Hinged cover, PC
Remarks : Grey
Package : 8
Unit : Piece
EAN : 6418074040541
SSTL number : 3420787
Electric No. Denmark : 8212012723
Electric No. Sweden : 2538220
ETIM : EC002620
Ingress Protection : IP65
Height (mm) : 190
Width (mm) : 190
Depth (mm) : 30
Height (inch) : 7.48
Width (inch) : 7.48
Depth (inch) : 1.18
Material : Polycarbonate
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Ingress Protection (EN 60529): IP65
Electrical insulation : Totally insulated
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 60695): 960C
CAD Drawings
- 3530147_FIBOX_EKH30G_2FSH.step
Please note, that we need you permission in order for you to view the CAD files.
EKH 30-G-2FSH

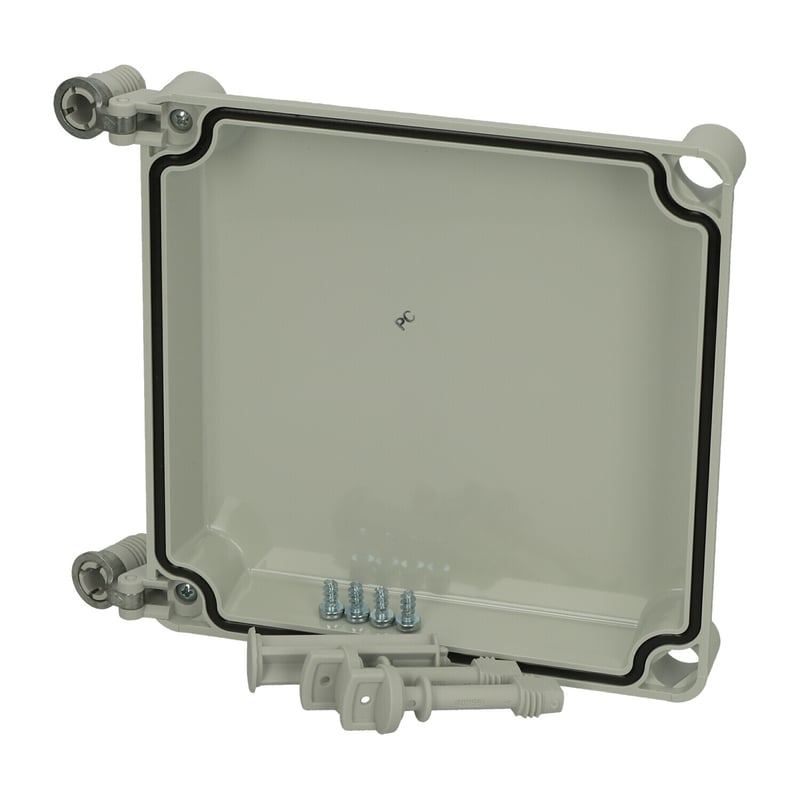

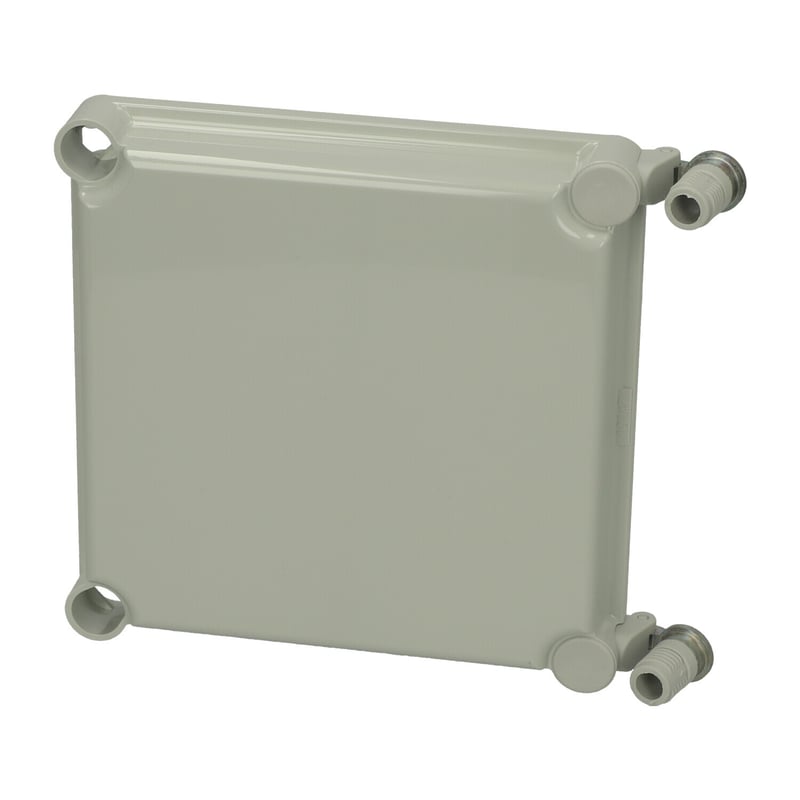

Sample image
Order symbol : EKH 30-G-2FSH
Product nr : 3530147
Description : Hinged cover, PC
Remarks : Grey
EAN : 6418074040541
El. number :
- Finland : 3420787
- Denmark : 8212012723
- Sweden : 2538220
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 190 | 190 | 30 |
| inch : | 7.48 | 7.48 | 1.18 |
| Materials : | |
|---|---|
| Material : | Polycarbonate |
| Cover colour : | RAL 7035 -light grey |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -40 … 80 |
| Temperature °F (continuous) : | -40 … 175 |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP65; |
| electrical_insulation : | Totally insulated |
| UV resistance : | UL 746C |
| Flammability Rating : | UL 94 V0 |
| Glow Wire Test (IEC 695-2-1) °C : | 960C |
