MC EKHA 191913 T-2FSH 1x9M
2539600
Dimensions - 190 x 190 x 130
Description : Enclosure, PC
Remarks : Transparent cover
Package : 4
EAN : 6418074320285
SSTL number : 3424778
Electric No. Denmark : 8212052916
Electric No. Sweden : 2507754
ETIM : EC000261
Ingress Protection : IP66/67 | IK08
Height (mm) : 190
Width (mm) : 190
Depth (mm) : 130
Height (inch) : 7.48
Width (inch) : 7.48
Depth (inch) : 5.12
Material : Polycarbonate
Base colour : RAL_7035
Cover colour : Clear transparent
Gasket material : Polyurethane
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Standards : EN 62208:2011, IEC 62208:2011
Ingress Protection (EN 60529): IP66/67
Impact Resistance (EN 62262): IK08
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 60695): 960C
CAD Drawings
- 2539600_FIBOX_MC_EKHA_191913T_2FSH_1x9M.step
Please note, that we need you permission in order for you to view the CAD files.
MC EKHA 191913 T-2FSH 1x9M

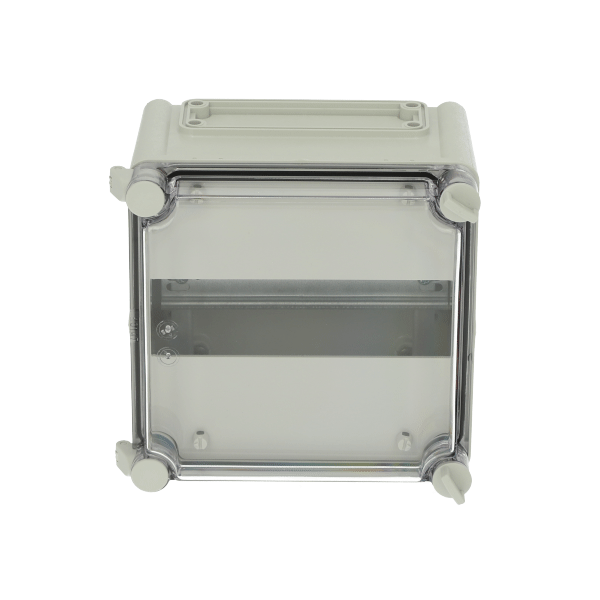

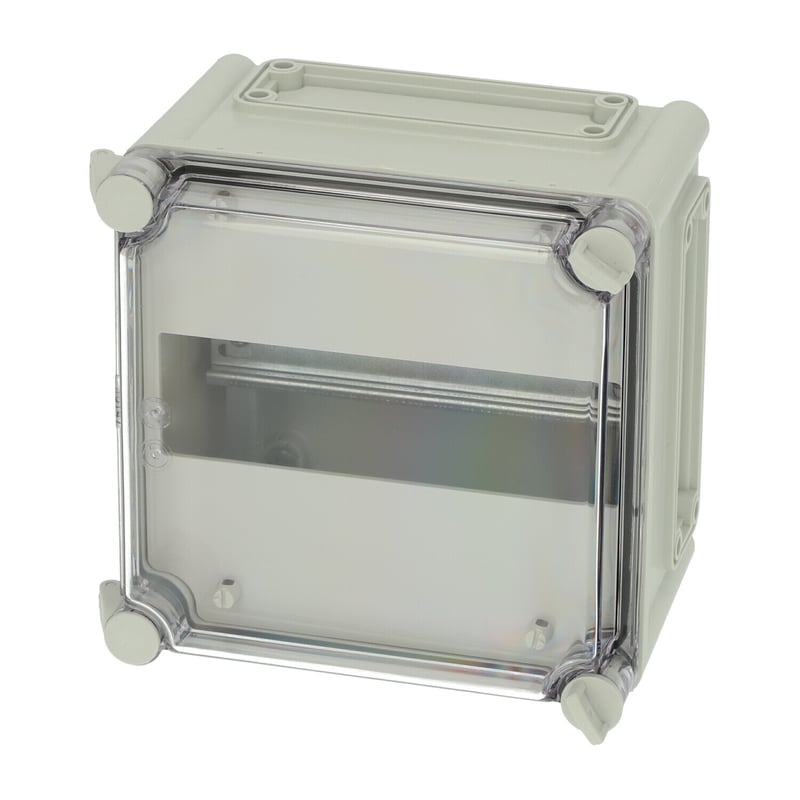

Sample image
Order symbol : MC EKHA 191913 T-2FSH 1x9M
Product nr : 2539600
Description : Enclosure, PC
Remarks : Transparent cover
EAN : 6418074320285
El. number :
- Finland : 3424778
- Denmark : 8212052916
- Sweden : 2507754

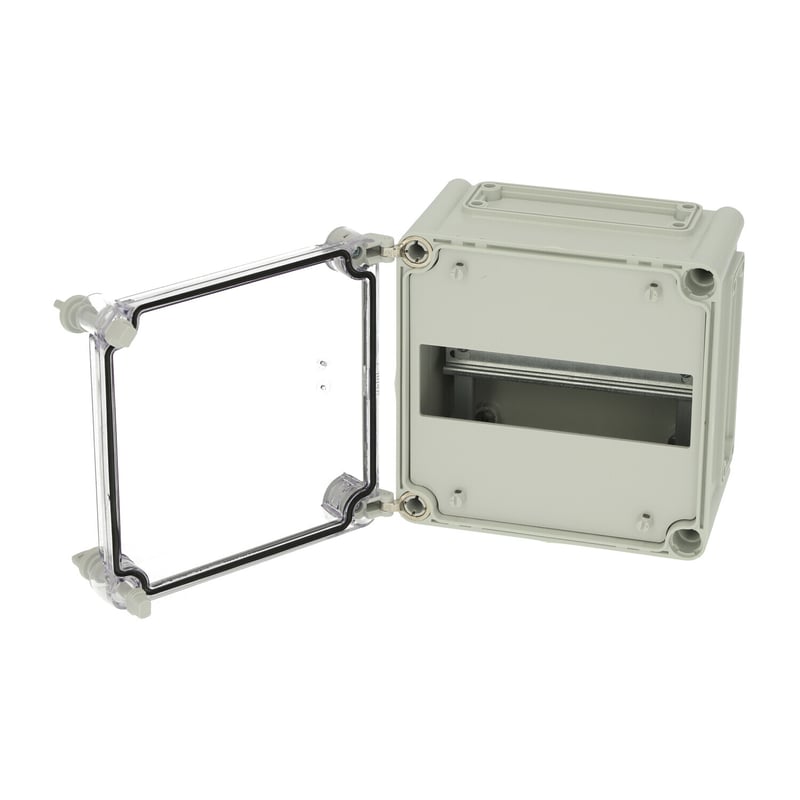

Including : Flanged Base with screws for mounting plate, cover with PUR gasket and polyamide cover screws. DIN rail system included.
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 190 | 190 | 130 |
| inch : | 7.48 | 7.48 | 5.12 |
| Materials : | |
|---|---|
| Material : | Polycarbonate |
| Base colour : | RAL_7035 |
| Cover colour : | Clear transparent |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -40 … 80 |
| Temperature °F (continuous) : | -40 … 175 |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP66/67; |
| Impact Resistance (EN 62262): | IK08; |
| electrical_insulation : | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | UL 746C |
| Flammability Rating : | UL 94 V0 |
| Glow Wire Test (IEC 695-2-1) °C : | 960C |
