EK - Accessories

Size : 148 x 148 x 1 mm

190x190x130, 190x190x180

EKJVT
3770549

Size : 238 x 148 x 1 mm

280x190x130, 280x190x180

EKMVT
3770550

Size : 338 x 148 x 1 mm

380x190x130, 380x190x180

EKOVT
3770551

Size : 238 x 238 x 1 mm

280x280x130, 280x280x180, 560x280x130

EKPVT
3770552

Size : 338 x 238 x 1 mm

380x280x130, 380x280x180, 380x280x230, 560x380x180

EKTVT
3770553

Size : 518 x 238 x 1 mm

560x280x130

EKUVT
3770554

Size : 518 x 338 x 1 mm

560x380x180

MPI EKH 1919
3770100

Material : ABS
Size : 167 x 167 x 4 mm

MPI EKJ 2819
3770101

Material : ABS
Size : 259 x 164 x 4 mm

MPI EKO 2828
3770102

Material : ABS
Size : 244 x 244 x 4 mm

MPI EKP 3828
3770103

Material : ABS
Size : 338 x 238 x 4 mm

EKV 12
3770647

Size : 160 x 35 x 1 mm

190x190x130-380x190x180

EKV 22
3770648

Size : 235 x 35 x 1 mm

280x280x130-560x280x130

EKV 32
3770649

Size : 335 x 35 x 1 mm

380x190x130, 380x190x180, 380x280x130, 380x280x180, 380x280x230, 560x380x180,

EKV 50
3770699

Cover plate for 12 modules

Size : 515 x 35 x 1 mm

560x280x130

DRCP 12M
5026195

Size : 214 x 52 x 7 mm

(1 module = 17,5 mm)

(1 module = 17,5 mm)

FX20 SET
3570791

Corner stud set (4 pcs)

incl. screws

MB 10791
3730791

Corner stud (separate)

MB 10792
3730792

Front plate screw

MSM PT 5x10
4712049

Mounting screw

PT 60 x 11 PH2 SET
3570580

Mounting screw set (4pcs)

For Ø5,2 mm (mounting) pods

MB 10686
3730686

Set of 2 spacers including screws

(15/34 mm)

EKJZR
3730153

Size : 280 x 190 x 50 mm

280x190x130, 280x190x180

EKMZR
3730152

Size : 380 x 190 x 50 mm

380x190x130, 380x190x180

EKOZR
3730093

Size : 280 x 280 x 50 mm

280x280x130, 280x280x180

EKPZR
3730141

Size : 380 x 280 x 50 mm

380x280x130, 380x280x180, 380x280x230

EKTZR
3730142

Size : 560 x 280 x 50 mm

560x280x130

EKUZR
3730323

Blind plug for cover corner on hinged side when cover screws are not used

Size : 560 x 380 x 50 mm

560x380x180

MB 60MM
3532385

Bus-bar holder set

incl. screws and support

MB 10622
3530622

PC Hinge set, 1 pair

incl. screws and drill template

EKZKS 1
3570570

Hinge set, metal

MB 10523
3560523

MB 10674
3770674

Wall fastening lug (4 pcs)

incl. screws

HS 10255
3540255

Wing head

for 30 mm cover

CS 10256
3540256

Cross head

for 30/100 mm cover

SS 10535
3540535

Slotted head (sealable)

for 30 mm cover

SS 10544
3570544

Slotted head (quick-lock)

for 30/100 mm cover

HS 10533
3570533

Wing head (quick-lock)

for 30 mm cover

HS 10532
3570532

Quick-locking wing head (hinged)

for 30 mm cover

MB 10534
3540534

Threaded bushing

to be ordered separately with quick-lock screws

CS 10563
3540563

Cross head

for 80 mm cover

HS 10562
3540562

Wing head

for 80 mm cover

DS 10581
3540581

Triangle head

for 30/80/100 mm cover

MB 10673
3570673

Triangular key

for cover screw DS 10581

CS 10256-4
3544256

Set of 4 cross head screws

for 30/100 mm cover

CS 10256-6
3546256

Set of 6 cross head screws

for 30/100 mm cover

CS 10563-4
3544563

Set of 4 cross head screws

for 80 mm cover

MS PROF 19
3510840

MS PROF 28
3510841

MS PROF 38
3510842

MS PROF 56
3510843

EKT PROF 56
3510844

DIN terminal rail

Size : 502 x 1 x 1 mm

DIN terminal rail

MB 10598 EK/Solid lock
3570598

Lock and two keys

for 30mm covers only

MB 10671
3570671

Connector set, size 1

incl. 4 screws

MB 10670
3570670

Connector set, size 2

incl. 4 screws

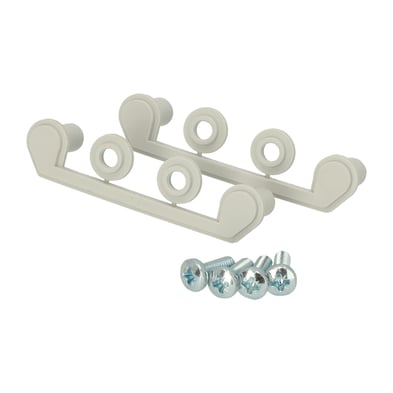

MB 10672
3570672

Connector set, size 3

incl. 4 screws

MB 10546
3530546

Cover plate

size 2

MB 10324
3530324

Cover plate

size 3

MB 10862
3530862

Size : 216 x 85 x 10 mm

2xM16+3xM20+2xM25+2xM32, PUR gasket

MB 10857
3530857

N/PE terminal bracket set

4xM12+4xM12/M20+4xM16/M25

MB 26069
5126029

incl. 2 pcs of terminals (16-holes)

MS BAR CLAMP
4712232

Terminal bus-bar clamp, 25 mm²

MR 26145
5026145

Terminal bus-bar clamp, 35 mm²

MS BAR 2+18
4712199

PE/N terminal bus-bar 25+ 10 mm²

Size : 10 x 7 x 186 mm

FA 12053
4712053

Spacer 14 mm

M5 self-cutting

FA 12052
4712052

Spacer 42 mm

M5 self-cutting

MB 10472
3570472

Plastic head screw (M6x30) for the assembly of bases

MB 10474
3570474

Plastic head screw (M8x30) for the assembly of bases

M-6
3570576

Lock nut for plastic head screws

M6

M-8
3570577

Lock nut for plastic head screws

M8

MB 10717
3530717

Connection bridge and gasket

Size 2

MB 10718
3530718

Connection bridge and gasket

Size 3

EKZKH1
3570613

Sleeve lock for connecting rail

MB 10215
3530215

Cover plate

size 1

MB 10014
3530014

12x PG16

MB 10596
3530596
