Description : Enclosure, PC
Remarks : Clear transparent hinged cover
Package : 1
Unit : Piece
EAN : 6418074062055
Electric No. Denmark : 8212016949
ETIM : EC000261
Ingress Protection : IP65 | IK07
Height (mm) : 320
Width (mm) : 260
Depth (mm) : 129
Height (inch) : 12.6
Width (inch) : 10.24
Depth (inch) : 5.08
Material : Polycarbonate
Gasket material : Polyurethane
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Standards : EN 62208:2011, IEC 62208:2011
Ingress Protection (EN 60529): IP65
Impact Resistance (EN 62262): IK07
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 60695): 960C

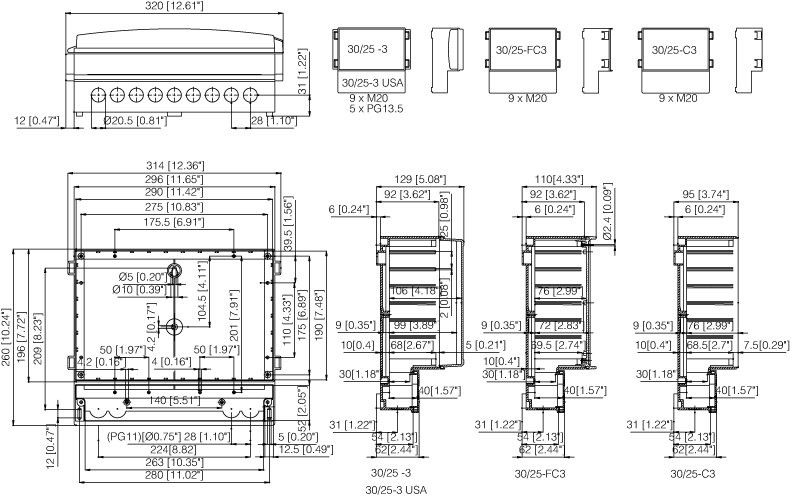

CAD Drawings
- cm30253b.dwg
- cm30253b.dxf
- FIBOX_CM3025-3C.x_t
- FIBOX_CM3025-3C.zip
- FIBOX_CM3025-30_TCB.x_t
- FIBOX_CM3025-30_TCB.zip
Please note, that we need you permission in order for you to view the CAD files.
PC 30/25-3TT
Sample image
Order symbol : PC 30/25-3TT
Product nr : 7526019
Description : Enclosure, PC
Remarks : Clear transparent hinged cover
EAN : 6418074062055
El. number :
- Denmark : 8212016949
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 320 | 260 | 129 |
| inch : | 12.6 | 10.24 | 5.08 |
| Materials : | |
|---|---|
| Material : | Polycarbonate |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -40 … 80 |
| Temperature °F (continuous) : | -40 … 175 |
| Accessories : | |
|---|---|
| FP 30/25 |
Front plate (aluminium), for enclosures:
(290 x 190 x 1) |
| MP 30/25 |
Mounting plate, for enclosures:
(282 x 215 x 1) |
| FC PC 30/25 |
Frame of PC front plate, for enclosures:
(296 x 196 x 30) |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP65; |
| Impact Resistance (EN 62262): | IK07; |
| electrical_insulation : | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | UL 746C |
| Flammability Rating : | UL 94 V0 |
| Glow Wire Test (IEC 695-2-1) °C : | 960C |
| Certificates : | |
|---|---|
| SGSFIMKO_CARDpc | |
