Description : Blind flange set, size 2
EAN : 6418074092489
SSTL number : 3424820
Electric No. Sweden : 2507790
ETIM : EC002620
Ingress Protection : IP65 | IK08
Height (mm) : 85
Width (mm) : 216
Depth (mm) : 10
Height (inch) : 3.35
Width (inch) : 8.5
Depth (inch) : 0.39
Material : Polycarbonate
Gasket material : EPDM
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Ingress Protection (EN 60529): IP65
Impact Resistance (EN 62262): IK08
Flammability Rating : UL 94 5VA
Glow Wire Test (IEC 60695): 960C
CAD Drawings
Please note, that we need you permission in order for you to view the CAD files.
MB 10546 GB set

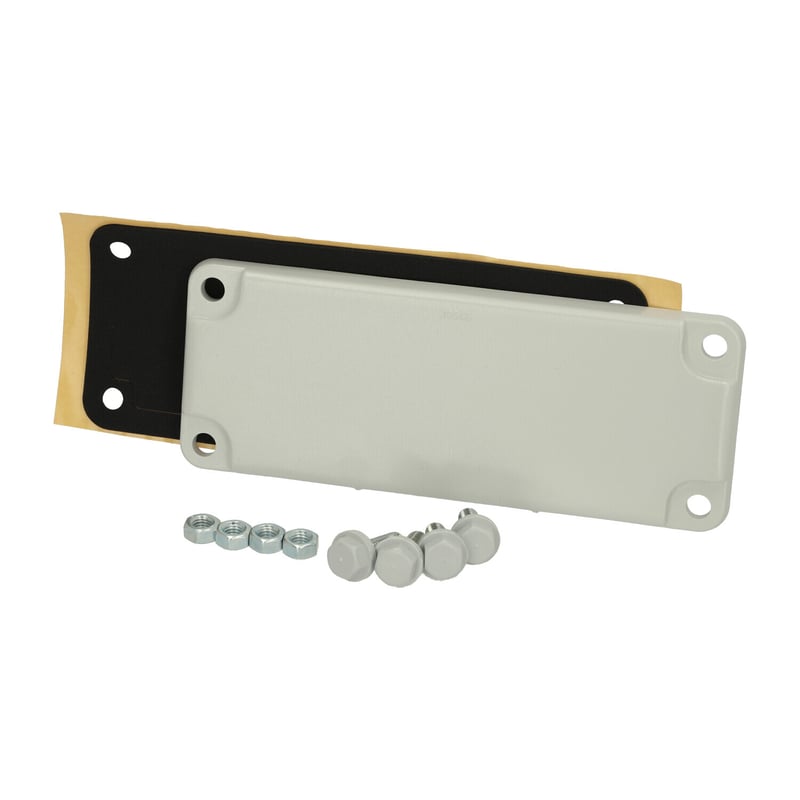

Sample image
Order symbol : MB 10546 GB set
Product nr : 3590546
Description : Blind flange set, size 2
EAN : 6418074092489
El. number :
- Finland : 3424820
- Sweden : 2507790
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 85 | 216 | 10 |
| inch : | 3.35 | 8.5 | 0.39 |
| Materials : | |
|---|---|
| Material : | Polycarbonate |
| Gasket material : | EPDM |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -40 … 80 |
| Temperature °F (continuous) : | -40 … 175 |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP65; |
| Impact Resistance (EN 62262): | IK08; |
| electrical_insulation : | Not insulated |
| UV resistance : | - |
| Flammability Rating : | UL 94 5VA |
| Glow Wire Test (IEC 695-2-1) °C : | 960C |
