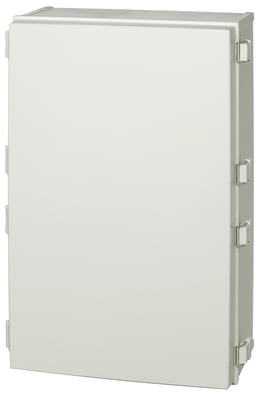

CAB_PC_604022_G
Next slide
CAB_PC_604022_G

CAB / CAB 6040 / CAB PC 604022 G

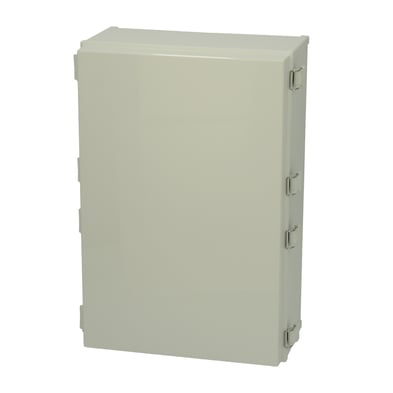

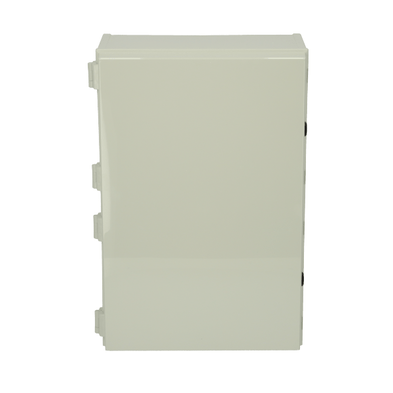

CAB PC 604022 G 8113370

UL Code : 8143370

UL Name : UL CAB PC 604022 G

Dimensions 600 x 400 x 220.

Including : Cabinet base. door with PUR gasket. latches. screws for mounting plate/DIN-rail and corner plugs.

  • PC : IP65; IK08; EN 62208:2011. IEC 62208:2011,EN 61439-3:2012. IEC 61439-3:2012,EN 61439-4:2013. IEC 61439-4:2012
Technical data
Product:

Product nr : 8113370

Description : Cabinet, PC, Grey door

Remarks : Latches on the long side

Package : 1

Unit : Piece

EAN : 6418074020444

SSTL number : 3424126

Electric No. Denmark : 8212020281

Electric No. Sweden : 2539983

ETIM : EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions :

Height (mm) : 600

Width (mm) : 400

Depth (mm) : 220

Height (inch) : 23.62

Width (inch) : 15.75

Depth (inch) : 8.66

Materials :

Material : Polycarbonate

Base colour : RAL 7035 -light grey

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C (short term) : -40 … 120

Temperature °C (continuous) : -40 … 80

Temperature °F (short term) : -40 … 250

Temperature °F (continuous) : -40 … 175

Ratings :

Ingress Protection (EN 60529): IP65;

Impact Resistance (EN 62262): IK08;

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : 1

UV resistance : UL 508

Flammability Rating : UL 746C 5"

Glow Wire Test (IEC 60695): 960 °C

NEMA Class :

Product is connected to following catalogues :

CAB / CAB 6040 / CAB PC 604022 G

CAB PC 604022 G

Fibox

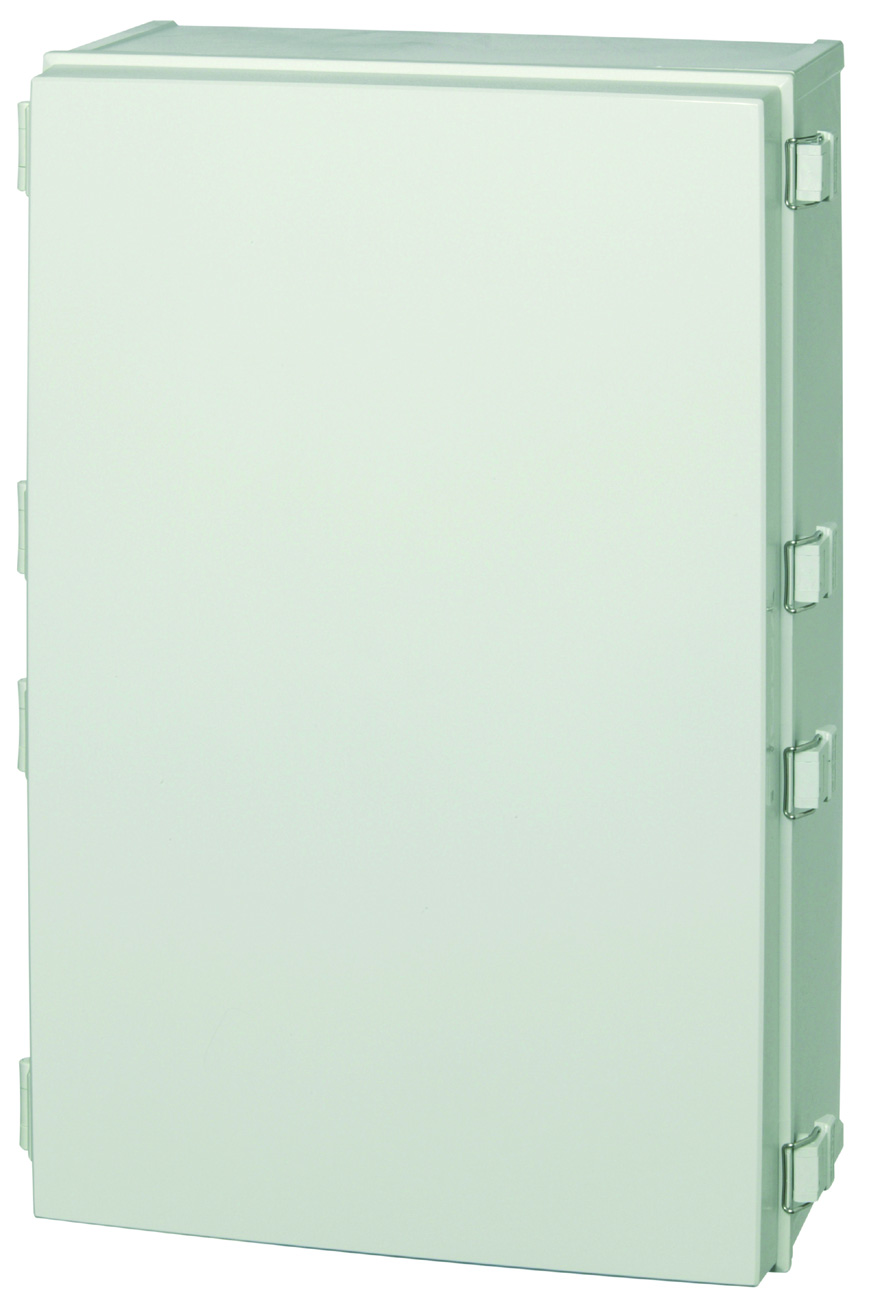

CAB_PC_604022_G

Sample image

Order symbol : CAB PC 604022 G

Product nr : 8113370

UL Code : 8143370

UL Name : UL CAB PC 604022 G

Description : Cabinet, PC, Grey door

Remarks : Latches on the long side

EAN : 6418074020444

El. number :

  • Finland : 3424126
  • Denmark : 8212020281
  • Sweden : 2539983

Including : Cabinet base. door with PUR gasket. latches. screws for mounting plate/DIN-rail and corner plugs.

CAB6040S
Dimensions : Height Width Depth
mm : 600 400 220
inch : 23.62 15.75 8.66
Materials :
Material : Polycarbonate
Base colour : RAL 7035 -light grey
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperatures :
Temperature °C (short term) : -40 … 120
Temperature °C (continuous) : -40 … 80
Temperature °F (short term) : -40 … 250
Temperature °F (continuous) : -40 … 175
Rating :
Ingress protection (EN 60529): IP65;
Impact Resistance (EN 62262): IK08;
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance : UL 508
Flammability Rating : UL 746C 5"
Glow Wire Test (IEC 695-2-1) °C : 960 °C
NEMA Class
Certificates :
Certificate FI 40854
