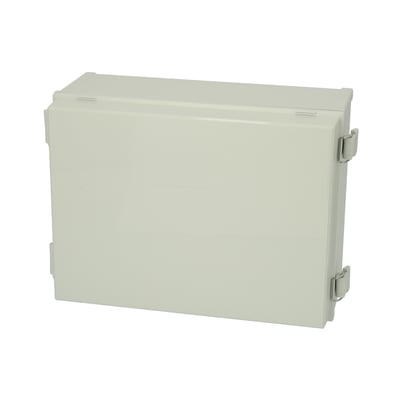

CAB PC 304018 G 8113351
UL Code : 8143351
UL Name : UL CAB PC 304018 G
Dimensions 300 x 400 x 180
Dimensions 11.81 x 15.75 x 7.09

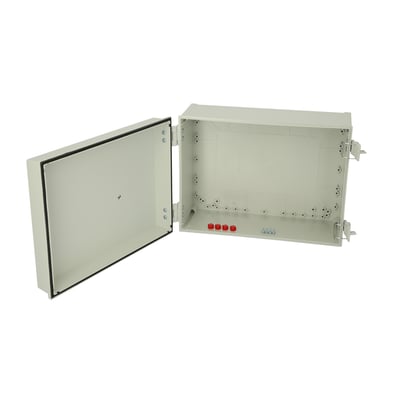

Including : Cabinet base. door with PUR gasket. latches. screws for mounting plate/DIN-rail and corner plugs.
- PC : IP65; IK08
Technical data
Product nr : 8113351
Description : Cabinet, PC, Grey door
Remarks : Latches on the short side
Package : 1
Unit : Piece
EAN : 6418074020222
SSTL number : 3424116
Electric No. Denmark : 8212020427
Electric No. Sweden : 2539973
ETIM : EC000261 Enclosure/Switchgear cabinet (empty)
Height (mm) : 300
Width (mm) : 400
Depth (mm) : 180
Height (inch) : 11.81
Width (inch) : 15.75
Depth (inch) : 7.09
Material : Polycarbonate
Base colour : RAL 7035 -light grey
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperature °C (short term) : -40 … 120
Temperature °C (continuous) : -40 … 80
Temperature °F (short term) : -40 … 250
Temperature °F (continuous) : -40 … 175
Standards EN 62208:2011. IEC 62208:2011,EN 61439-3:2012. IEC 61439-3:2012,EN 61439-4:2013. IEC 61439-4:2012
Ingress Protection (EN 60529): IP65
Impact Resistance (EN 62262): IK08
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 508
Flammability Rating : UL 746C 5"
Glow Wire Test (IEC 60695): 960 °C
/ /
Dimensional Drawings
CAD Files
Please note, that we need your permission in order for you to view the CAD files.
Certificates and Declarations
Catalogues
Contact
Accessories
CAB PC 304018 G

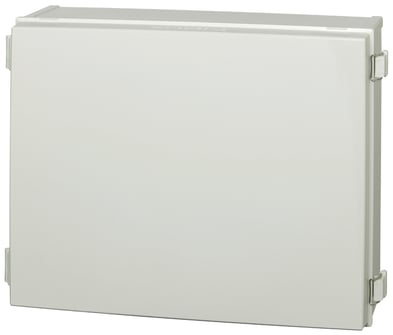

Sample image
Order symbol : CAB PC 304018 G
Product nr : 8113351
UL Code : 8143351
UL Name : UL CAB PC 304018 G
Description : Cabinet, PC, Grey door
Remarks : Latches on the short side
EAN : 6418074020222
El. number :
- Finland : 3424116
- Denmark : 8212020427
- Sweden : 2539973
Including : Cabinet base. door with PUR gasket. latches. screws for mounting plate/DIN-rail and corner plugs.
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 300 | 400 | 180 |
| inch : | 11.81 | 15.75 | 7.09 |
| Materials : | |
|---|---|
| Material : | Polycarbonate |
| Base colour : | RAL 7035 -light grey |
| Cover colour : | RAL 7035 -light grey |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (short term) : | -40 … 120 |
| Temperature °C (continuous) : | -40 … 80 |
| Temperature °F (short term) : | -40 … 250 |
| Temperature °F (continuous) : | -40 … 175 |
| Accessories : | |
|---|---|
| DRF 43/44 | DIN rail frame set, for enclosures: |
| MB 12225 AL | Swing door set |
| EKIV 37 |
DIN-35 Mounting rail, for enclosures:
(366 x 35 x 1) |
| EKIV 27 |
DIN-35 Mounting rail, for enclosures:
(266 x 35 x 1) |
| EKIV 43 PL |
Mounting plate, plastic, for enclosures:
(370 x 270 x 2) |
| EKIV 43 |
Mounting plate, for enclosures:
(370 x 270 x 1) |
| FP A 43 |
Swing-out door/Front plate (aluminium), for enclosures:
(268 x 368 x 1) |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP65; |
| Impact Resistance (EN 62262): | IK08; |
| electrical_insulation : | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | UL 508 |
| Flammability Rating : | UL 746C 5" |
| Glow Wire Test (IEC 695-2-1) °C : | 960 °C |
| Certificates : | |
|---|---|
| Certificate FI 40854 | |
