CAB / CAB 2030 / CAB ABS 203018 T

CAB ABS 203018 T 8183031

Dimensions 200 x 300 x 180.

Including : Cabinet base. door with PUR gasket. latches. screws for mounting plate/DIN-rail and corner plugs.

PC : IP65; IK08; EN 62208:2011. IEC 62208:2011,EN 61439-3:2012. IEC 61439-3:2012,EN 61439-4:2013. IEC 61439-4:2012

Product number : 8183031 Download product card

Technical data

Product:

Product nr: 8183031

Description: Cabinet. ABS. Smoked transparent door

Remarks: Latch on the short side

Package: 1

Unit: Piece

EAN: 6418074020093

SSTL number: 3424353

Electric No. Denmark: 8212020715

Electric No. Sweden: 2540033

ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions :

Height (mm): 200

Width (mm): 300

Depth (mm): 180

Height (inch) : 7.87

Width (inch) : 11.81

Depth (inch) : 7.09

Materials :

Material: ABS

Base colour : RAL 7035 -light grey

Cover colour : Clear transparent

Gasket material : Polyurethane

Temperatures:

Temperature °C (short term) : -40 … 80

Temperature °C (continuous) : -40 … 60

Temperature °F (short term) : -40 … 175

Temperature °F (continuous) : -40 … 140

Ratings :

Ingress Protection (EN 60529) : IP65;

Impact Resistance (EN 62262) : IK08;

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : 1

UV resistance : -

Flammability Rating : UL 94 HB

Glow Wire Test (IEC 60695) : 650 °C

NEMA Class :

Product is connected to following catalogs :

CAB / CAB 2030 / CAB ABS 203018 T

Dimensional Drawings

CAD Files

Contact

Accessories

MB 12225 AL

Swing door kit

EKIV 27

DIN-35 Mounting rail. for enclosures:
(266 x 35 x 1)

DRF 23

DIN rail frame kit. for enclosures:

FP A 23

Swing-out door/Front panel (aluminum). for enclosures:
(168 x 268 x 1)

EKIV 17

DIN-35 Mounting rail. for enclosures:
(166 x 35 x 1)

EKIV 23

Back Panel. for enclosures:
(170 x 270 x 1)

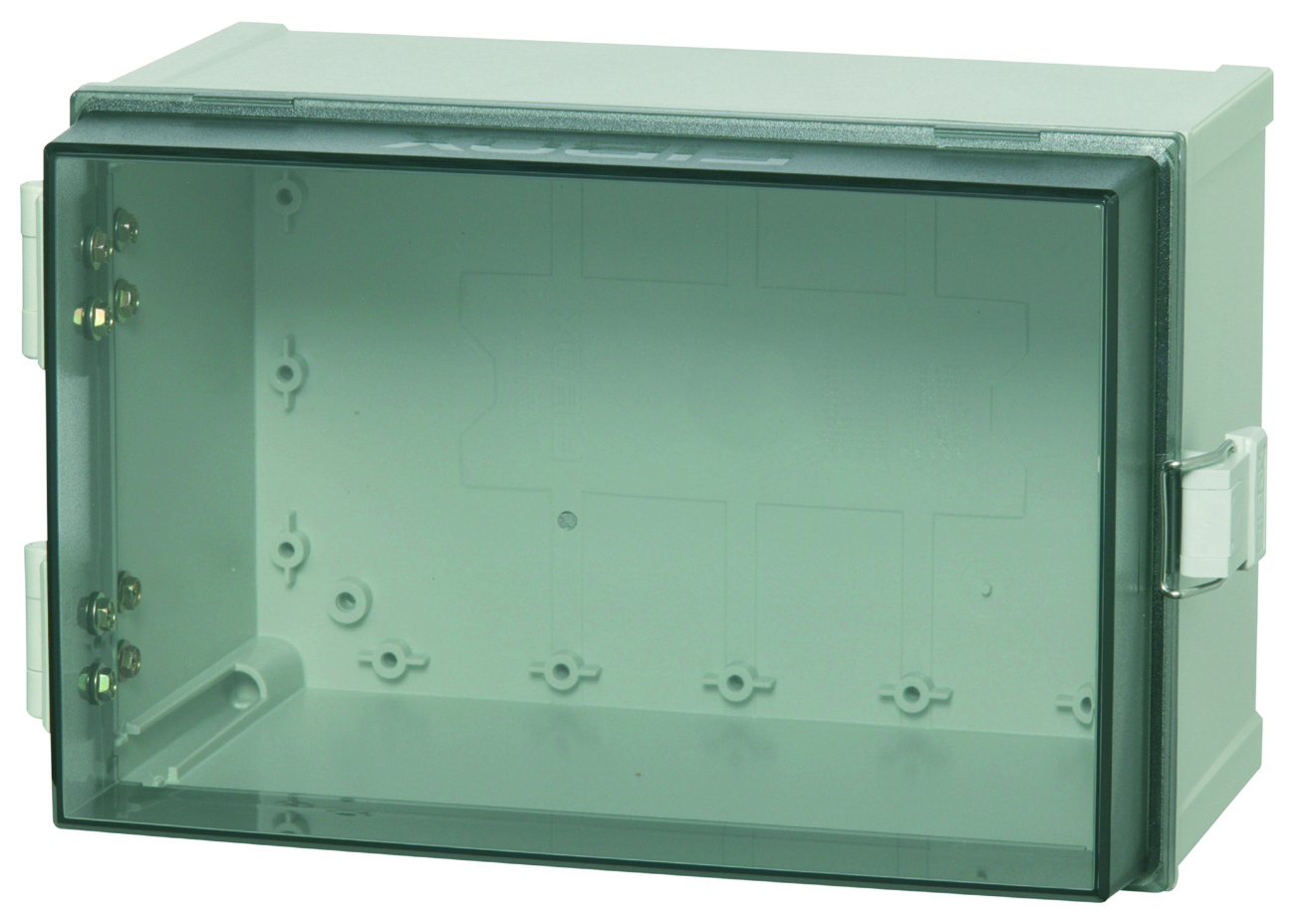

Sample image

Order symbol: CAB ABS 203018 T

Product nbr: 8183031

Description: Cabinet. ABS. Smoked transparent door

Remarks: Latch on the short side

EAN: 6418074020093

El. number:

Finland: 3424353
Denmark: 8212020715
Sweden: 2540033

Including: Cabinet base. door with PUR gasket. latches. screws for mounting plate/DIN-rail and corner plugs.

Dimensions:	Height	Width	Depth
mm:	200	300	180
inch:	7.87	11.81	7.09

Materials:
Material:	ABS
Base colour:	RAL 7035 -light grey
Cover colour:	Clear transparent
Gasket material:	Polyurethane

Temperatures:
Temperature °C (short term)::	-40 … 80
Temperature °C (continuous):	-40 … 60
Temperature °F (short term):	-40 … 175
Temperature °F (continuous):	-40 … 140

Accessories:
MB 12225 AL	Swing door kit
EKIV 27	DIN-35 Mounting rail. for enclosures: (266 x 35 x 1)
DRF 23	DIN rail frame kit. for enclosures:
FP A 23	Swing-out door/Front panel (aluminum). for enclosures: (168 x 268 x 1)
EKIV 17	DIN-35 Mounting rail. for enclosures: (166 x 35 x 1)
EKIV 23	Back Panel. for enclosures: (170 x 270 x 1)

Rating:
Ingress protection (EN 60529):	IP65;
Impact Resistance (EN 62262):	IK08;
Electrical insulation:	Totally insulated
Halogen free (DIN/VDE 0472, Part 815):	1
UV resistance:	-
Flammability Rating:	UL 94 HB
Glow Wire Test (IEC 695-2-1) °C:	650 °C
NEMA Class

Certificates:
Certificate FI 40854
