    Cabinet base. door with PUR gasket. latches. screws for mounting plate/DIN-rail and corner plugs.

Previous slide
CAB ABS 251511 G product image 1
Next slide
CAB ABS 251511 G thumbnail image 1

CAB / CAB 2515 / CAB ABS 251511 G

CAB ABS 251511 G 8183325

Dimensions 250 x 150 x 110

Dimensions 9.84 x 5.91 x 4.33

Including : Cabinet base. door with PUR gasket. latches. screws for mounting plate/DIN-rail and corner plugs.

  • PC : IP65; IK08
Technical data
Product:

Product nr : 8183325

Description : Cabinet, ABS, Grey door

Remarks : Latches on the long side

Package : 1

Unit : Piece

EAN : 6418074048998

ETIM : EC000261

Dimensions :

Height (mm) : 250

Width (mm) : 150

Depth (mm) : 110

Height (inch) : 9.84

Width (inch) : 5.91

Depth (inch) : 4.33

Materials :

Material : ABS

Base colour : RAL_7035

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 60

Temperature °F : -40 … 140

Ratings :

Standards EN_62208:2011__IEC_62208:2011, EN_61439-3:2012__IEC_61439-3:2012, EN_61439-4:2013__IEC_61439-4:2012

Ingress Protection (EN 60529): IP65

Impact Resistance (EN 62262): IK08

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

Flammability Rating : UL 94 HB

Glow Wire Test (IEC 60695): 650C

Product is connected to following catalogues :

CAB / CAB 2515 / CAB ABS 251511 G

CAB ABS 251511 G

Fibox

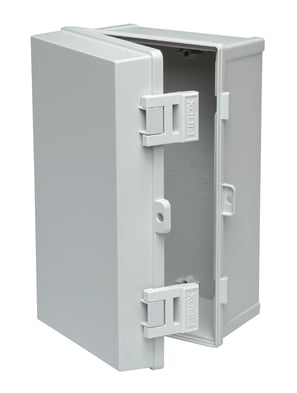

CAB_2515_G

Sample image

Order symbol : CAB ABS 251511 G

Product nr : 8183325

Description : Cabinet, ABS, Grey door

Remarks : Latches on the long side

EAN : 6418074048998

Including : Cabinet base. door with PUR gasket. latches. screws for mounting plate/DIN-rail and corner plugs.

CAB_250x150x110
Dimensions : Height Width Depth
mm : 250 150 110
inch : 9.84 5.91 4.33
Materials :
Material : ABS
Base colour : RAL_7035
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperatures :
Temperature °C (continuous) : -40 … 60
Temperature °F (continuous) : -40 … 140
Accessories :
EKIV 2515 PL Mounting plate, plastic, for enclosures:
(208 x 125 x 2)
EKIV 2515 Mounting plate, for enclosures:
(208 x 125 x 1)
Ratings :
Ingress protection (EN 60529): IP65;
Impact Resistance (EN 62262): IK08;
electrical_insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : -
Flammability Rating : UL 94 HB
Glow Wire Test (IEC 695-2-1) °C : 650C
Certificates :
Certificate FI 40854
