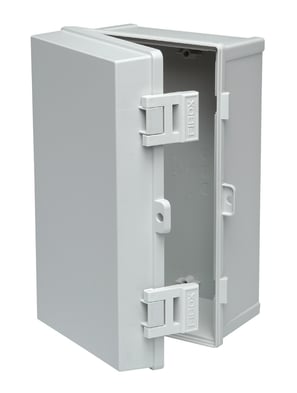

CAB / CAB 2515 / CAB PC 251511 G

CAB PC 251511 G 8113325

Dimensions 250 x 150 x 110.

Including : Cabinet base. door with PUR gasket. latches. screws for mounting plate/DIN-rail and corner plugs.

PC : IP65; IK08; EN 62208:2011. IEC 62208:2011,EN 61439-3:2012. IEC 61439-3:2012,EN 61439-4:2013. IEC 61439-4:2012

Product number : 8113325 Download product card

Technical data

Product:

Product nr: 8113325

Description: Opaque door

Remarks: Latches on the long side

Package: 1

Unit: Piece

EAN: 6418074048950

SSTL number:

Electric No. Denmark:

Electric No. Sweden:

ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions :

Height (mm): 250

Width (mm): 150

Depth (mm): 110

Height (inch) : 9.84

Width (inch) : 5.91

Depth (inch) : 4.33

Materials :

Material: Polycarbonate

Base colour : RAL 7035 -light grey

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures:

Temperature °C (short term) : -40 … 120

Temperature °C (continuous) : -40 … 80

Temperature °F (short term) : -40 … 250

Temperature °F (continuous) : -40 … 175

Ratings :

Ingress Protection (EN 60529) : IP65;

Impact Resistance (EN 62262) : IK08;

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : 1

UV resistance : UL 508

Flammability Rating : UL 746C 5"

Glow Wire Test (IEC 60695) : 960 °C

NEMA Class :

Product is connected to following catalogs :

CAB / CAB 2515 / CAB PC 251511 G

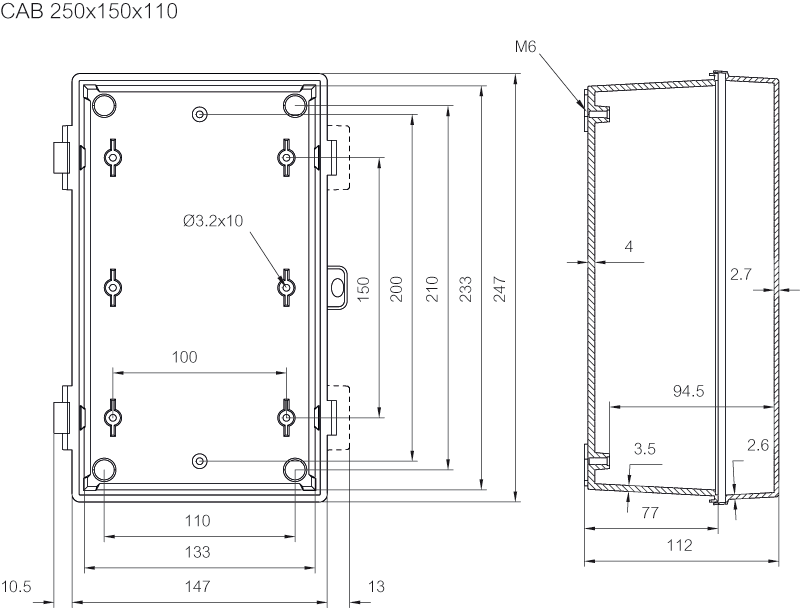

Dimensional Drawings

CAD Files

Contact

Accessories

EKIV 2515 PL

Back Panel. plastic. for enclosures:
(208 x 125 x 2)

EKIV 2515

Back Panel. for enclosures:
(208 x 125 x 1)

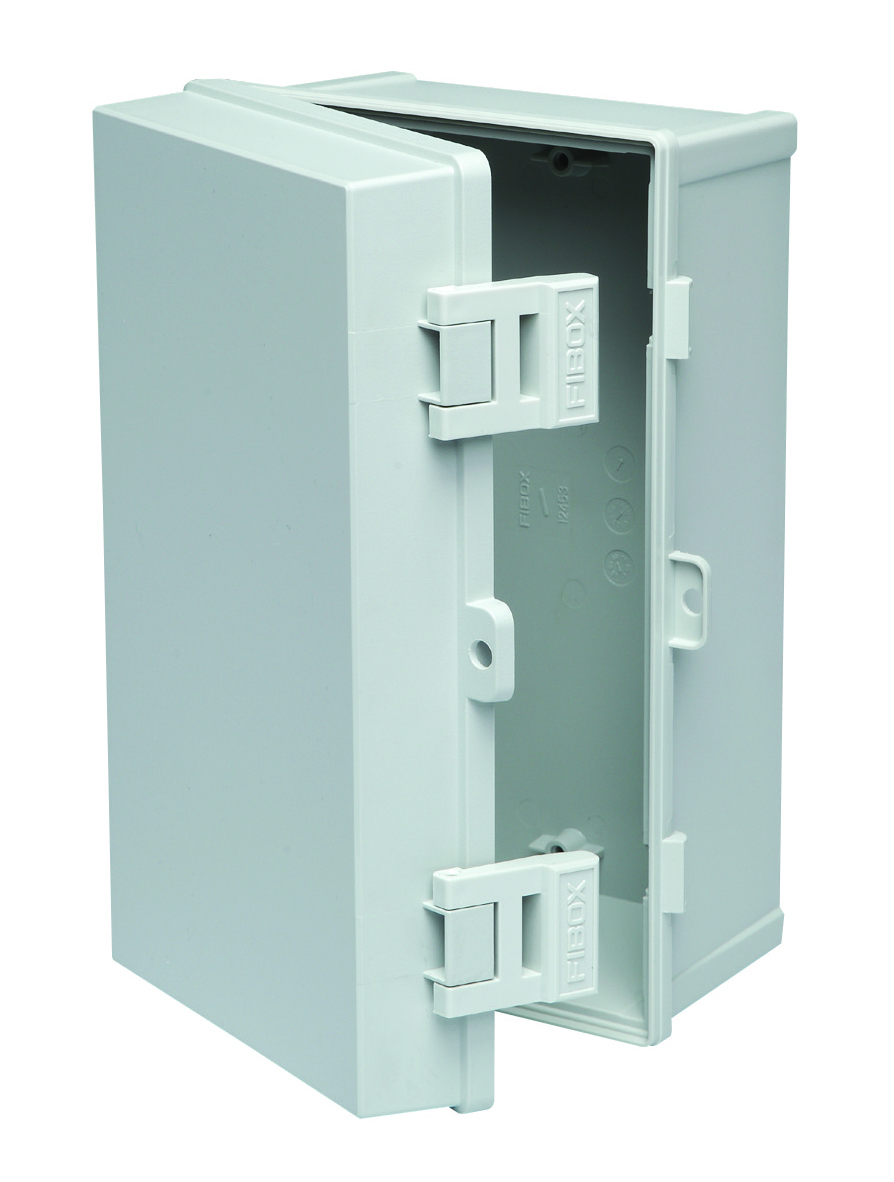

Sample image

Order symbol: CAB PC 251511 G

Product nbr: 8113325

Description: Opaque door

Remarks: Latches on the long side

EAN: 6418074048950

El. number:

Finland:
Denmark:
Sweden:

Including: Cabinet base. door with PUR gasket. latches. screws for mounting plate/DIN-rail and corner plugs.

Dimensions:	Height	Width	Depth
mm:	250	150	110
inch:	9.84	5.91	4.33

Materials:
Material:	Polycarbonate
Base colour:	RAL 7035 -light grey
Cover colour:	RAL 7035 -light grey
Gasket material:	Polyurethane

Temperatures:
Temperature °C (short term)::	-40 … 120
Temperature °C (continuous):	-40 … 80
Temperature °F (short term):	-40 … 250
Temperature °F (continuous):	-40 … 175

Accessories:
EKIV 2515 PL	Back Panel. plastic. for enclosures: (208 x 125 x 2)
EKIV 2515	Back Panel. for enclosures: (208 x 125 x 1)

Rating:
Ingress protection (EN 60529):	IP65;
Impact Resistance (EN 62262):	IK08;
Electrical insulation:	Totally insulated
Halogen free (DIN/VDE 0472, Part 815):	1
UV resistance:	UL 508
Flammability Rating:	UL 746C 5"
Glow Wire Test (IEC 695-2-1) °C:	960 °C
NEMA Class

Certificates:
Certificate FI 40854
