Description : Swing door/Front plate, for enclosures:
Remarks : 515x415x230
Package : 1
Unit : Piece
EAN : 6418074050526
SSTL number : 3438161
Electric No. Denmark : 8212018293
Electric No. Sweden : 2539915
ETIM : EC002620
Height (mm) : 500
Width (mm) : 400
Depth (mm) : 1
Height (inch) : 19.69
Width (inch) : 15.75
Depth (inch) : 0.04
Material : Plastic
CAD Drawings
- FP_5040_D.step
- FP_5040_D.x_t
- FP_5040_D.zip
Please note, that we need you permission in order for you to view the CAD files.

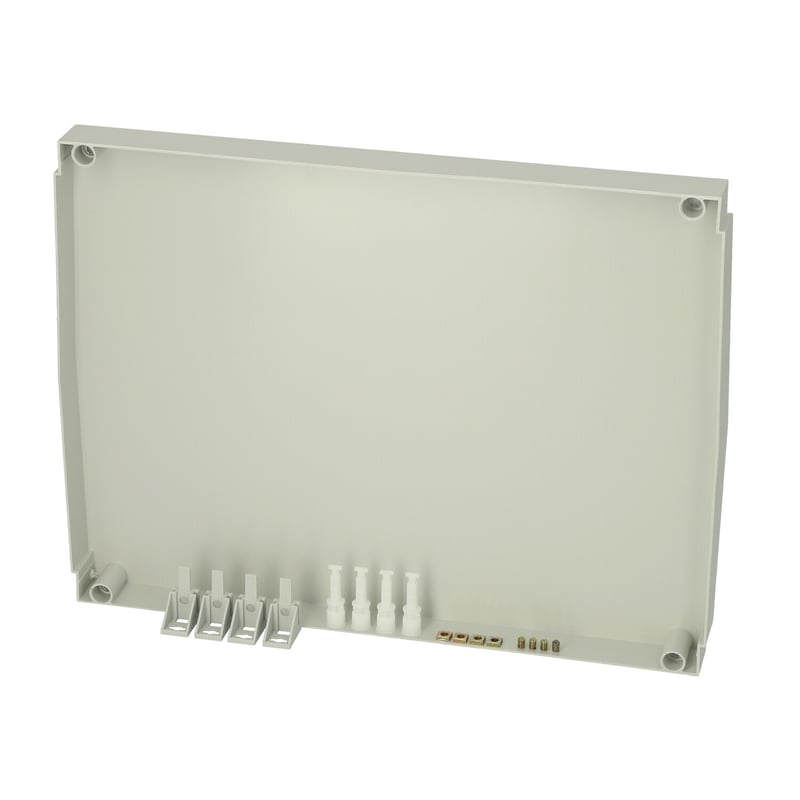

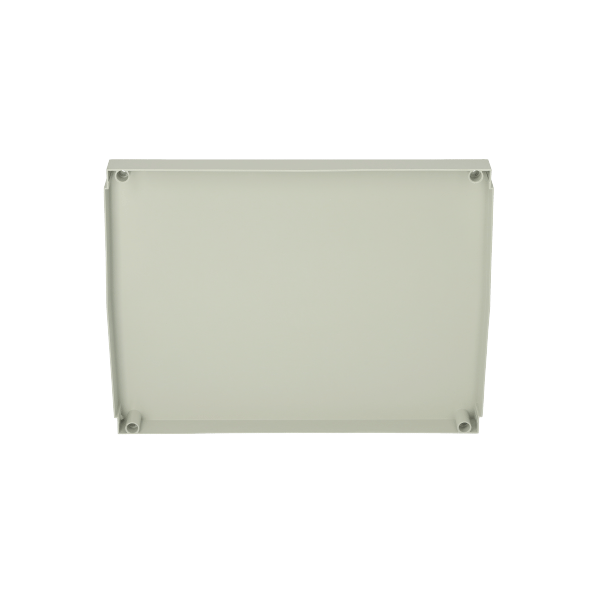

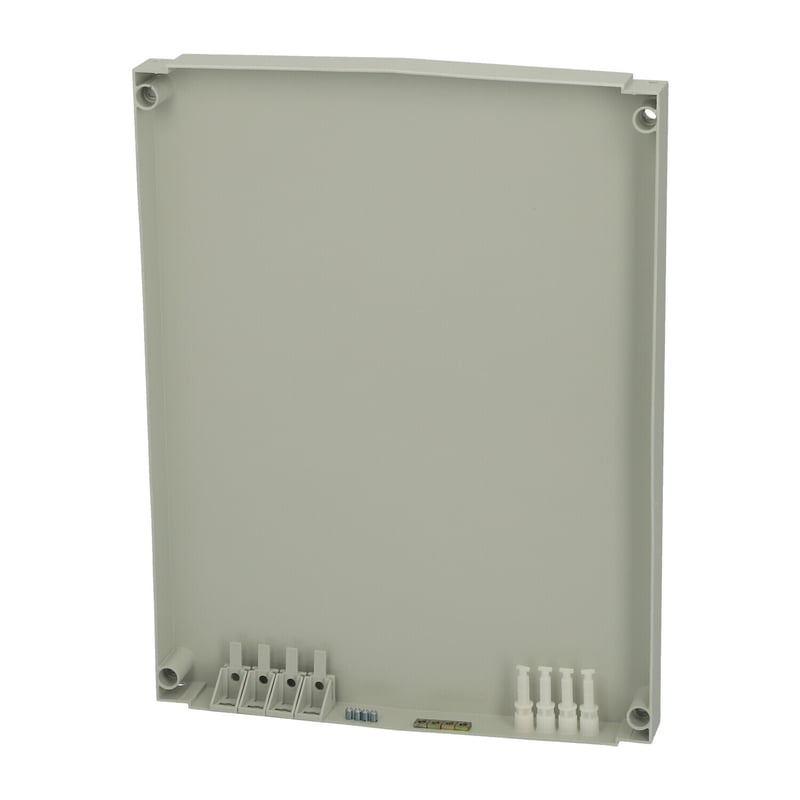

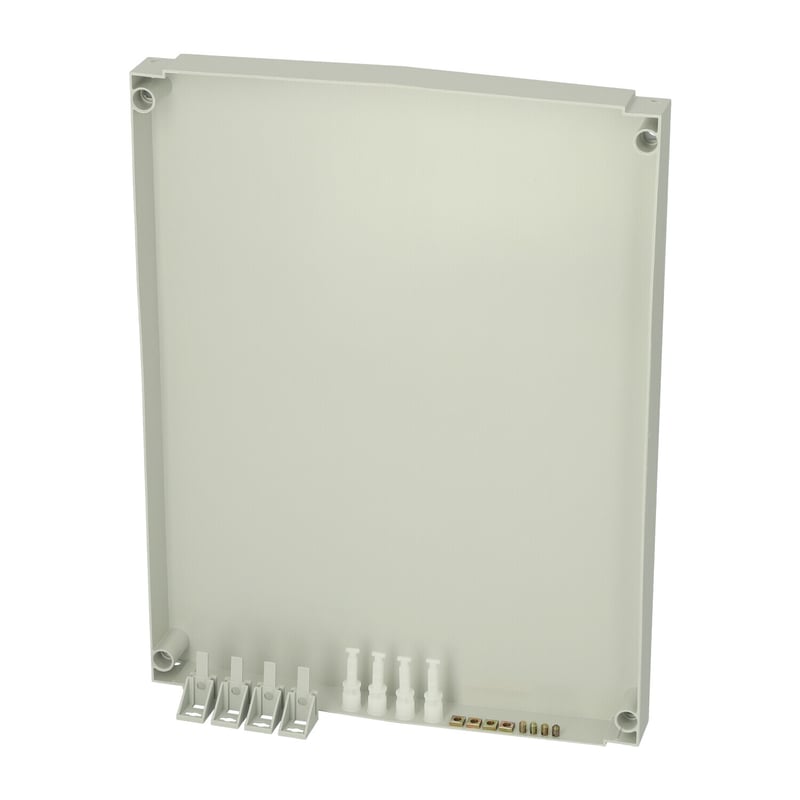

FP 5040-D
Sample image
Order symbol : FP 5040-D
Product nr : 8275040
Description : Swing door/Front plate, for enclosures:
Remarks : 515x415x230
EAN : 6418074050526
El. number :
- Finland : 3438161
- Denmark : 8212018293
- Sweden : 2539915
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 500 | 400 | 1 |
| inch : | 19.69 | 15.75 | 0.04 |
| Materials : | |
|---|---|
| Material : | Plastic |
| Ratings : | |
|---|---|
| electrical_insulation : | Not insulated |
| UV resistance : | - |
