AR865CHSCT 8561017
Dimensions 203 x 152 x 127
Dimensions 8 x 6 x 5
Including : Hinged screw cover. Base with 10-32 brass inserts, cover with formed in place PUR gasket, stainless hinge pin and 2 cover screws. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.
- PC : IP66; IP67; IK09
Technical data
Product nr : 8561017
Description : PC Enclosure
Remarks : Hinged transparent screw cover
Package : 1
Unit : Piece
EAN : 6418074066503
ETIM : EC000261 Enclosure/Switchgear cabinet (empty)
Height (mm) : 203
Width (mm) : 152
Depth (mm) : 127
Height (inch) : 8
Width (inch) : 6
Depth (inch) : 5
Material : Polycarbonate
Base colour : RAL 7035 -light grey
Cover colour : Transparent
Gasket material : Polyurethane
Temperature °C (short term) : -40 … 140
Temperature °C (continuous) : -40 … 80
Temperature °F (short term) : -40 … 250
Temperature °F (continuous) : -40 … 175
Ingress Protection (EN 60529): IP66IP67
Impact Resistance (EN 62262): IK09
Electrical insulation : Not insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 508
Flammability Rating : UL 508
Glow Wire Test (IEC 60695): 960 °C
NEMA Class : NEMA 4, 4X, 6, 6P, 12, 12K and 13
/ /
Dimensional Drawings
CAD Files
Please note, that we need your permission in order for you to view the CAD files.
Certificates and Declarations
Catalogues
Contact
Accessories
.jpg?width=131&height=131&name=AP_plates%20(P).jpg)

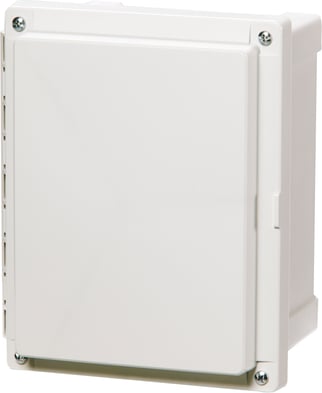

AR865CHSCT
Sample image
Order symbol : AR865CHSCT
Product nr : 8561017
Description : PC Enclosure
Remarks : Hinged transparent screw cover
EAN : 6418074066503
Including : Hinged screw cover. Base with 10-32 brass inserts, cover with formed in place PUR gasket, stainless hinge pin and 2 cover screws. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 203 | 152 | 127 |
| inch : | 8 | 6 | 5 |
| Materials : | |
|---|---|
| Material : | Polycarbonate |
| Base colour : | RAL 7035 -light grey |
| Cover colour : | Transparent |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (short term) : | -40 … 140 |
| Temperature °C (continuous) : | -40 … 80 |
| Temperature °F (short term) : | -40 … 250 |
| Temperature °F (continuous) : | -40 … 175 |
| Accessories : | |
|---|---|
| AMFL6 | 6" Mounting Flange Set |
| ASP86 |
Aluminum Swing Panel
(154.4 x 204.5 x 0) |
| ASPK86 | Swing Panel Kit incl. Panel |
| APBP86 |
PVC Back Panel
(175 x 124) |
| ASPHK8 | Swing Panel Kit w/o Panel |
| ABP86 |
Painted Steel Back Panel
(175 x 124) |
| ALBP86 |
Aluminum Back Panel
(175 x 124) |
| ADFP86 |
Dead Front Panel w/ screws
(157 x 205.5 x 0) |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP66; IP67; |
| Impact Resistance (EN 62262): | IK09; |
| electrical_insulation : | Not insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | UL 508 |
| Flammability Rating : | UL 508 |
| Glow Wire Test (IEC 695-2-1) °C : | 960 °C |
| NEMA Class | NEMA 4, 4X, 6, 6P, 12, 12K and 13 |
| Certificates : | |
|---|---|
| ARCA_CertificateofCompliance | |
