AR865SC 8561002

Dimensions 203 x 152 x 127

Dimensions 8 x 6 x 5

Including : Screw cover. Base with 10-32 brass inserts, cover with formed in place PUR gasket and 4 stainless cover screws. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.

PC : IP66; IP67; IK09

Product number : 8561002 Download product card

Technical data

Product:

Product nr : 8561002

Description : PC Enclosure

Remarks : Opaque screw cover

Package : 1

Unit : Piece

EAN : 6418074066299

ETIM : EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions :

Height (mm) : 203

Width (mm) : 152

Depth (mm) : 127

Height (inch) : 8

Width (inch) : 6

Depth (inch) : 5

Materials :

Material : Polycarbonate

Base colour : RAL 7035 -light grey

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C (short term) : -40 … 140

Temperature °C (continuous) : -40 … 80

Temperature °F (short term) : -40 … 250

Temperature °F (continuous) : -40 … 175

Ratings :

Ingress Protection (EN 60529): IP66IP67

Impact Resistance (EN 62262): IK09

Electrical insulation : Not insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 508

Flammability Rating : UL 508

Glow Wire Test (IEC 60695): 960 °C

NEMA Class : NEMA 4, 4X, 6, 6P, 12, 12K and 13

Product is connected to following catalogues :

ARCA JIC / AR 865 / AR865SC

Dimensional Drawings


CAD Files

Please note, that we need your permission in order for you to view the CAD files.

Contact

Accessories

AMFL6

6" Mounting Flange Set

ASP86

Aluminum Swing Panel
(154.4 x 204.5 x 0)

ASPK86

Swing Panel Kit incl. Panel

APBP86

PVC Back Panel
(175 x 124)

ASPHK8

Swing Panel Kit w/o Panel

ABP86

Painted Steel Back Panel
(175 x 124)

ALBP86

Aluminum Back Panel
(175 x 124)

ADFP86

Dead Front Panel w/ screws
(157 x 205.5 x 0)

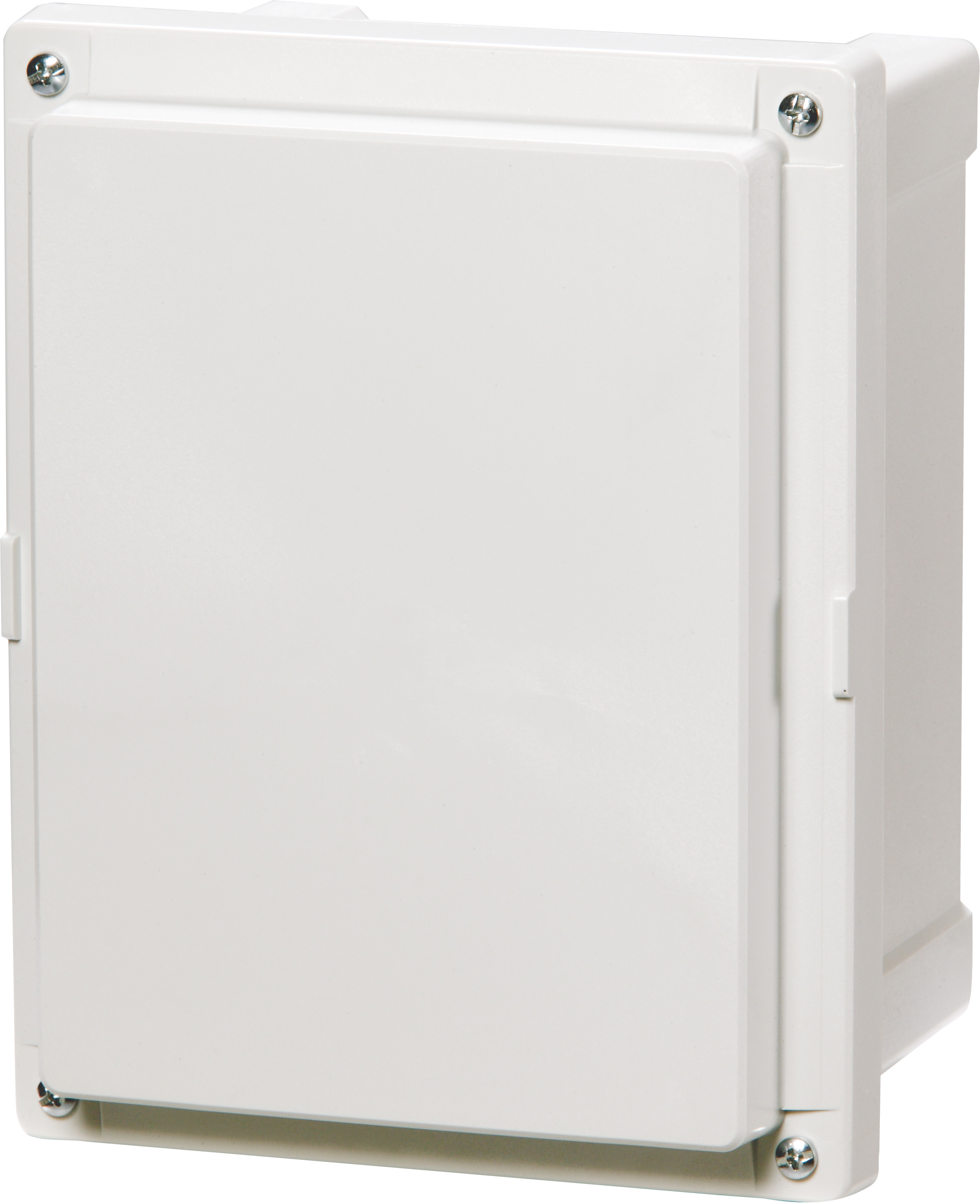

Sample image

Order symbol : AR865SC

Product nr : 8561002

Description : PC Enclosure

Remarks : Opaque screw cover

EAN : 6418074066299
