AR1084SC 8561097

Dimensions 254 x 203 x 102

Dimensions 10 x 8 x 4

Including : Screw cover. Base with 10-32 brass inserts, cover with formed in place PUR gasket and 4 stainless cover screws. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.

PC : IP66; IP67; IK09

Product number : 8561097 Download product card

Technical data

Product:

Product nr : 8561097

Description : PC Enclosure

Remarks : Opaque screw cover

Package : 1

Unit : Piece

EAN : 6418074066336

ETIM : EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions :

Height (mm) : 254

Width (mm) : 203

Depth (mm) : 102

Height (inch) : 10

Width (inch) : 8

Depth (inch) : 4

Materials :

Material : Polycarbonate

Base colour : RAL 7035 -light grey

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C (short term) : -40 … 140

Temperature °C (continuous) : -40 … 80

Temperature °F (short term) : -40 … 250

Temperature °F (continuous) : -40 … 175

Ratings :

Ingress Protection (EN 60529): IP66IP67

Impact Resistance (EN 62262): IK09

Electrical insulation : Not insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 508

Flammability Rating : UL 508

Glow Wire Test (IEC 60695): 960 °C

NEMA Class : NEMA 4, 4X, 6, 6P, 12, 12K and 13

Product is connected to following catalogues :

ARCA JIC / AR 1084 / AR1084SC

Dimensional Drawings


CAD Files

Please note, that we need your permission in order for you to view the CAD files.

Contact

Accessories

ASPHK10

Swing Panel Kit w/o Panel

ABP108

Painted Steel Back Panel
(226 x 175)

ADFP108

Dead Front Panel w/ screws
(208 x 256 x 0)

ASP108

Aluminum Swing Panel
(204.5 x 255 x 0)

ASPK108

Swing Panel Kit incl. Panel

ALBP108

Aluminum Back Panel
(226 x 175)

AMFL8

8" Mounting Flange Set

APBP108

PVC Back Panel
(226 x 175)

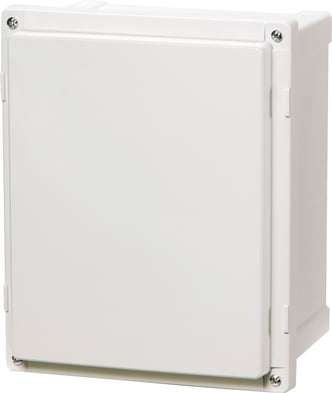

Sample image

Order symbol : AR1084SC

Product nr : 8561097

Description : PC Enclosure

Remarks : Opaque screw cover

EAN : 6418074066336
