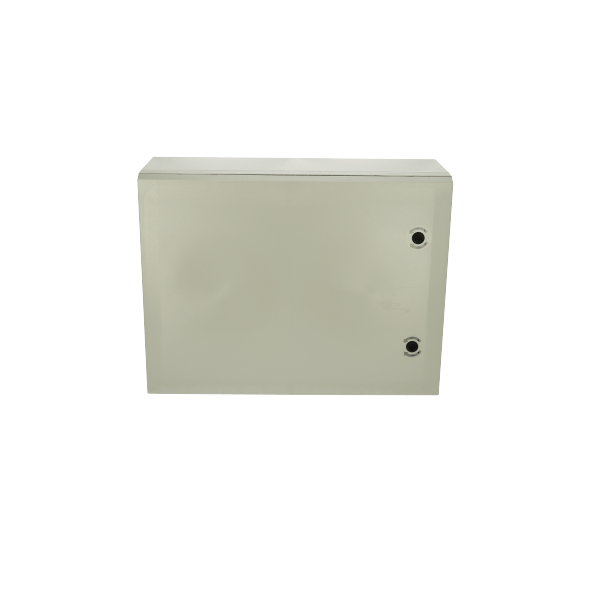

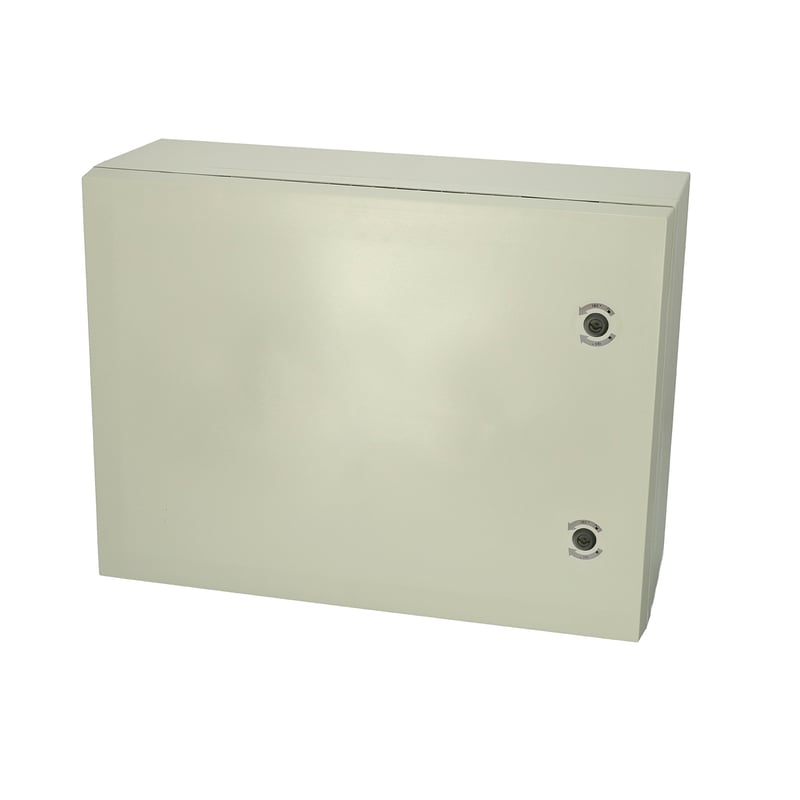

ARCA IEC / ARCA 608030 / ARCA 608030

ARCA 608030 8120029

Dimensions 600 x 800 x 300.

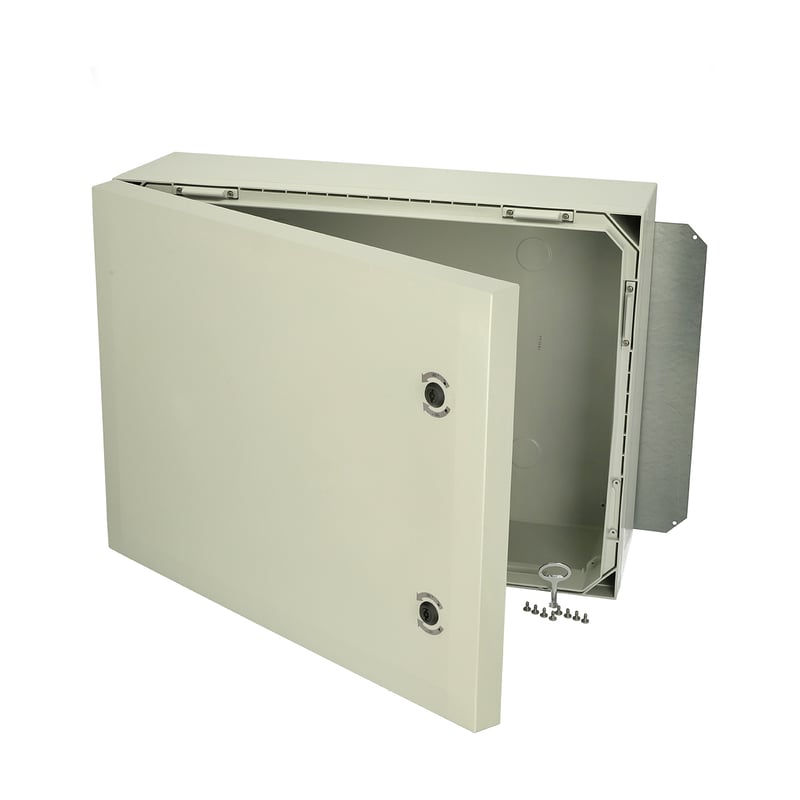

Including : Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.

  • PC : IP66; IK10; EN 62208:2011. IEC 62208:2011,EN 61439-1:2011. IEC 61439-1:2011,EN 61439-4:2013. IEC 61439-4:2012
Technical data
Product:

Product nr : 8120029

Description : Cabinet, PC

Remarks : Grey cover, 2-point locking, hinges on the short side

Package : 1

Unit : Piece

EAN : 6418074085160

SSTL number : 3424064

Electric No. Denmark : 8212095368

Electric No. Sweden : 2500121

ETIM : EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions :

Height (mm) : 600

Width (mm) : 800

Depth (mm) : 300

Height (inch) : 26.62

Width (inch) : 31.5

Depth (inch) : 12.2

Materials :

Material : Polycarbonate

Base colour : RAL 7035 -light grey

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C (short term) : -40 … 120

Temperature °C (continuous) : -40 … 80

Temperature °F (short term) : -40 … 250

Temperature °F (continuous) : -40 … 175

Ratings :

Ingress Protection (EN 60529): IP66;

Impact Resistance (EN 62262): IK10;

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : 1

UV resistance : UL 508

Flammability Rating : UL 94 5VA

Glow Wire Test (IEC 60695): 960 °C

NEMA Class : NEMA 1, 4, 4X, 12 and 13

Product is connected to following catalogues :

ARCA IEC / ARCA 608030 / ARCA 608030

ARCA 608030

Fibox
FCX4

Sample image

Order symbol : ARCA 608030

Product nr : 8120029

Description : Cabinet, PC

Remarks : Grey cover, 2-point locking, hinges on the short side

EAN : 6418074085160

El. number :

  • Finland : 3424064
  • Denmark : 8212095368
  • Sweden : 2500121

Including : Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.

ARCA6080
Dimensions : Height Width Depth
mm : 600 800 300
inch : 26.62 31.5 12.2
Materials :
Material : Polycarbonate
Base colour : RAL 7035 -light grey
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperatures :
Temperature °C (short term) : -40 … 120
Temperature °C (continuous) : -40 … 80
Temperature °F (short term) : -40 … 250
Temperature °F (continuous) : -40 … 175
Accessories :
DRS ARCA 608030 DIN rail frame set
(785 x 585 x 35)
RCS ARCA 6080 Rain canopy set for size 6080
(20 x 800 x 30)
DSP ARCA RM Door stopper ARCA, right, midsize 5070-8060
MPS ARCA 8060 Mounting plate (730x530x2 mm)
(730 x 530 x 2)
DSP ARCA LM Door stopper ARCA, left, midsize 5070-8060
IDS ARCA 6080 Inner door set
(585 x 785 x 35)
MPMP ARCA 8060 Mounting plate multiperforated (730x530x2 mm - ⌀3.6 mm)
(730 x 530 x 2)
SBK ARCA 80 Support bar kit
(715 x 50 x 30)
SBK ARCA 60 Support bar kit
(535 x 40 x 30)
PMK ARCA 80 PoleMounting kit, for pole ⌀100-300mm
(785 x 585 x 35)
MPP ARCA 6080 Mounting plate perforated (730x530x2 mm - 26x11 mm)
(530 x 730 x 2)
MPX ARCA 8060 Mounting plate (730x530 mm)
(730 x 530 x 5)
Rating :
Ingress protection (EN 60529): IP66;
Impact Resistance (EN 62262): IK10;
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance : UL 508
Flammability Rating : UL 94 5VA
Glow Wire Test (IEC 695-2-1) °C : 960 °C
NEMA Class NEMA 1, 4, 4X, 12 and 13
Certificates :
Certificate FI 40467
