ARCA IEC / ARCA 604021 / ARCA 604021
ARCA 604021 8120012
Dimensions 600 x 400 x 210.
Including : Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.
- PC : IP66; IK10; EN 62208:2011. IEC 62208:2011,EN 61439-1:2011. IEC 61439-1:2011,EN 61439-4:2013. IEC 61439-4:2012
Technical data
Product nr: 8120012
Description: Cabinet. PC
Remarks: Grey cover. 2-point locking. hinges on the long side
Package: 1
Unit: Piece
EAN: 6418074079237
SSTL number: 3423100
Electric No. Denmark: 8212091100
Electric No. Sweden: 2500118
ETIM: EC000261 Enclosure/Switchgear cabinet (empty)
Height (mm): 600
Width (mm): 400
Depth (mm): 210
Height (inch) : 23.62
Width (inch) : 15.75
Depth (inch) : 8.58
Material: Polycarbonate
Base colour : RAL 7035 -light grey
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperature °C (short term) : -40 … 120
Temperature °C (continuous) : -40 … 80
Temperature °F (short term) : -40 … 250
Temperature °F (continuous) : -40 … 175
Ingress Protection (EN 60529) : IP66;
Impact Resistance (EN 62262) : IK10;
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : 1
UV resistance : UL 508
Flammability Rating : UL 94 5VA
Glow Wire Test (IEC 60695) : 960 °C
NEMA Class : NEMA 1, 4, 4X, 12 and 13
ARCA IEC / ARCA 604021 / ARCA 604021
Dimensional Drawings
CAD Files
Certificates and Declarations
Catalogues
Contact
Accessories
ARCA 604021

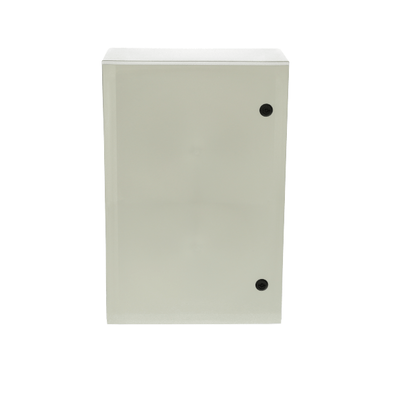

Sample image
Order symbol: ARCA 604021
Product nbr: 8120012
Description: Cabinet. PC
Remarks: Grey cover. 2-point locking. hinges on the long side
EAN: 6418074079237
El. number:
- Finland: 3423100
- Denmark: 8212091100
- Sweden: 2500118
Including: Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.

Dimensions: | Height | Width | Depth |
---|---|---|---|
mm: | 600 | 400 | 210 |
inch: | 23.62 | 15.75 | 8.58 |
Materials: | |
---|---|
Material: | Polycarbonate |
Base colour: | RAL 7035 -light grey |
Cover colour: | RAL 7035 -light grey |
Gasket material: | Polyurethane |
Temperatures: | |
---|---|
Temperature °C (short term):: | -40 … 120 |
Temperature °C (continuous): | -40 … 80 |
Temperature °F (short term): | -40 … 250 |
Temperature °F (continuous): | -40 … 175 |
Accessories: | |
---|---|
MPS ARCA 6040 | Mounting plate (550x350x2 mm) (550 x 350 x 2) |
RCS ARCA 6040 | Rain canopy set for size 6040 (20 x 400 x 30) |
SBK ARCA 40 | Support bar kit (340 x 40 x 30) |
DRS ARCA 604021 | DIN rail frame set (585 x 385 x 35) |
PMK ARCA 40 | PoleMounting kit. for pole ⌀100-300mm (385 x 285 x 35) |
MPMP ARCA 6040 | Mounting plate multiperforated (550x350x2 mm - ⌀3.6 mm) (550 x 450 x 2) |
MPP ARCA 6040 | Mounting plate perforated (550x350x2 mm - 26x11 mm) (550 x 350 x 2) |
IDS ARCA 6040 | Inner door set (585 x 385 x 35) |
MPX ARCA 6040 | Mounting plate (550x350 mm) (550 x 350 x 5) |
DSP ARCA VLS | Door stopper ARCA. vertical. left. small |
SBK ARCA 60 | Support bar kit (535 x 40 x 30) |
DSP ARCA VRS | Door stopper ARCA. vertical. right. small |
Rating: | |
---|---|
Ingress protection (EN 60529): | IP66; |
Impact Resistance (EN 62262): | IK10; |
Electrical insulation: | Totally insulated |
Halogen free (DIN/VDE 0472, Part 815): | 1 |
UV resistance: | UL 508 |
Flammability Rating: | UL 94 5VA |
Glow Wire Test (IEC 695-2-1) °C: | 960 °C |
NEMA Class | NEMA 1, 4, 4X, 12 and 13 |
Certificates: | |
---|---|
Certificate FI 40467 |
© Fibox Oy, Data subject to change without notice (printed: )
