ARCA IEC / ARCA 505021 / ARCA 505021W

ARCA 505021W 8120152

Dimensions 500 x 500 x 210.

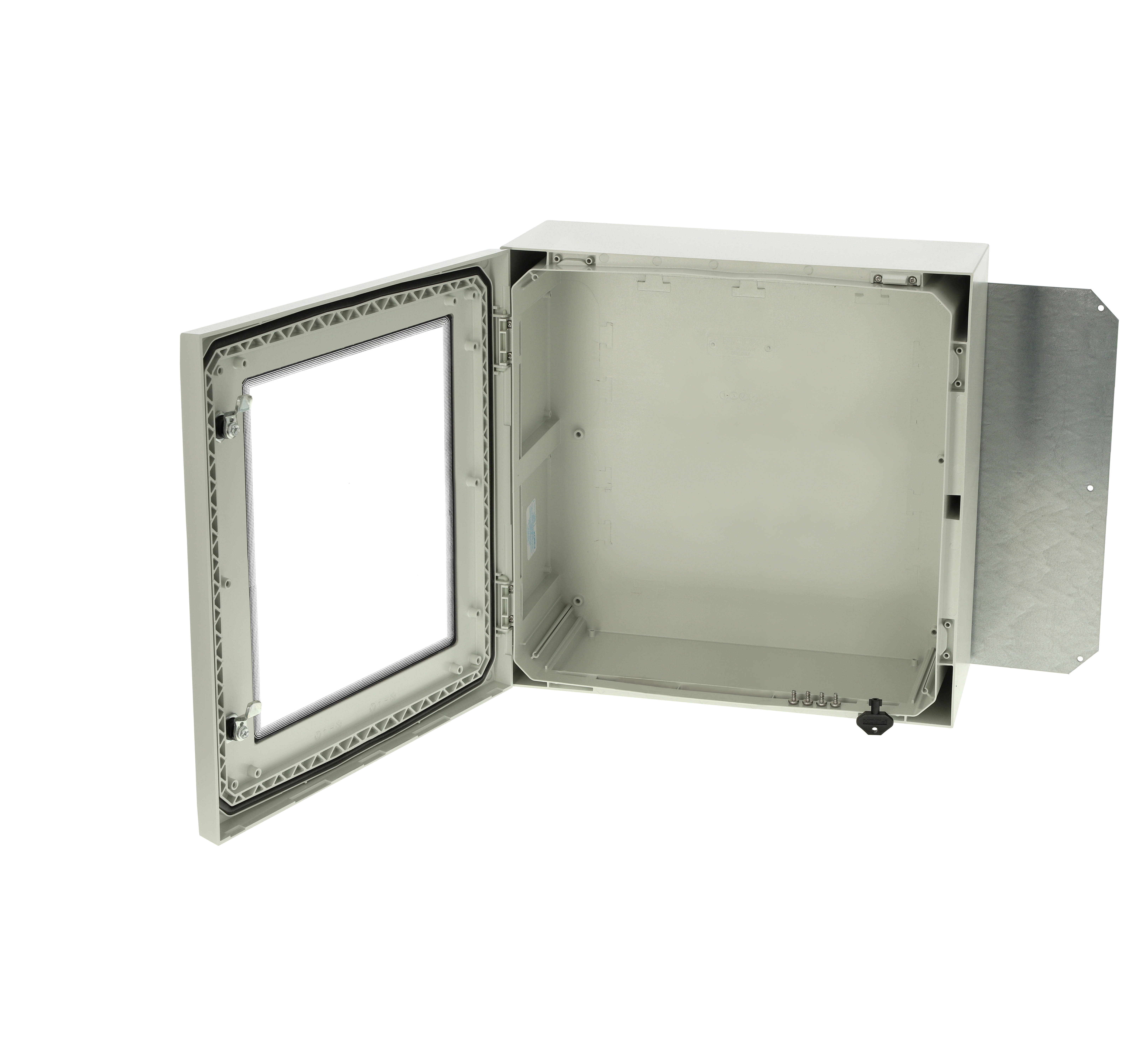

Including : Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.

  • PC : IP65; IK08; EN 62208:2011. IEC 62208:2011,EN 61439-1:2011. IEC 61439-1:2011,EN 61439-4:2013. IEC 61439-4:2012
Technical data
Product:

Product nr : 8120152

Description : Cabinet, PC

Remarks : Grey cover with window. 2-point locking.

Package : 1

Unit : Piece

EAN : 6418074314680

SSTL number :

Electric No. Denmark :

Electric No. Sweden : 2506479

ETIM : EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions :

Height (mm) : 500

Width (mm) : 500

Depth (mm) : 210

Height (inch) : 19.69

Width (inch) : 19.69

Depth (inch) : 8.27

Materials :

Material : Polycarbonate

Base colour : RAL 7035 -light grey

Cover colour : Clear transparent

Gasket material : Polyurethane

Temperatures :

Temperature °C (short term) : -40 … 120

Temperature °C (continuous) : -40 … 80

Temperature °F (short term) : -40 … 250

Temperature °F (continuous) : -40 … 175

Ratings :

Ingress Protection (EN 60529): IP65;

Impact Resistance (EN 62262): IK08;

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : 1

UV resistance : UL 508

Flammability Rating : UL 94 5VA

Glow Wire Test (IEC 60695): 960 °C

NEMA Class :

Product is connected to following catalogues :

ARCA IEC / ARCA 505021 / ARCA 505021W

ARCA 505021W

Fibox

Sample image

Order symbol : ARCA 505021W

Product nr : 8120152

Description : Cabinet, PC

Remarks : Grey cover with window. 2-point locking.

EAN : 6418074314680

El. number :

  • Finland :
  • Denmark :
  • Sweden : 2506479

Including : Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.

FIBOX Arca IEC 505021 DIM.jpg
Dimensions : Height Width Depth
mm : 500 500 210
inch : 19.69 19.69 8.27
Materials :
Material : Polycarbonate
Base colour : RAL 7035 -light grey
Cover colour : Clear transparent
Gasket material : Polyurethane
Temperatures :
Temperature °C (short term) : -40 … 120
Temperature °C (continuous) : -40 … 80
Temperature °F (short term) : -40 … 250
Temperature °F (continuous) : -40 … 175
Accessories :
MPMP ARCA 5050 Mounting plate multiperforated (450x450x2 mm - ⌀3.6 mm)
(450 x 450 x 2)
MPX ARCA 5050 Mounting plate (450x450 mm)
(450 x 450 x 5)
MPS ARCA 5050 Mounting plate (450x450x2 mm)
(450 x 450 x 2)
DRS ARCA 505021 DIN rail frame set
(485 x 485 x35)
RCS ARCA 5050 Rain canopy set for size 5050
(20 x 500 x 30)
IDS ARCA 5050 Inner door set
(480 x 480 x 30)
MPP ARCA 5050 Mounting plate perforated (450x450x2 mm - 26x11 mm)
(450 x 450 x 2)
Rating :
Ingress protection (EN 60529): IP65;
Impact Resistance (EN 62262): IK08;
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance : UL 508
Flammability Rating : UL 94 5VA
Glow Wire Test (IEC 695-2-1) °C : 960 °C
NEMA Class
Certificates :
Certificate FI 40467
