ARCA IEC / ARCA 406021 / ARCA 406021W

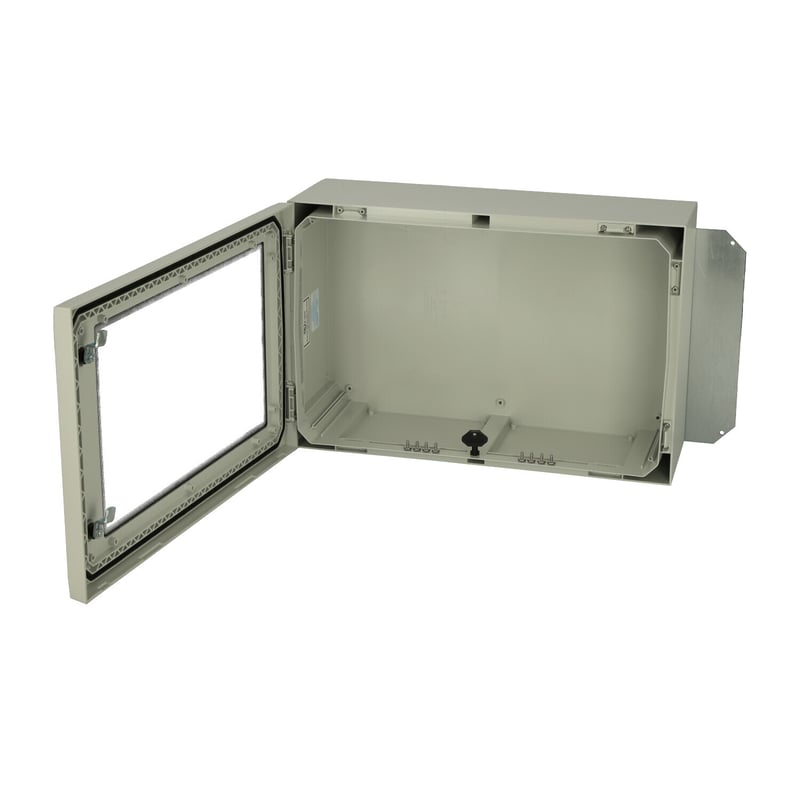

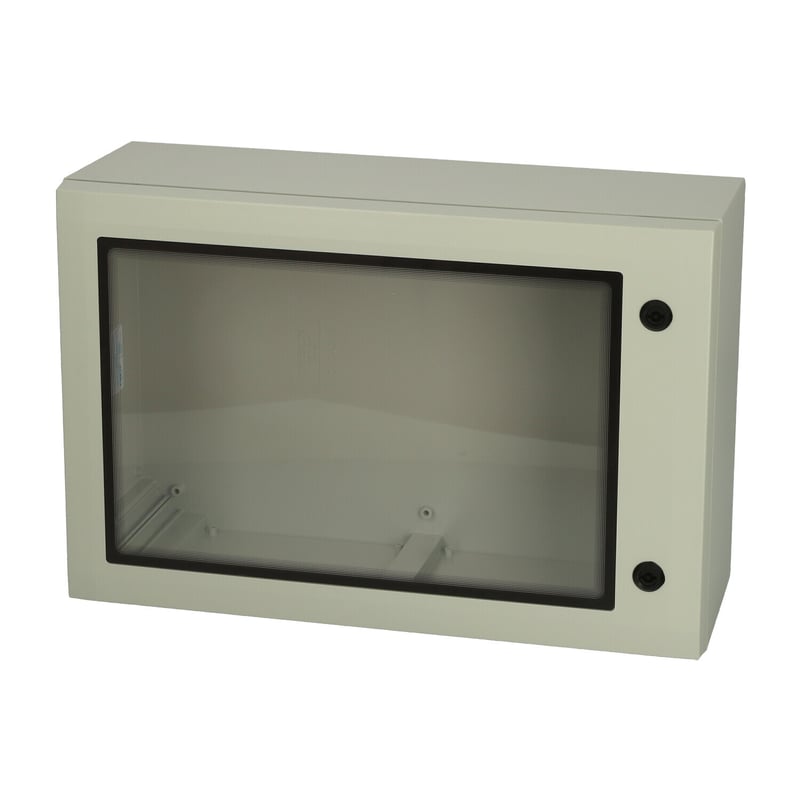

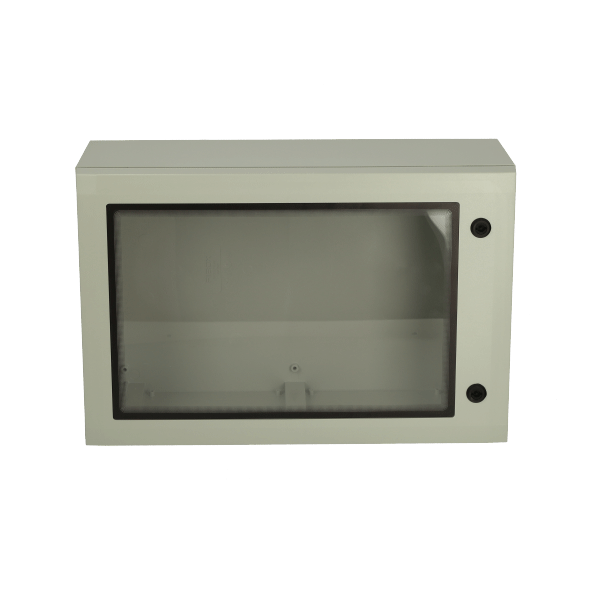

ARCA 406021W 8120146

Dimensions 400 x 600 x 210.

Including : Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.

  • PC : IP65; IK08; EN 62208:2011. IEC 62208:2011,EN 61439-1:2011. IEC 61439-1:2011,EN 61439-4:2013. IEC 61439-4:2012
Technical data
Product:

Product nr : 8120146

Description : Cabinet, PC

Remarks : Grey cover with window, 2-point locking, hinges on the short side

Package : 1

Unit : Piece

EAN : 6418074080172

SSTL number : 3423225

Electric No. Denmark : 8212092028

Electric No. Sweden : 2500145

ETIM : EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions :

Height (mm) : 400

Width (mm) : 600

Depth (mm) : 210

Height (inch) : 15.75

Width (inch) : 23.62

Depth (inch) : 8.58

Materials :

Material : Polycarbonate

Base colour : RAL 7035 -light grey

Cover colour : Clear transparent

Gasket material : Polyurethane

Temperatures :

Temperature °C (short term) : -40 … 120

Temperature °C (continuous) : -40 … 80

Temperature °F (short term) : -40 … 250

Temperature °F (continuous) : -40 … 175

Ratings :

Ingress Protection (EN 60529): IP65;

Impact Resistance (EN 62262): IK08;

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : 1

UV resistance : UL 508

Flammability Rating : UL 94 5VA

Glow Wire Test (IEC 60695): 960 °C

NEMA Class :

Product is connected to following catalogues :

ARCA IEC / ARCA 406021 / ARCA 406021W

ARCA 406021W

Fibox
ARCA_405021W

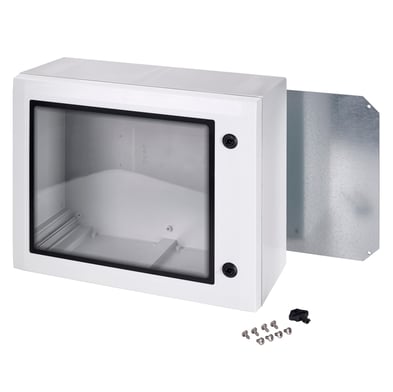

Sample image

Order symbol : ARCA 406021W

Product nr : 8120146

Description : Cabinet, PC

Remarks : Grey cover with window, 2-point locking, hinges on the short side

EAN : 6418074080172

El. number :

  • Finland : 3423225
  • Denmark : 8212092028
  • Sweden : 2500145

Including : Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.

ARCA4060
Dimensions : Height Width Depth
mm : 400 600 210
inch : 15.75 23.62 8.58
Materials :
Material : Polycarbonate
Base colour : RAL 7035 -light grey
Cover colour : Clear transparent
Gasket material : Polyurethane
Temperatures :
Temperature °C (short term) : -40 … 120
Temperature °C (continuous) : -40 … 80
Temperature °F (short term) : -40 … 250
Temperature °F (continuous) : -40 … 175
Accessories :
MPS ARCA 6040 Mounting plate (550x350x2 mm)
(550 x 350 x 2)
PMK ARCA 60 PoleMounting kit, for pole ⌀100-300mm
(585 x 385 x 35)
MPP ARCA 4060 Mounting plate perforated (550x350x2 mm - 26x11 mm)
(350 x 550 x 2)
DSP ARCA HRS Door stopper ARCA, horizontal, right, small
IDS ARCA 4060 Inner door set
(385 x 585 x 35)
DSP ARCA HLS Door stopper ARCA, horizontal, left, small
SBK ARCA 40 Support bar kit
(340 x 40 x 30)
MPMP ARCA 6040 Mounting plate multiperforated (550x350x2 mm - ⌀3.6 mm)
(550 x 450 x 2)
DRS ARCA 406021 DIN rail frame set
(585 x 385 x 35)
MPX ARCA 6040 Mounting plate (550x350 mm)
(550 x 350 x 5)
SBK ARCA 60 Support bar kit
(535 x 40 x 30)
RCS ARCA 4060 Rain canopy set for size 4060
(20 x 600 x 30)
Rating :
Ingress protection (EN 60529): IP65;
Impact Resistance (EN 62262): IK08;
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance : UL 508
Flammability Rating : UL 94 5VA
Glow Wire Test (IEC 695-2-1) °C : 960 °C
NEMA Class
Certificates :
Certificate FI 40467
