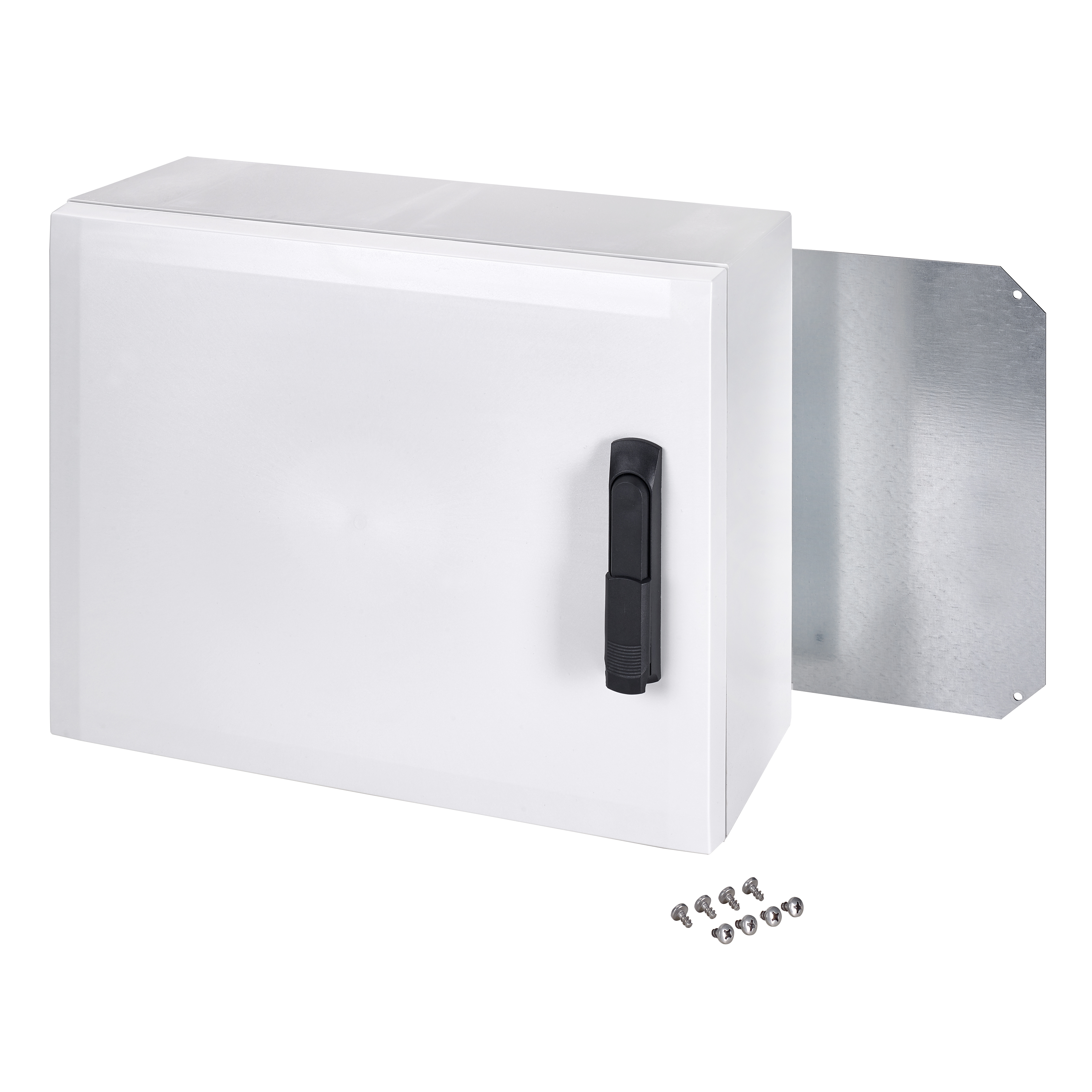

    Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.

Previous slide

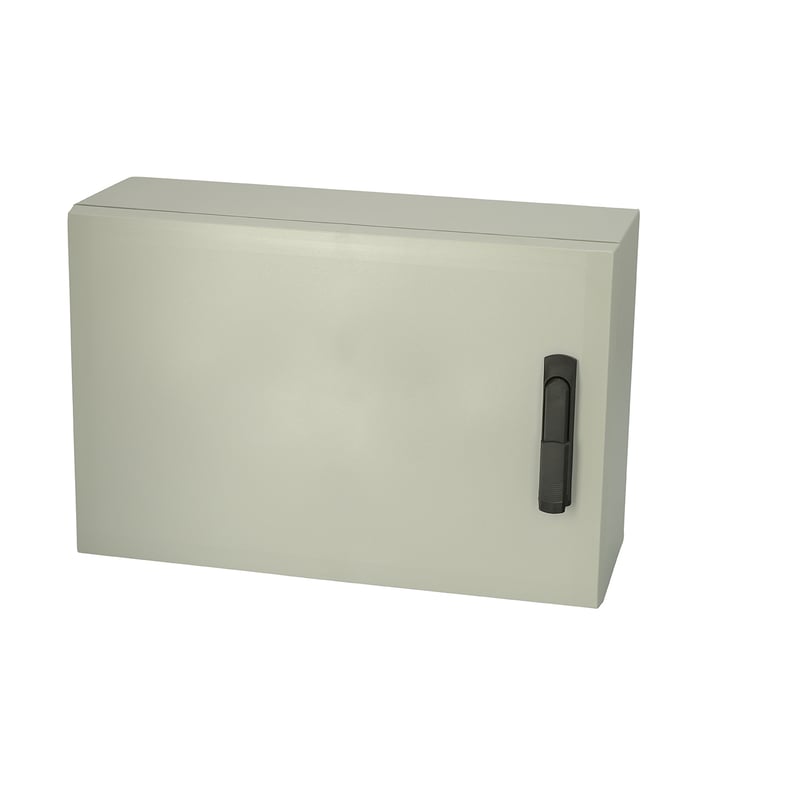

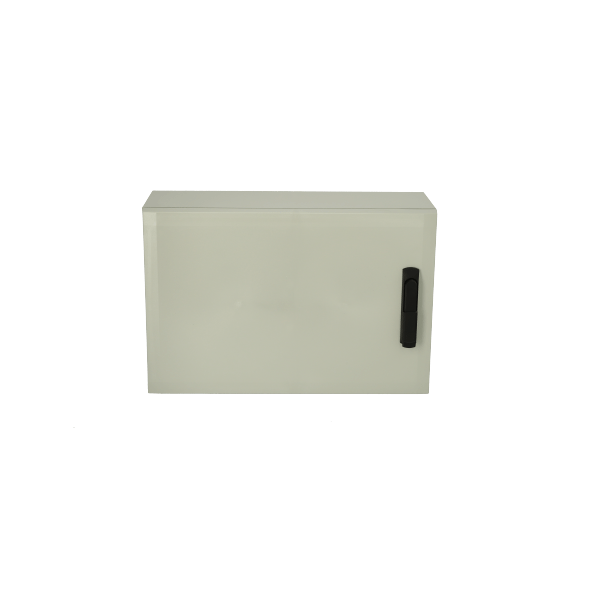

ARCA 406021S product image 1
ARCA 406021S product image 2
ARCA 406021S product image 1
Next slide
ARCA 406021S thumbnail image 1
ARCA 406021S thumbnail image 2
ARCA 406021S thumbnail image 1

ARCA IEC / ARCA 406021 / ARCA 406021S

ARCA 406021S 8120106

Dimensions 400 x 600 x 210

Dimensions 15.75 x 23.62 x 8.27

Including : Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.

  • PC : IP66; IK10
Technical data
Product:

Product nr : 8120106

Description : Cabinet, PC

Remarks : Grey cover, Swinghandle, hinges on the short side

Package : 1

Unit : Piece

EAN : 6418074079893

SSTL number : 3423185

Electric No. Denmark : 8212091760

Electric No. Sweden : 2507100

ETIM : EC000261

Dimensions :

Height (mm) : 400

Width (mm) : 600

Depth (mm) : 210

Height (inch) : 15.75

Width (inch) : 23.62

Depth (inch) : 8.27

Materials :

Material : Polycarbonate

Base colour : RAL_7035

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 80

Temperature °F : -40 … 175

Ratings :

Standards EN_62208:2011__IEC_62208:2011, EN_61439-1:2011__IEC_61439-1:2011, EN_61439-4:2013__IEC_61439-4:2012

Ingress Protection (EN 60529): IP66

Impact Resistance (EN 62262): IK10

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 94 5VA

Glow Wire Test (IEC 60695): 960C

Product is connected to following catalogues :

ARCA IEC / ARCA 406021 / ARCA 406021S

Dimensional Drawings
CAD Files
Certificates and Declarations
Contact

ARCA 406021S

Fibox

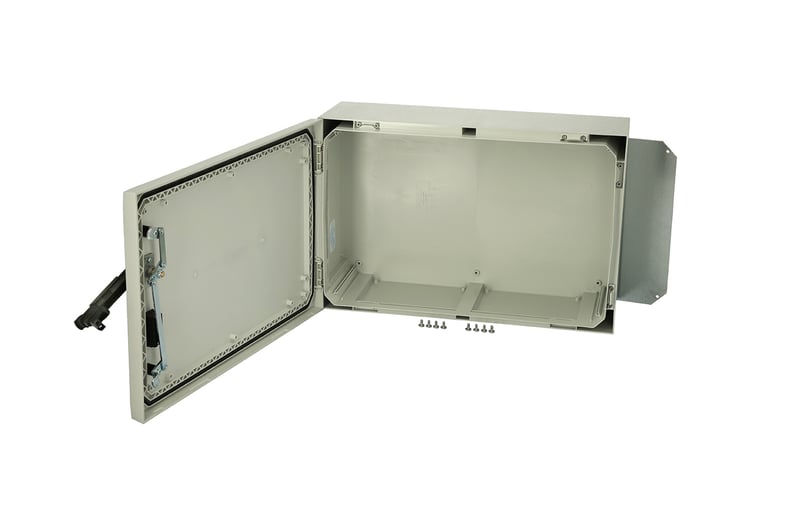

8120106_ARCA_406021S_1_72dpi

Sample image

Order symbol : ARCA 406021S

Product nr : 8120106

Description : Cabinet, PC

Remarks : Grey cover, Swinghandle, hinges on the short side

EAN : 6418074079893

El. number :

  • Finland : 3423185
  • Denmark : 8212091760
  • Sweden : 2507100

Including : Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.

ARCA4060
Dimensions : Height Width Depth
mm : 400 600 210
inch : 15.75 23.62 8.27
Materials :
Material : Polycarbonate
Base colour : RAL_7035
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperatures :
Temperature °C (continuous) : -40 … 80
Temperature °F (continuous) : -40 … 175
Accessories :
MPS ARCA 6040 Mounting plate (550x350x2 mm)
(550 x 350 x 2)
PMK ARCA 60 PoleMounting kit, for pole ⌀100-300mm
(585 x 385 x 35)
MPP ARCA 4060 Mounting plate perforated (550x350x2 mm - 26x11 mm)
(350 x 550 x 2)
DSP ARCA HRS Door stopper ARCA, horizontal, right, small
(15 x 104 x 16)
IDS ARCA 4060 Inner door set
DSP ARCA HLS Door stopper ARCA, horizontal, left, small
(15 x 104 x 16)
MPMP ARCA 6040 Mounting plate multiperforated (550x350x2 mm - ⌀3.6 mm)
(550 x 350 x 1.5)
DRS ARCA 406021 DIN rail frame set
(585 x 385 x 35)
MPX ARCA 6040 Mounting plate (550x350 mm)
(550 x 350 x 15)
RCS ARCA 4060 Rain canopy set for size 4060
(30 x 600 x 20)
Ratings :
Ingress protection (EN 60529): IP66;
Impact Resistance (EN 62262): IK10;
electrical_insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 5VA
Glow Wire Test (IEC 695-2-1) °C : 960C
Certificates :
Certificate FI 40467
