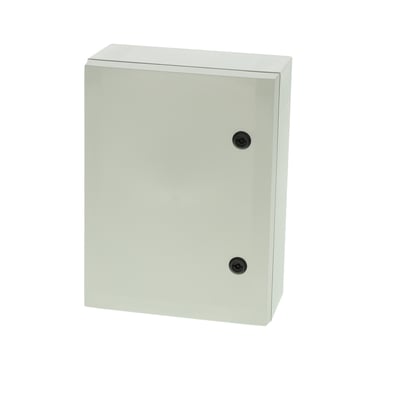

8120006 ARCA 403015_1_72dpi.jpg

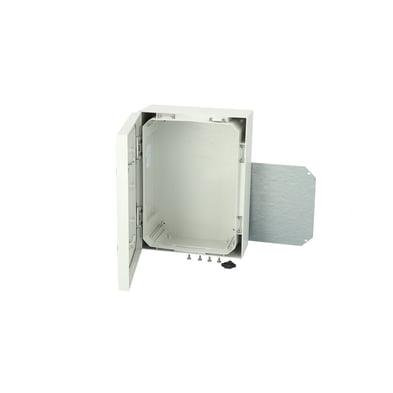

8120006 ARCA 403015_2_72dpi.jpg

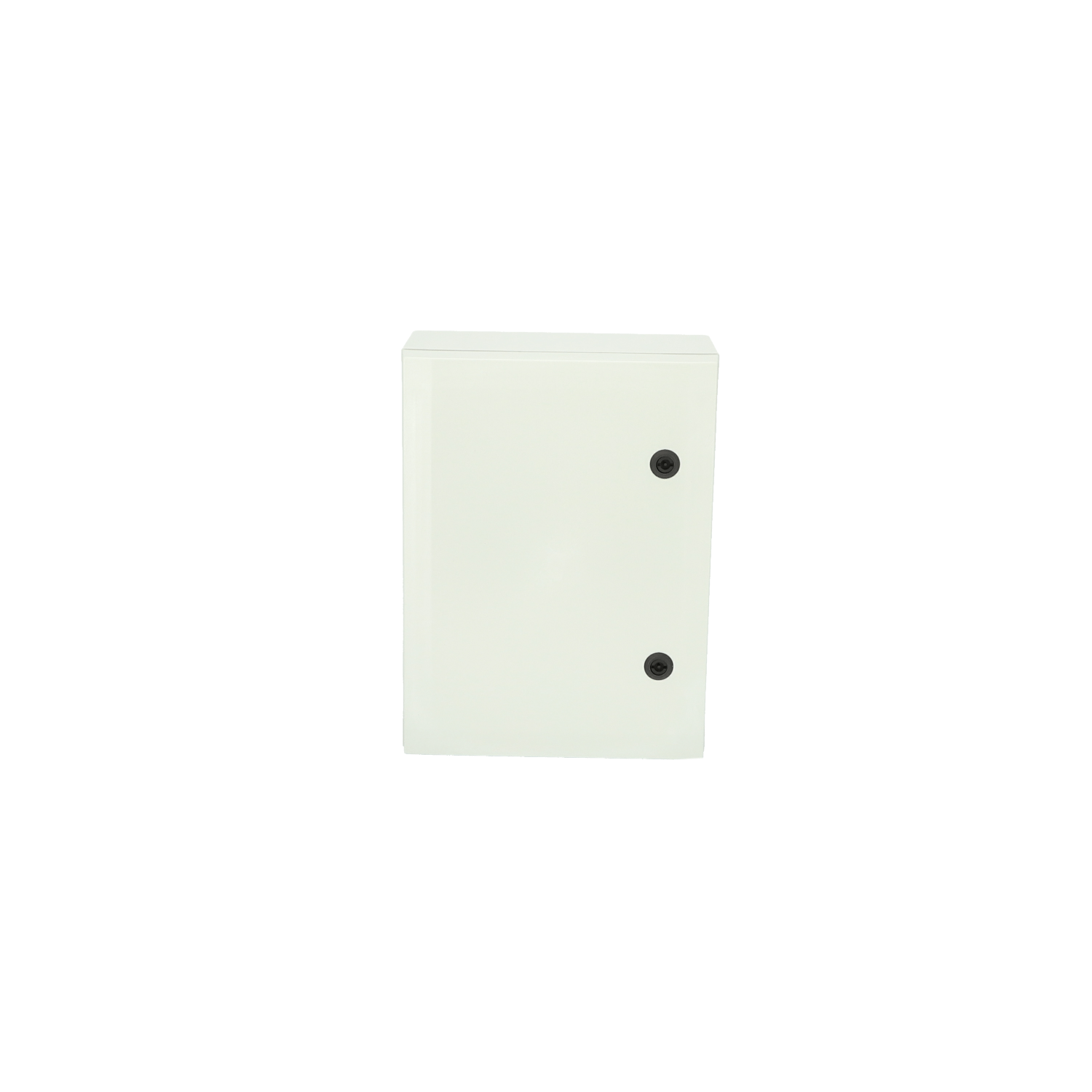

8120006 ARCA 403015 360_ANIMA_BIG.gif
Next slide
FCX2
8120006 ARCA 403015_1_72dpi.jpg
8120006 ARCA 403015_2_72dpi.jpg
8120006 ARCA 403015 360_ANIMA_BIG.gif

ARCA IEC / ARCA 403015 / ARCA 403015

ARCA 403015 8120006

Dimensions 400 x 300 x 150.

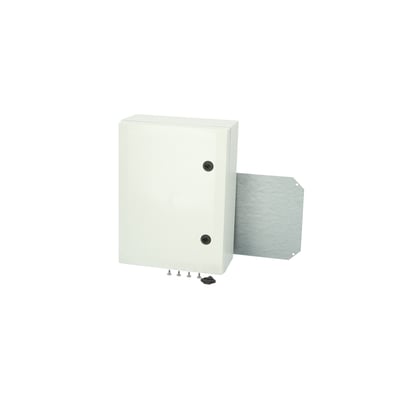

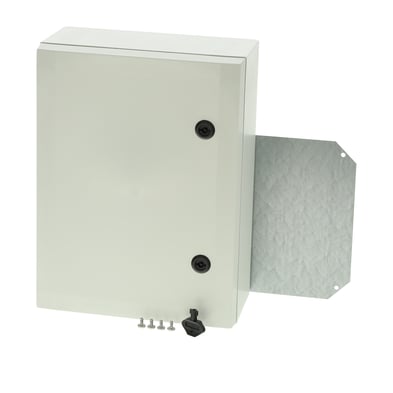

Including : Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.

  • PC : IP66; IK10; EN 62208:2011. IEC 62208:2011,EN 61439-1:2011. IEC 61439-1:2011,EN 61439-4:2013. IEC 61439-4:2012
Technical data
Product:

Product nr : 8120006

Description : Cabinet, PC

Remarks : Grey cover, 2-point locking, hinges on the long side

Package : 1

Unit : Piece

EAN : 6418074079176

SSTL number : 3423051

Electric No. Denmark : 8212091045

Electric No. Sweden : 2500112

ETIM : EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions :

Height (mm) : 400

Width (mm) : 300

Depth (mm) : 150

Height (inch) : 15.75

Width (inch) : 11.81

Depth (inch) : 6.22

Materials :

Material : Polycarbonate

Base colour : RAL 7035 -light grey

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C (short term) : -40 … 120

Temperature °C (continuous) : -40 … 80

Temperature °F (short term) : -40 … 250

Temperature °F (continuous) : -40 … 175

Ratings :

Ingress Protection (EN 60529): IP66;

Impact Resistance (EN 62262): IK10;

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : 1

UV resistance : UL 508

Flammability Rating : UL 94 5VA

Glow Wire Test (IEC 60695): 960 °C

NEMA Class : NEMA 1, 4, 4X, 12 and 13

Product is connected to following catalogues :

ARCA IEC / ARCA 403015 / ARCA 403015

ARCA 403015

Fibox
FCX2

Sample image

Order symbol : ARCA 403015

Product nr : 8120006

Description : Cabinet, PC

Remarks : Grey cover, 2-point locking, hinges on the long side

EAN : 6418074079176

El. number :

  • Finland : 3423051
  • Denmark : 8212091045
  • Sweden : 2500112

Including : Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.

ARCA403015
Dimensions : Height Width Depth
mm : 400 300 150
inch : 15.75 11.81 6.22
Materials :
Material : Polycarbonate
Base colour : RAL 7035 -light grey
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperatures :
Temperature °C (short term) : -40 … 120
Temperature °C (continuous) : -40 … 80
Temperature °F (short term) : -40 … 250
Temperature °F (continuous) : -40 … 175
Accessories :
DRS ARCA 403015 DIN rail frame set
(385 x 285 x 35)
SBK ARCA 30 Support bar kit
(235 x 40 x 30)
RCS ARCA 4030 Rain canopy set for size 4030
(20 x 300 x 30)
SBK ARCA 40 Support bar kit
(340 x 40 x 30)
IDS ARCA 4030 Inner door set
(385 x 285 x 35)
PMK ARCA 30 PoleMounting kit, for pole ⌀100-300mm
(385 x 285 x 35)
DSP ARCA VLS Door stopper ARCA, vertical, left, small
MPMP ARCA 4030 Mounting plate multiperforated (350x250x2 mm - ⌀3.6 mm)
(350 x 250 x 2)
DSP ARCA VRS Door stopper ARCA, vertical, right, small
MPS ARCA 4030 Mounting plate (350x250x2 mm)
(350 x 250 x 2)
MPP ARCA 4030 Mounting plate perforated (350x250x2 mm - 26x11 mm)
(350 x 250 x 2)
MPX ARCA 4030 Mounting plate (350x250 mm)
(350 x 250 x 5)
Rating :
Ingress protection (EN 60529): IP66;
Impact Resistance (EN 62262): IK10;
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance : UL 508
Flammability Rating : UL 94 5VA
Glow Wire Test (IEC 695-2-1) °C : 960 °C
NEMA Class NEMA 1, 4, 4X, 12 and 13
Certificates :
Certificate FI 40467
