    Cabinet base. door with PUR gasket. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.

Previous slide
Next slide

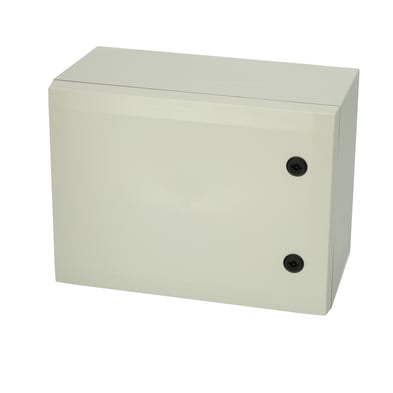

ARCA IEC / ARCA 304021 / ARCA 304021 No MP

ARCA 304021 No MP 8120023N

Dimensions 300 x 400 x 210

Dimensions 11.81 x 15.75 x 8.27

Including : Cabinet base. door with PUR gasket. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.

  • PC : IP66; IK10
Technical data
Product:

Product nr : 8120023N

Description : Cabinet, PC

Remarks : Grey cover, 2-point locking, hinges on the short side

Package : 1

Unit : Piece

EAN : 6418074089427

SSTL number : 3424560

Electric No. Denmark : 8212097476

Electric No. Sweden : 2507090

ETIM : EC000261

Dimensions :

Height (mm) : 300

Width (mm) : 400

Depth (mm) : 210

Height (inch) : 11.81

Width (inch) : 15.75

Depth (inch) : 8.27

Materials :

Material : Polycarbonate

Base colour : RAL_7035

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 80

Temperature °F : -40 … 175

Ratings :

Standards EN_62208:2011__IEC_62208:2011, EN_61439-1:2011__IEC_61439-1:2011, EN_61439-4:2013__IEC_61439-4:2012

Ingress Protection (EN 60529): IP66

Impact Resistance (EN 62262): IK10

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 94 5VA

Glow Wire Test (IEC 60695): 960C

UL Type : 1, 4, 4X, 12, 13

Product is connected to following catalogues :

ARCA IEC / ARCA 304021 / ARCA 304021 No MP

CAD Files
Contact

ARCA 304021 No MP

Fibox

Sample image

Order symbol : ARCA 304021 No MP

Product nr : 8120023N

Description : Cabinet, PC

Remarks : Grey cover, 2-point locking, hinges on the short side

EAN : 6418074089427

El. number :

  • Finland : 3424560
  • Denmark : 8212097476
  • Sweden : 2507090

Including : Cabinet base. door with PUR gasket. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.

Dimensions : Height Width Depth
mm : 300 400 210
inch : 11.81 15.75 8.27
Materials :
Material : Polycarbonate
Base colour : RAL_7035
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperatures :
Temperature °C (continuous) : -40 … 80
Temperature °F (continuous) : -40 … 175
Accessories :
DRS ARCA 304021 DIN rail frame set
(385 x 285 x 35)
DSP ARCA HRS Door stopper ARCA, horizontal, right, small
(15 x 104 x 16)
DSP ARCA HLS Door stopper ARCA, horizontal, left, small
(15 x 104 x 16)
IDS ARCA 3040 Inner door set
RCS ARCA 3040 Rain canopy set for size 3040
PMK ARCA 40 PoleMounting kit, for pole ⌀100-300mm
(385 x 285 x 35)
MPP ARCA 3040 Mounting plate perforated (350x250x2 mm - 26x11 mm)
(250 x 350 x 2)
MPMP ARCA 4030 Mounting plate multiperforated (350x250x2 mm - ⌀3.6 mm)
(350 x 250 x 1.5)
MPS ARCA 4030 Mounting plate (350x250x2 mm)
(350 x 250 x 2)
MPX ARCA 4030 Mounting plate (350x250 mm)
(350 x 250 x 15)
Ratings :
Ingress protection (EN 60529): IP66;
Impact Resistance (EN 62262): IK10;
electrical_insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 5VA
Glow Wire Test (IEC 695-2-1) °C : 960C
UL Type 1, 4, 4X, 12, 13
