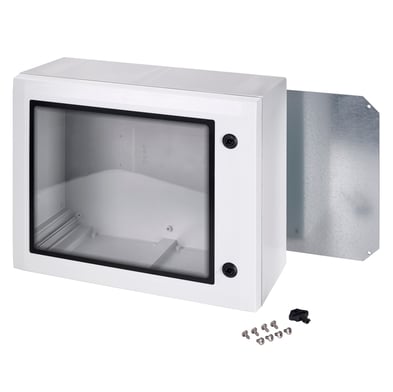

ARCA 304015W product image 1
ARCA 304015W product image 2
ARCA 304015W product image 3
ARCA 304015W product image 1
Next slide
ARCA 304015W thumbnail image 1
ARCA 304015W thumbnail image 2
ARCA 304015W thumbnail image 3
ARCA 304015W thumbnail image 1

ARCA IEC / ARCA 304015 / ARCA 304015W

ARCA 304015W 8120142

UL Code : UL508A

Dimensions 300 x 400 x 150

Dimensions 15.75 x 11.81 x 6.22

Including : Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.

  • PC : IP65; IK08
Technical data
Product:

Product nr : 8120142

Description : Cabinet, PC

Remarks : Grey cover with window, 2-point locking, hinges on the short side

Package : 1

Unit : Piece

EAN : 6418074080134

SSTL number : 3423219

Electric No. Denmark : 8212091980

Electric No. Sweden : 2500139

ETIM : EC000261

Dimensions :

Height (mm) : 300

Width (mm) : 400

Depth (mm) : 150

Height (inch) : 15.75

Width (inch) : 11.81

Depth (inch) : 6.22

Materials :

Material : Polycarbonate

Base colour : RAL_7035

Cover colour : Clear transparent

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 80

Temperature °F : -40 … 175

Ratings :

Standards EN_62208:2011__IEC_62208:2011, EN_61439-1:2011__IEC_61439-1:2011, EN_61439-4:2013__IEC_61439-4:2012

Ingress Protection (EN 60529): IP65

Impact Resistance (EN 62262): IK08

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 94 5VA

Glow Wire Test (IEC 60695): 960C

Product is connected to following catalogues :

ARCA IEC / ARCA 304015 / ARCA 304015W

Dimensional Drawings
CAD Files
Certificates and Declarations
Contact

ARCA 304015W

Fibox
8120142_ARCA_304015W_2_72dpi

Sample image

Order symbol : ARCA 304015W

Product nr : 8120142

UL Code : UL508A

Description : Cabinet, PC

Remarks : Grey cover with window, 2-point locking, hinges on the short side

EAN : 6418074080134

El. number :

  • Finland : 3423219
  • Denmark : 8212091980
  • Sweden : 2500139

Including : Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.

ARCA304015
Dimensions : Height Width Depth
mm : 300 400 150
inch : 15.75 11.81 6.22
Materials :
Material : Polycarbonate
Base colour : RAL_7035
Cover colour : Clear transparent
Gasket material : Polyurethane
Temperatures :
Temperature °C (continuous) : -40 … 80
Temperature °F (continuous) : -40 … 175
Accessories :
DRS ARCA 304015 DIN rail frame set
(385 x 285 x 35)
DSP ARCA HRS Door stopper ARCA, horizontal, right, small
DSP ARCA HLS Door stopper ARCA, horizontal, left, small
IDS ARCA 3040 Inner door set
RCS ARCA 3040 Rain canopy set for size 3040
PMK ARCA 40 PoleMounting kit, for pole ⌀100-300mm
(385 x 285 x 35)
MPP ARCA 3040 Mounting plate perforated (350x250x2 mm - 26x11 mm)
MPMP ARCA 4030 Mounting plate multiperforated (350x250x2 mm - ⌀3.6 mm)
MPS ARCA 4030 Mounting plate (350x250x2 mm)
(350 x 250 x 2)
MPX ARCA 4030 Mounting plate (350x250 mm)
(350 x 250 x 15)
Ratings :
Ingress protection (EN 60529): IP65;
Impact Resistance (EN 62262): IK08;
electrical_insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 5VA
Glow Wire Test (IEC 695-2-1) °C : 960C
Certificates :
Certificate FI 40467
