    Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. Door guide included.

Previous slide

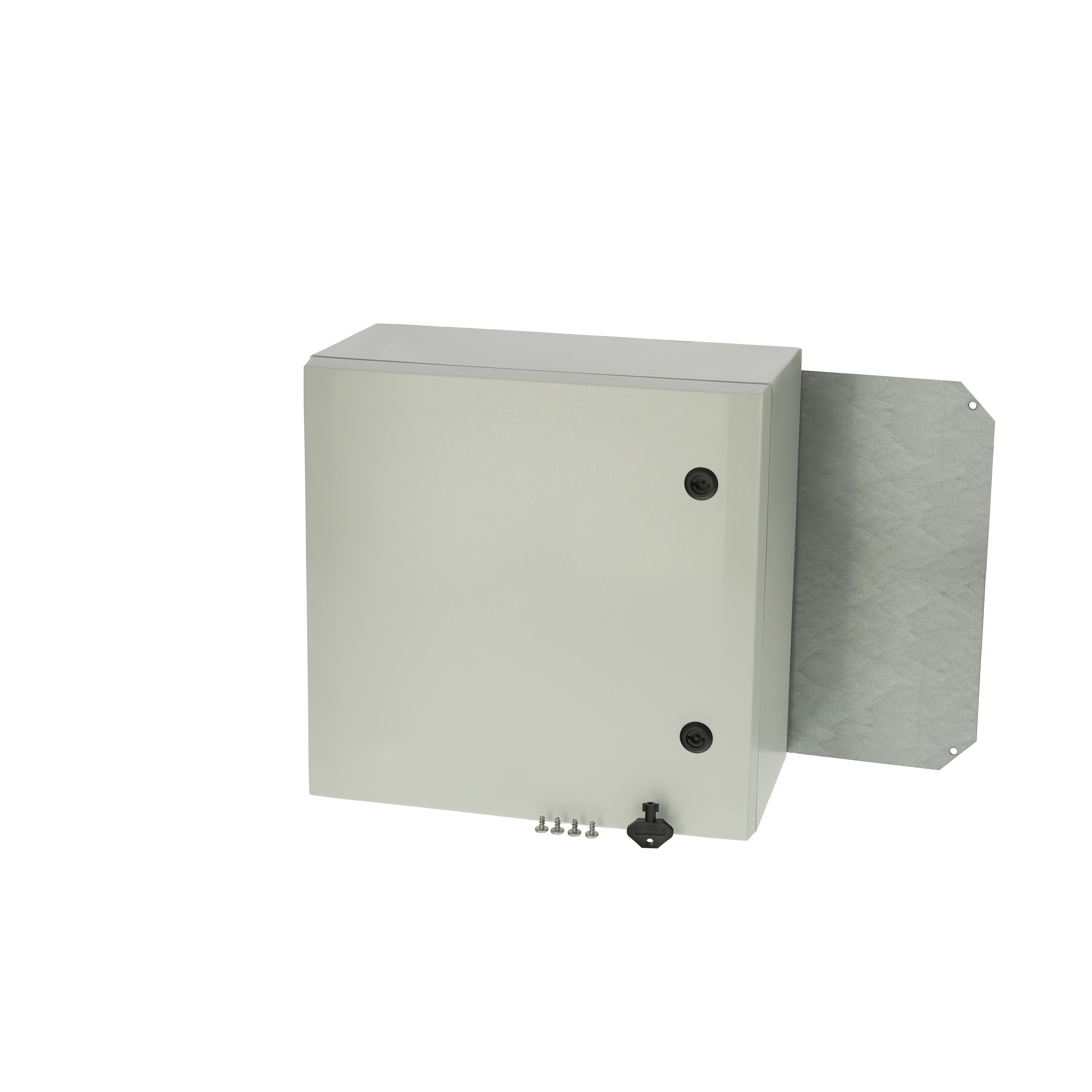

ARCA 303021 product image 1
Next slide
ARCA 303021 thumbnail image 1

ARCA IEC / ARCA 303021 / ARCA 303021

ARCA 303021 8120005

Dimensions 300 x 300 x 210

Dimensions 11.81 x 11.81 x 8.27

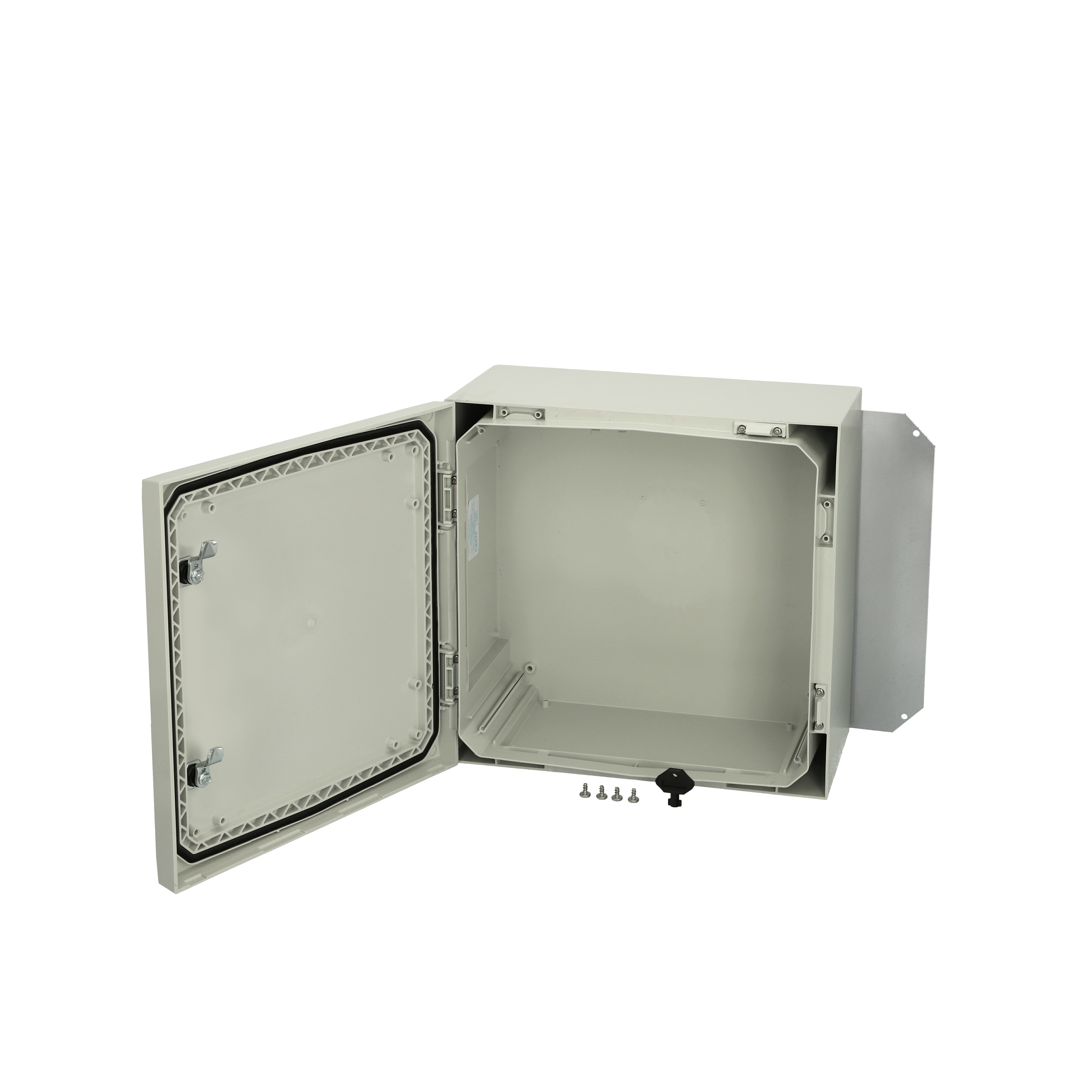

Including : Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. Door guide included.

  • PC : IP66; IK10
Technical data
Product:

Product nr : 8120005

Description : Cabinet, PC

Remarks : Grey cover, 2-point locking, hinges on the long side

Package : 1

Unit : Piece

EAN : 6418074079169

SSTL number : 3423049

Electric No. Denmark : 8212097557

Electric No. Sweden : 2506465

ETIM : EC000261

Dimensions :

Height (mm) : 300

Width (mm) : 300

Depth (mm) : 210

Height (inch) : 11.81

Width (inch) : 11.81

Depth (inch) : 8.27

Materials :

Material : Polycarbonate

Base colour : RAL_7035

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 80

Temperature °F : -40 … 175

Ratings :

Standards EN_62208:2011__IEC_62208:2011, EN_61439-1:2011__IEC_61439-1:2011, EN_61439-4:2013__IEC_61439-4:2012

Ingress Protection (EN 60529): IP66

Impact Resistance (EN 62262): IK10

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 94 5VA

Glow Wire Test (IEC 60695): 960C

UL Type : 1, 4, 4X, 12, 13

Product is connected to following catalogues :

ARCA IEC / ARCA 303021 / ARCA 303021

Dimensional Drawings
CAD Files
Contact

ARCA 303021

Fibox
8120005_ARCA_303021_3_72dpi

Sample image

Order symbol : ARCA 303021

Product nr : 8120005

Description : Cabinet, PC

Remarks : Grey cover, 2-point locking, hinges on the long side

EAN : 6418074079169

El. number :

  • Finland : 3423049
  • Denmark : 8212097557
  • Sweden : 2506465

Including : Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. Door guide included.

FIBOX Arca IEC 303021 DIM.jpg
Dimensions : Height Width Depth
mm : 300 300 210
inch : 11.81 11.81 8.27
Materials :
Material : Polycarbonate
Base colour : RAL_7035
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperatures :
Temperature °C (continuous) : -40 … 80
Temperature °F (continuous) : -40 … 175
Accessories :
MPX ARCA 3030 Mounting plate (250x250 mm)
(250 x 250 x 15)
MPMP ARCA 3030 Mounting plate multiperforated (250x250x2 mm - ⌀3.6 mm)
(250 x 250 x 1.5)
MPS ARCA 3030 Mounting plate (250x250x2 mm)
(250 x 250 x 2)
IDS ARCA 3030 Inner door set
(280 x 280 x 30)
MPP ARCA 3030 Mounting plate perforated (250x250x2 mm - 26x11 mm)
(250 x 250 x 2)
DRS ARCA 303021 DIN rail frame set
(280 x 280 x 30)
DSP ARCA VLS Door stopper ARCA, vertical, left, small
(15 x 104 x 16)
DSP ARCA VRS Door stopper ARCA, vertical, right, small
(15 x 104 x 16)
PMK ARCA 30 PoleMounting kit, for pole ⌀100-300mm
(385 x 285 x 35)
Ratings :
Ingress protection (EN 60529): IP66;
Impact Resistance (EN 62262): IK10;
electrical_insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 5VA
Glow Wire Test (IEC 695-2-1) °C : 960C
UL Type 1, 4, 4X, 12, 13
