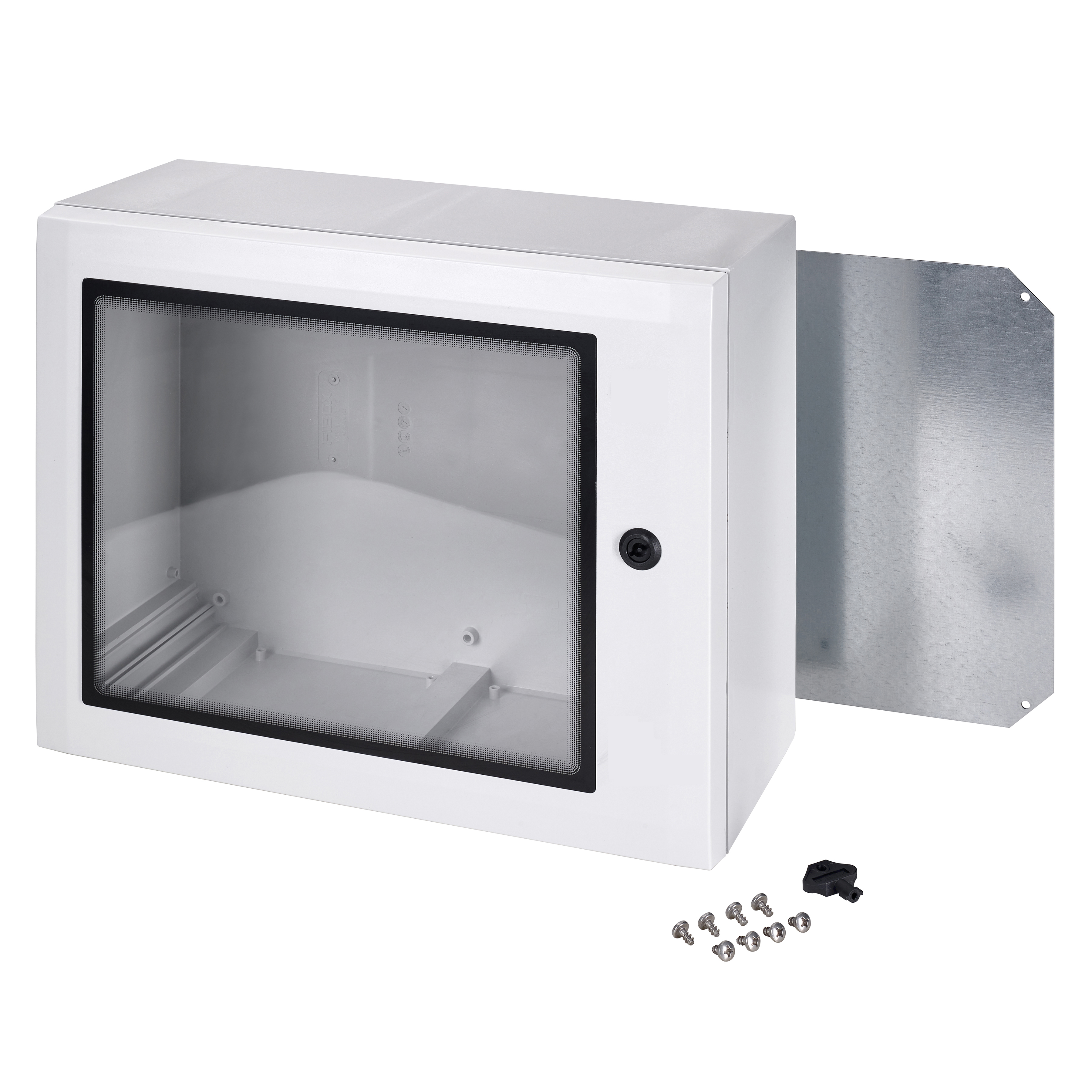

Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.
![ARCA 203015W product image 1](https://www.fibox.com/hs-fs/hubfs/assets/8120140_ARCA_203015W-2023_1_72dpi.jpg?length=393&name=8120140_ARCA_203015W-2023_1_72dpi.jpg)
![ARCA 203015W product image 2](https://www.fibox.com/hs-fs/hubfs/assets/8120140_ARCA_203015W-2023_2_72dpi.jpg?length=393&name=8120140_ARCA_203015W-2023_2_72dpi.jpg)
![ARCA 203015W product image 3](https://www.fibox.com/hs-fs/hubfs/assets/8120140_ARCA_203015W-2023_5_72dpi.jpg?length=393&name=8120140_ARCA_203015W-2023_5_72dpi.jpg)
![ARCA 203015W product image 9](https://www.fibox.com/hs-fs/hubfs/assets/8120140_ARCA_203015W-2023_3_72dpi.jpg?length=393&name=8120140_ARCA_203015W-2023_3_72dpi.jpg)
![ARCA 203015W product image 10](https://www.fibox.com/hs-fs/hubfs/assets/8120140_ARCA_203015W-2023_4_72dpi.jpg?length=393&name=8120140_ARCA_203015W-2023_4_72dpi.jpg)
![ARCA 203015W product image 1](https://www.fibox.com/hs-fs/hubfs/assets/8120140_ARCA_203015W-2023%20360_ANIMA_SMALL.gif?length=393&name=8120140_ARCA_203015W-2023%20360_ANIMA_SMALL.gif)
![ARCA 203015W thumbnail image 1](https://www.fibox.com/hs-fs/hubfs/assets/8120140_ARCA_203015W-2023_1_72dpi.jpg?length=52&name=8120140_ARCA_203015W-2023_1_72dpi.jpg)
![ARCA 203015W thumbnail image 2](https://www.fibox.com/hs-fs/hubfs/assets/8120140_ARCA_203015W-2023_2_72dpi.jpg?length=52&name=8120140_ARCA_203015W-2023_2_72dpi.jpg)
![ARCA 203015W thumbnail image 3](https://www.fibox.com/hs-fs/hubfs/assets/8120140_ARCA_203015W-2023_5_72dpi.jpg?length=52&name=8120140_ARCA_203015W-2023_5_72dpi.jpg)
![ARCA 203015W thumbnail image 9](https://www.fibox.com/hs-fs/hubfs/assets/8120140_ARCA_203015W-2023_3_72dpi.jpg?length=52&name=8120140_ARCA_203015W-2023_3_72dpi.jpg)
![ARCA 203015W thumbnail image 10](https://www.fibox.com/hs-fs/hubfs/assets/8120140_ARCA_203015W-2023_4_72dpi.jpg?length=52&name=8120140_ARCA_203015W-2023_4_72dpi.jpg)
![ARCA 203015W thumbnail image 1](https://www.fibox.com/hs-fs/hubfs/assets/8120140_ARCA_203015W-2023%20360_ANIMA_SMALL.gif?length=52&name=8120140_ARCA_203015W-2023%20360_ANIMA_SMALL.gif)
ARCA IEC / ARCA 203015 / ARCA 203015W
ARCA 203015W 8120140
UL Code : UL508A
Dimensions 200 x 300 x 150
Dimensions 7.87 x 11.81 x 5.91
Including : Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.
- PC : IP65; IK08
Technical data
Product nr : 8120140
Description : Cabinet, PC
Remarks : Grey cover with window, 1-point locking, hinges on the short side
Package : 1
Unit : Piece
EAN : 6418074080110
SSTL number : 3423216
Electric No. Denmark : 8212091964
Electric No. Sweden : 2500137
ETIM : EC000261
Height (mm) : 200
Width (mm) : 300
Depth (mm) : 150
Height (inch) : 7.87
Width (inch) : 11.81
Depth (inch) : 5.91
Material : Polycarbonate
Base colour : RAL_7035
Cover colour : Clear transparent
Gasket material : Polyurethane
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Standards EN_62208:2011__IEC_62208:2011, EN_61439-1:2011__IEC_61439-1:2011, EN_61439-4:2013__IEC_61439-4:2012
Ingress Protection (EN 60529): IP65
Impact Resistance (EN 62262): IK08
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 5VA
Glow Wire Test (IEC 60695): 960C
ARCA IEC / ARCA 203015 / ARCA 203015W
Dimensional Drawings
CAD Files
Please note, that we need you permission in order for you to view the CAD files.
Certificates and Declarations
Catalogues
Contact
Accessories
ARCA 203015W
![Fibox Fibox](https://www.fibox.com/hs-fs/hubfs/fibox-2021/logo/eclosing/png/fibox_enclosing-logo-2021-rgb-07.png?width=250&name=fibox_enclosing-logo-2021-rgb-07.png)
![8120140_ARCA_203015W-2023_1_72dpi](https://www.fibox.com/hs-fs/hubfs/assets/8120140_ARCA_203015W-2023_1_72dpi.jpg?width=200&name=8120140_ARCA_203015W-2023_1_72dpi.jpg)
Sample image
Order symbol : ARCA 203015W
Product nr : 8120140
UL Code : UL508A
Description : Cabinet, PC
Remarks : Grey cover with window, 1-point locking, hinges on the short side
EAN : 6418074080110
El. number :
- Finland : 3423216
- Denmark : 8212091964
- Sweden : 2500137
Including : Cabinet base. door with PUR gasket. mounting plate. screws for mounting plate. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.
![ARCA2030](https://www.fibox.com/hubfs/assets/ARCA2030.gif)
Dimensions : | Height | Width | Depth |
---|---|---|---|
mm : | 200 | 300 | 150 |
inch : | 7.87 | 11.81 | 5.91 |
Materials : | |
---|---|
Material : | Polycarbonate |
Base colour : | RAL_7035 |
Cover colour : | Clear transparent |
Gasket material : | Polyurethane |
Temperatures : | |
---|---|
Temperature °C (continuous) : | -40 … 80 |
Temperature °F (continuous) : | -40 … 175 |
Accessories : | |
---|---|
MPMP ARCA 3020 | Mounting plate multiperforated (250x150x2 mm - ⌀3.6 mm) |
IDS ARCA 2030 | Inner door set |
MPP ARCA 2030 | Mounting plate perforated (250x150x2 mm - 26x11 mm) |
MPS ARCA 3020 |
Mounting plate (250x150x2 mm)
(250 x 150 x 2) |
DRS ARCA 203015 |
DIN rail frame set
(285 x 185 x 35) |
RCS ARCA 2030 | Rain canopy set for size 2030 |
PMK ARCA 30 |
PoleMounting kit, for pole ⌀100-300mm
(385 x 285 x 35) |
MPX ARCA 3020 |
Mounting plate (250x150 mm)
(250 x 150 x 15) |
Ratings : | |
---|---|
Ingress protection (EN 60529): | IP65; |
Impact Resistance (EN 62262): | IK08; |
electrical_insulation : | Totally insulated |
Halogen free (DIN/VDE 0472, Part 815) : | Yes |
UV resistance : | UL 746C |
Flammability Rating : | UL 94 5VA |
Glow Wire Test (IEC 695-2-1) °C : | 960C |
Certificates : | |
---|---|
Certificate FI 40467 |
