ALN 314018 UP
7831460
ALU aluminium enclosure range is designed to house DIN-rail mounted terminal block and various types of sensors.
Dimensions - 310 x 403 x 180
Description : Enclosure. Aluminium
EAN : 6418074032003
SSTL number : 3424999
ETIM : EC000261
Ingress Protection : IP66/67 | IK08
Height (mm) : 310
Width (mm) : 403
Depth (mm) : 180
Height (inch) : 12.2
Width (inch) : 15.87
Depth (inch) : 7.09
Material : Aluminum
Gasket material : EPDM
Temperature °C : -50 … 80
Temperature °F : -60 … 175
Ingress Protection (EN 60529): IP66/67
Impact Resistance (EN 62262): IK08
CAD Drawings
Please note, that we need you permission in order for you to view the CAD files.
ALN 314018 UP

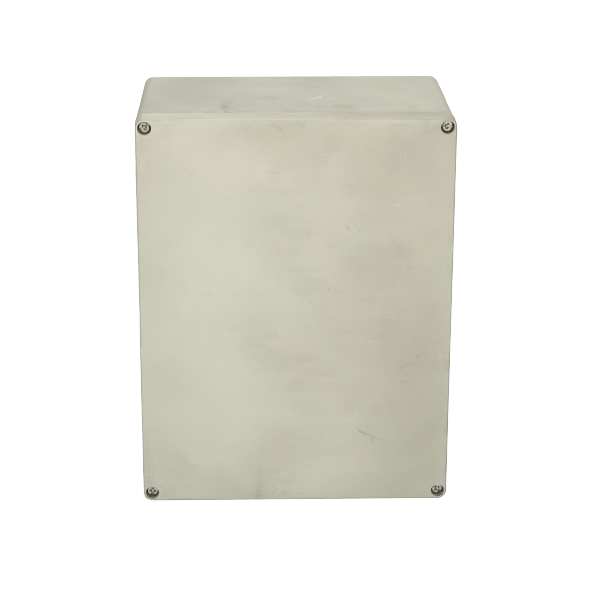

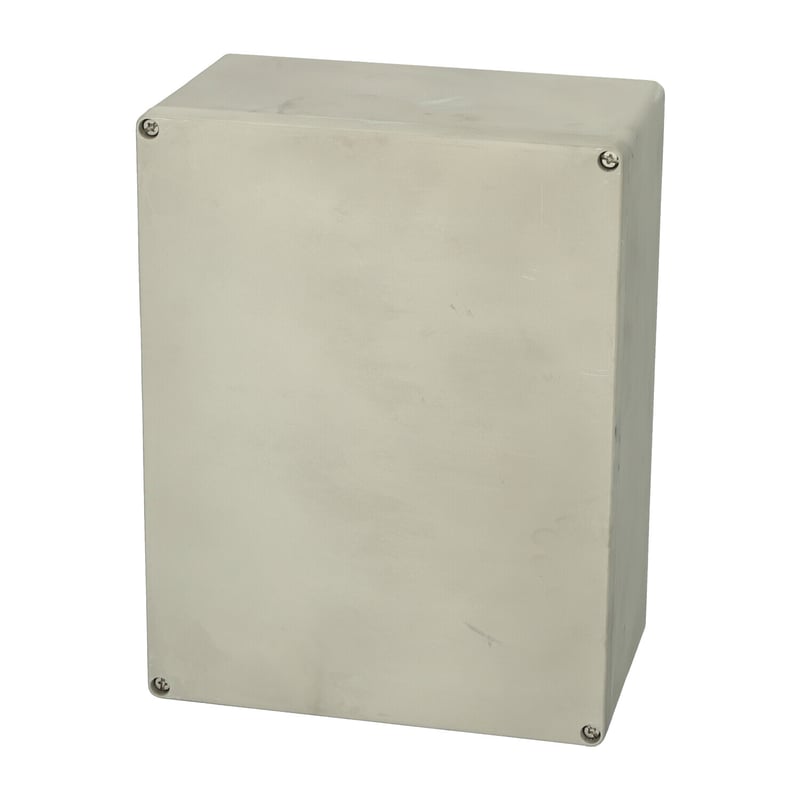

Sample image
Order symbol : ALN 314018 UP
Product nr : 7831460
Description : Enclosure. Aluminium
EAN : 6418074032003
El. number :
- Finland : 3424999

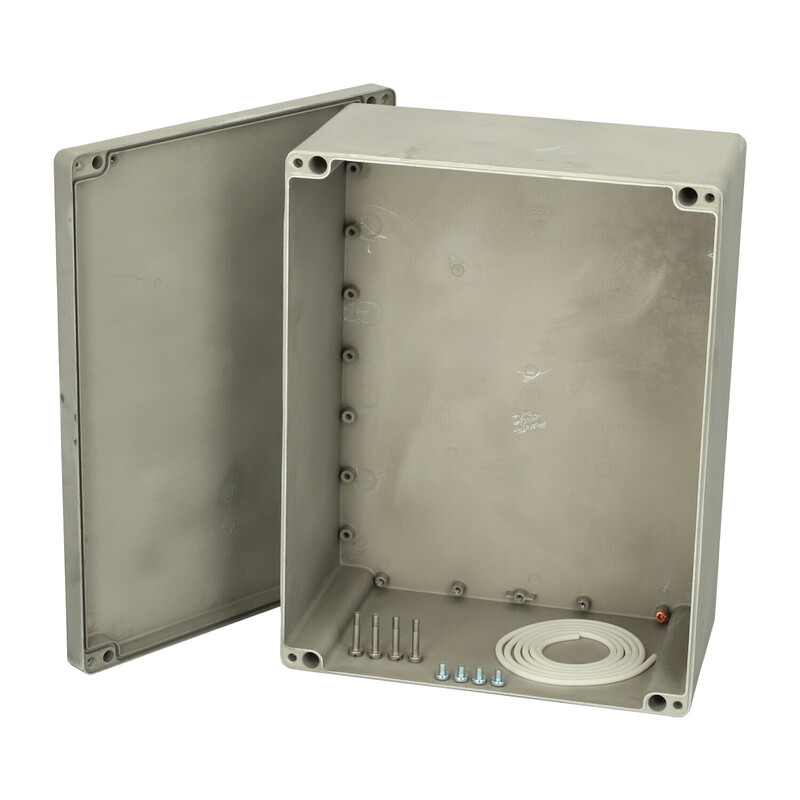

Including : Base with screws for mounting plate/DIN-rail, cover, silicone gasket, stainless steel cover screws.
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 310 | 403 | 180 |
| inch : | 12.2 | 15.87 | 7.09 |
| Materials : | |
|---|---|
| Material : | Aluminum |
| Gasket material : | EPDM |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -50 … 80 |
| Temperature °F (continuous) : | -60 … 175 |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP66/67; |
| Impact Resistance (EN 62262): | IK08; |
| electrical_insulation : | Not insulated |
| UV resistance : | - |
