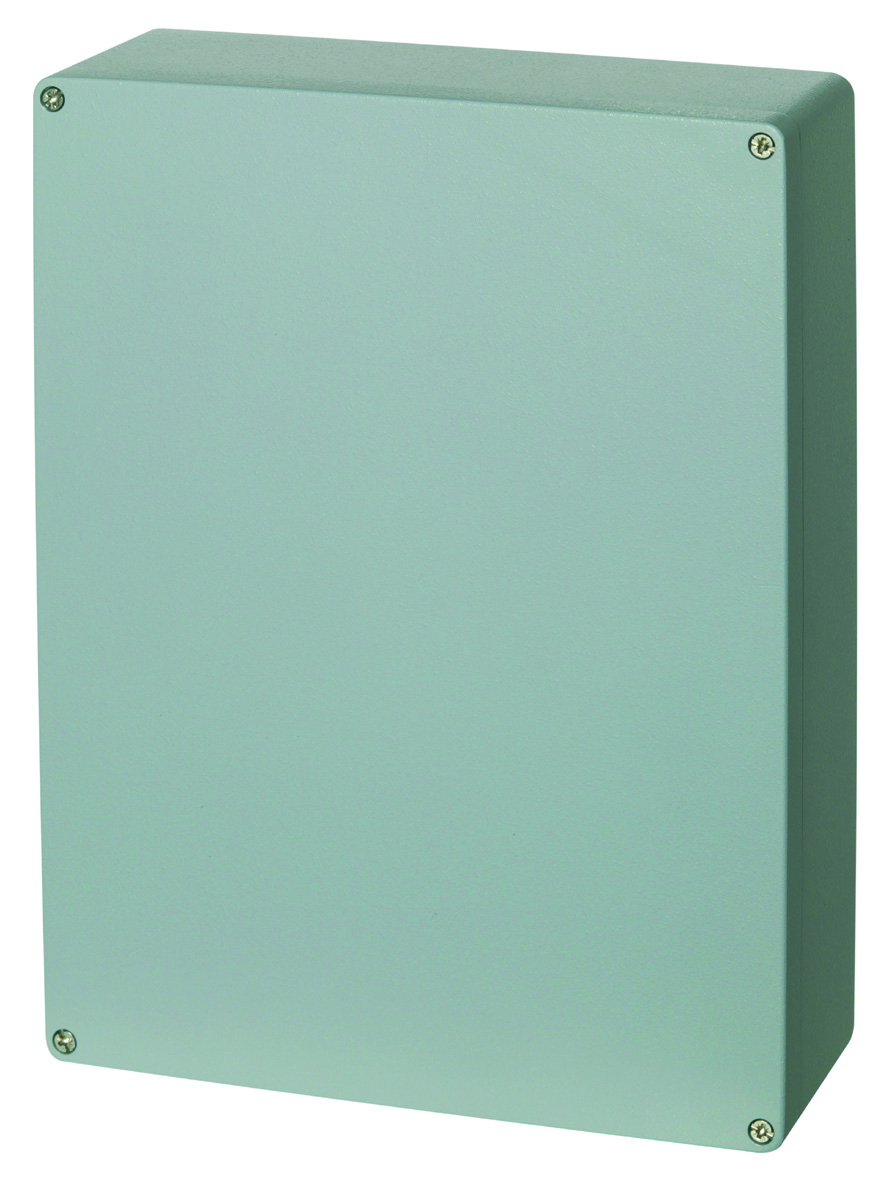

AL_314011
Next slide
AL_314011

ALUN / ALU 3140 / ALN 314018

ALN 314018 7811460

UL Code: 7811462

UL Name: ALN UL 314018

Dimensions 310 x 403 x 180.

Including: Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.

  • PC: IP66; IP67; IP68; IK08; EN 62208:2011. IEC 62208:2011,EN 61439-1:2011. IEC 61439-1:2011,EN 61439-4:2013. IEC 61439-4:2012
Technical data
Product:

Product nr: 7811460

Description: Aluminum enclosure

Remarks: Aluminium

Package: 1

Unit: Piece

EAN: 6418074016256

SSTL number: 3420006

Electric No. Denmark: 8212045842

Electric No. Sweden: 2500928

ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions:

Height (mm): 310

Width (mm): 403

Depth (mm): 180

Height (inch): 12.2

Width (inch): 15.87

Depth (inch): 7.09

Materials:

Material: Aluminum

Base colour: RAL 7036

Cover colour: RAL 7036

Gasket material: Polyurethane

Temperatures:

Temperature °C (short term): -50 … 120

Temperature °C (continuous): -50 … 80

Temperature °F (short term): -60 … 285

Temperature °F (continuous): -60 … 175

Ratings:

Ingress Protection (EN 60529): IP66; IP67; IP68;

Impact Resistance (EN 62262): IK08;

Electrical insulation: Not insulated

Halogen free (DIN/VDE 0472, Part 815): 1

UV resistance: -

Flammability Rating:

Glow Wire Test (IEC 695-2-1): C

NEMA Class:

Product is connected to following catalogs:

ALUN / ALU 3140 / ALN 314018

CAD files
Certificates and Declarations
Catalogues
Contact

ALN 314018

Fibox
AL_314011

Sample image

Order symbol: ALN 314018

Product nbr: 7811460

UL Code: 7811462

UL Name: ALN UL 314018

Description: Aluminum enclosure

Remarks: Aluminium

EAN: 6418074016256

El. number:

  • Finland: 3420006
  • Denmark: 8212045842
  • Sweden: 2500928

Including: Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.

ALN314011-18combi
Dimensions: Height Width Depth
mm: 310 403 180
inch: 12.2 15.87 7.09
Materials:
Material: Aluminum
Base colour: RAL 7036
Cover colour: RAL 7036
Gasket material: Polyurethane
Temperatures:
Temperature °C (short term):: -50 … 120
Temperature °C (continuous): -50 … 80
Temperature °F (short term): -60 … 285
Temperature °F (continuous): -60 … 175
Accessories:
ARH 40 DIN-35 Mounting rail. for enclosures:
(383 x 35 x 1)
AM 3140 Back Panel. for enclosures:
(294 x 387 x 1)
MRS 28541 Mounting foot kit (2 pcs). for enclosures:
(15 x 50 x 1)
Rating:
Ingress protection (EN 60529): IP66; IP67; IP68;
Impact Resistance (EN 62262): IK08;
Electrical insulation: Not insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance: -
Flammability Rating:
Glow Wire Test (IEC 695-2-1) °C: C
NEMA Class
Certificates:
SGSFIMKO_ALU
