ALN 233311
7811380
ALU aluminium enclosure range is designed to house DIN-rail mounted terminal block and various types of sensors.
Dimensions - 230 x 330 x 110
Description : Enclosure, aluminium
Remarks : Aluminium
Package : 1
Unit : Piece
EAN : 6418074016195
SSTL number : 3420038
Electric No. Denmark : 8212045787
Electric No. Sweden : 2500923
ETIM : EC000261
Ingress Protection : IP66 | IP67 | IP68 | IK08
Height (mm) : 230
Width (mm) : 330
Depth (mm) : 110
Height (inch) : 9.06
Width (inch) : 12.99
Depth (inch) : 4.33
Material : Aluminum
Base colour : RAL_7001
Cover colour : RAL 7001
Gasket material : Polyurethane
Temperature °C : -50 … 80
Temperature °F : -60 … 175
Standards : EN_62208:2011__IEC_62208:2011, EN_61439-1:2011__IEC_61439-1:2011, EN_61439-4:2013__IEC_61439-4:2012
Ingress Protection (EN 60529): IP66IP67IP68
Impact Resistance (EN 62262): IK08
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
UL Type : 1, 4, 4X, 6, 12, 13
CAD Drawings
- ALN233309B.dwg
- ALN233302C.dwg
- ALN233309B.dxf
- ALN233302C.dxf
- FIBOX ALN_233309B.stp
- FIBOX ALN_233302C.stp
- FIBOX ALN_233309B.x_t
- FIBOX ALN_233302C.x_t
- FIBOX ALN_233309B.zip
- FIBOX ALN_233302C.zip
- 7811380_FIBOX_ALN233311.step
Please note, that we need you permission in order for you to view the CAD files.
ALN 233311

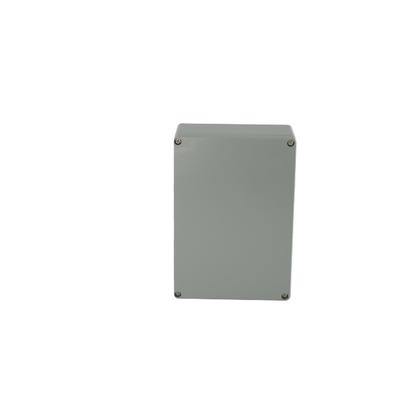

Sample image
Order symbol : ALN 233311
Product nr : 7811380
Description : Enclosure, aluminium
Remarks : Aluminium
EAN : 6418074016195
El. number :
- Finland : 3420038
- Denmark : 8212045787
- Sweden : 2500923
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 230 | 330 | 110 |
| inch : | 9.06 | 12.99 | 4.33 |
| Materials : | |
|---|---|
| Material : | Aluminum |
| Base colour : | RAL_7001 |
| Cover colour : | RAL 7001 |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -50 … 80 |
| Temperature °F (continuous) : | -60 … 175 |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP66; IP67; IP68; |
| Impact Resistance (EN 62262): | IK08; |
| electrical_insulation : | Not insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | UL 746C |
| UL Type | 1, 4, 4X, 6, 12, 13 |
| Certificates : | |
|---|---|
| SGSFIMKO_ALU | |
