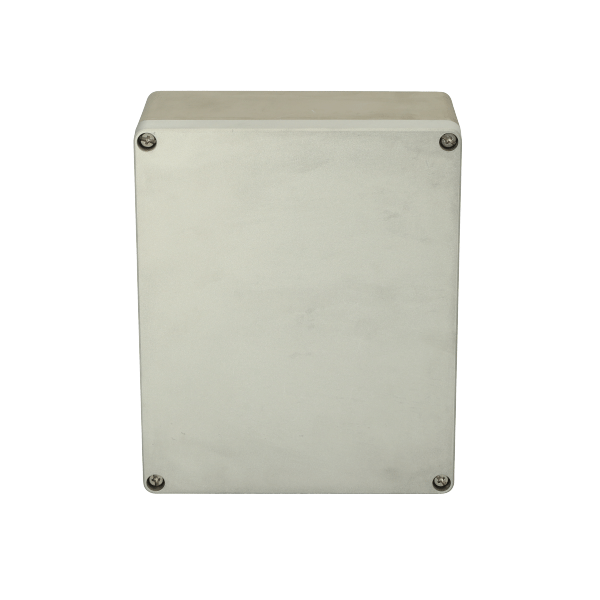

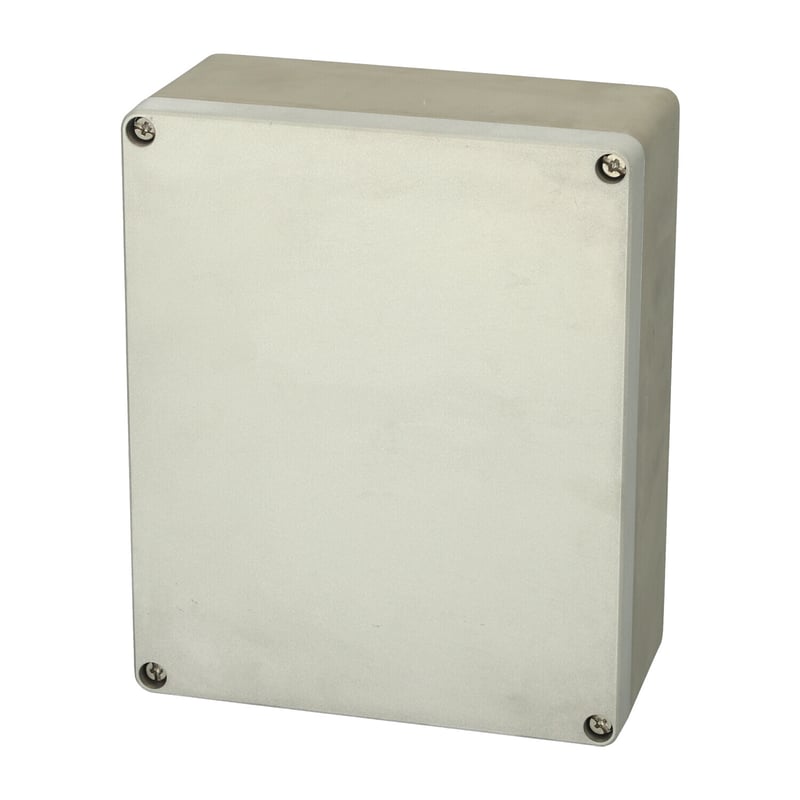

ALN 232811 UP
7831370
ALU aluminium enclosure range is designed to house DIN-rail mounted terminal block and various types of sensors.
Dimensions - 230 x 280 x 110
Description : Enclosure. Aluminium
EAN : 6418074031532
SSTL number : 3425013
ETIM : EC000261
Ingress Protection : IP66/67 | IK08
Height (mm) : 230
Width (mm) : 280
Depth (mm) : 110
Height (inch) : 9.06
Width (inch) : 11.02
Depth (inch) : 4.33
Material : Aluminum
Gasket material : Silicone
Temperature °C : -50 … 80
Temperature °F : -60 … 175
Ingress Protection (EN 60529): IP66/67
Impact Resistance (EN 62262): IK08
CAD Drawings
Please note, that we need you permission in order for you to view the CAD files.
ALN 232811 UP
Sample image
Order symbol : ALN 232811 UP
Product nr : 7831370
Description : Enclosure. Aluminium
EAN : 6418074031532
El. number :
- Finland : 3425013

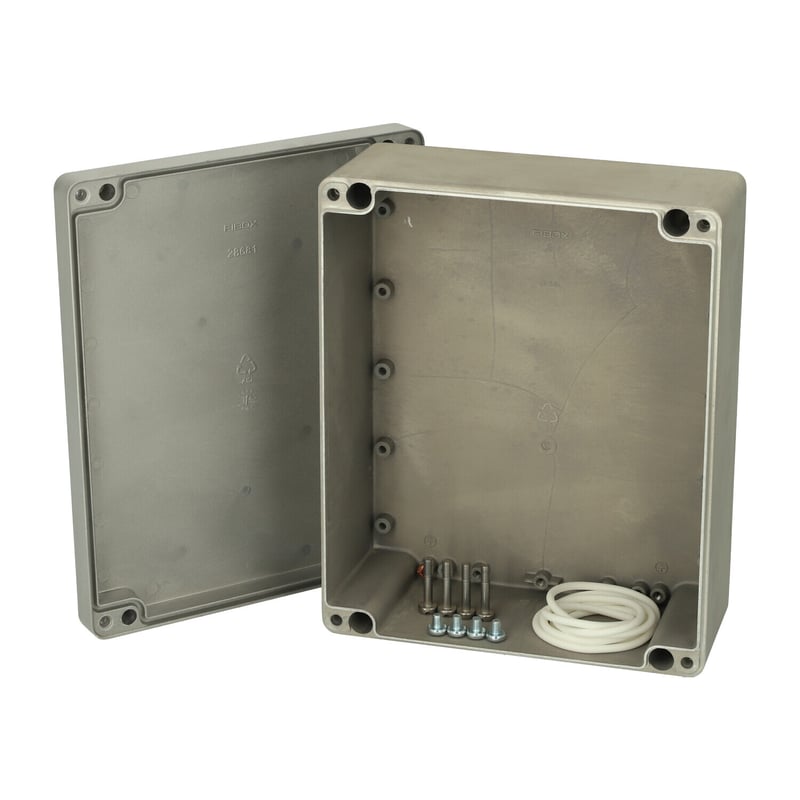

Including : Base with screws for mounting plate/DIN-rail, cover, silicone gasket, stainless steel cover screws.
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 230 | 280 | 110 |
| inch : | 9.06 | 11.02 | 4.33 |
| Materials : | |
|---|---|
| Material : | Aluminum |
| Gasket material : | Silicone |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -50 … 80 |
| Temperature °F (continuous) : | -60 … 175 |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP66/67; |
| Impact Resistance (EN 62262): | IK08; |
| electrical_insulation : | Not insulated |
| UV resistance : | - |
